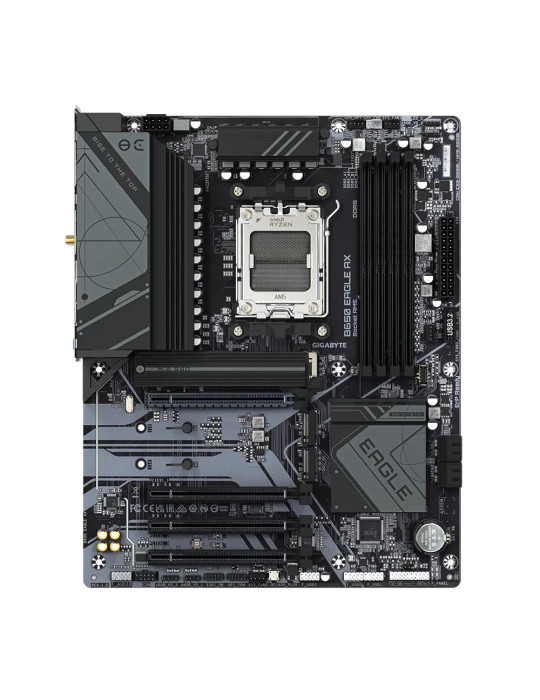

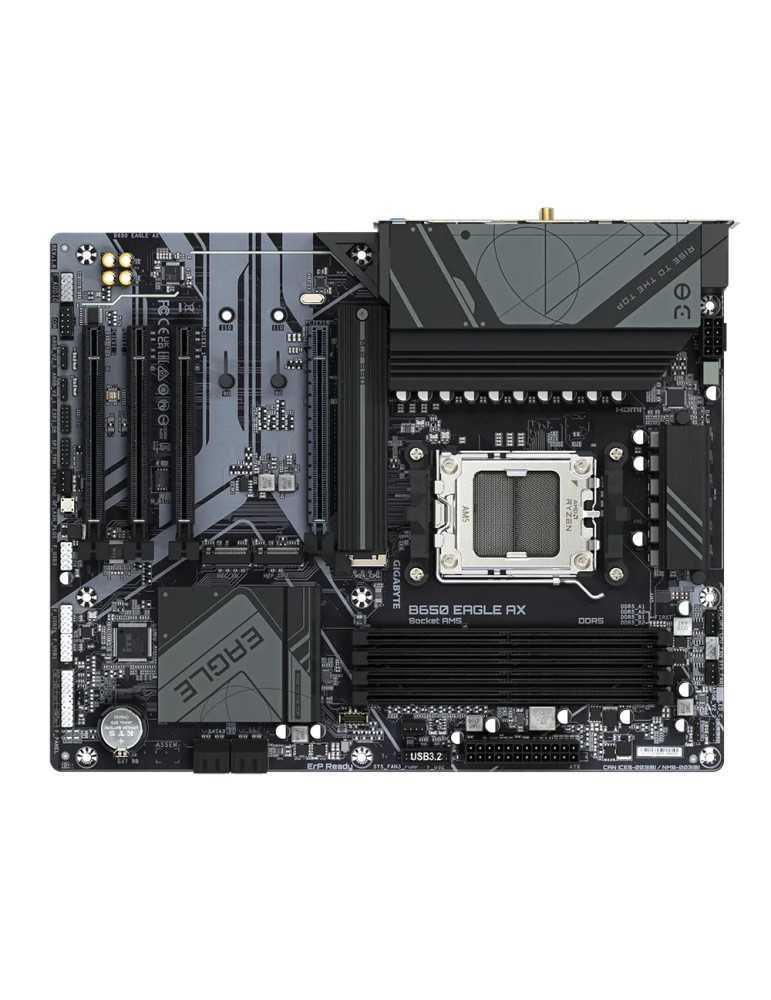

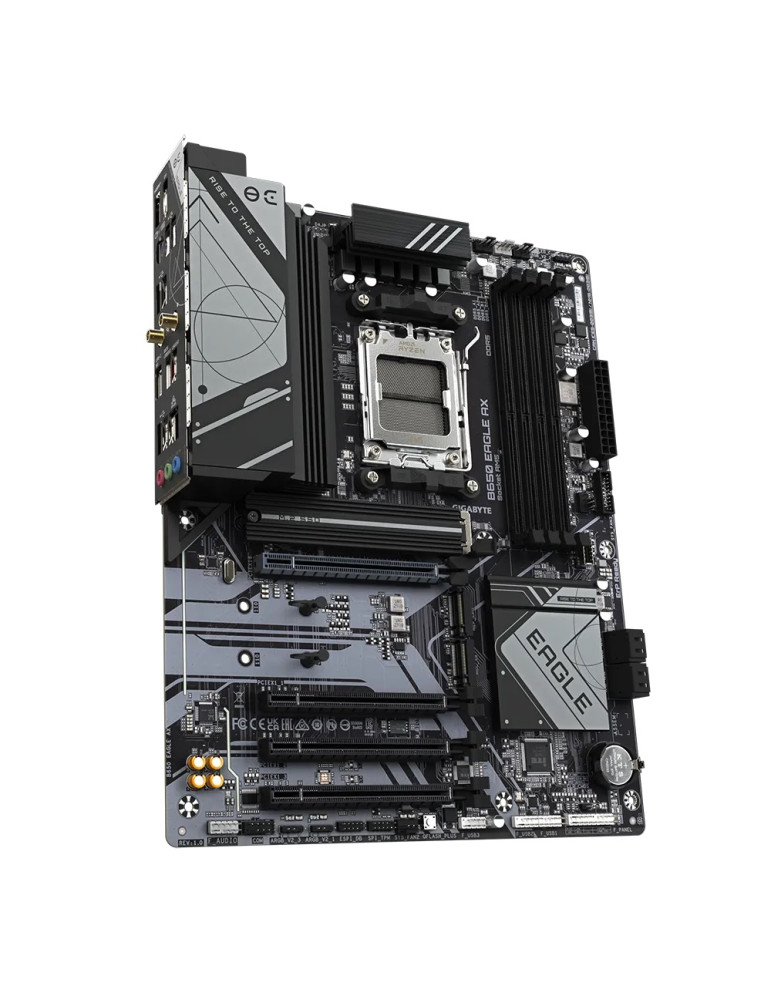

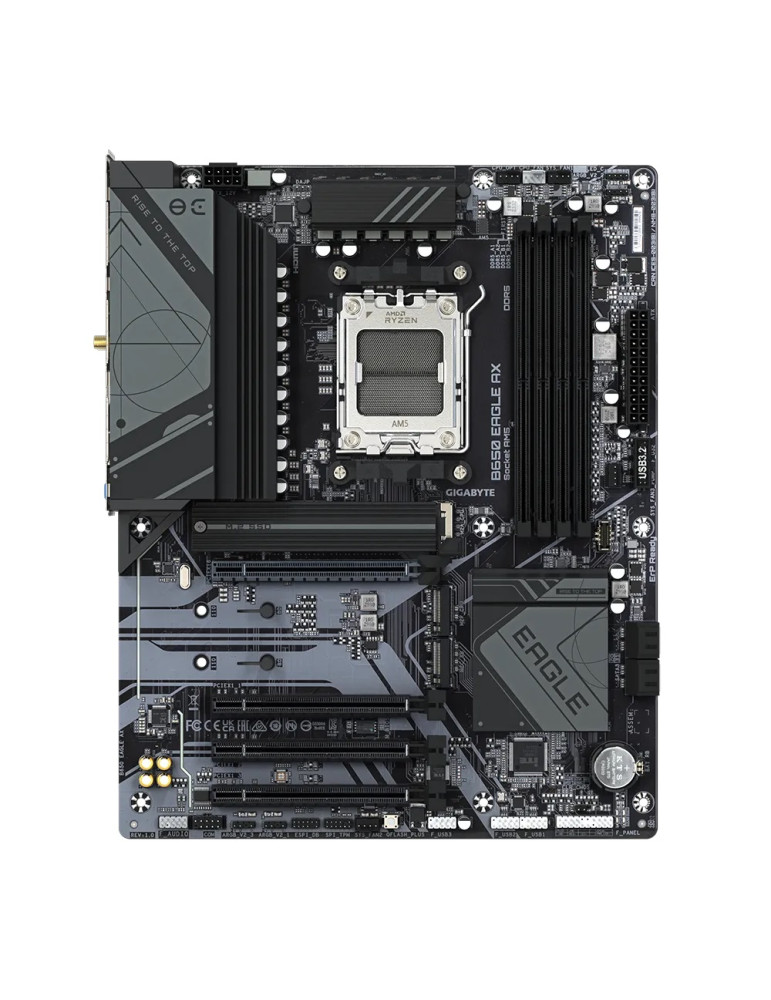

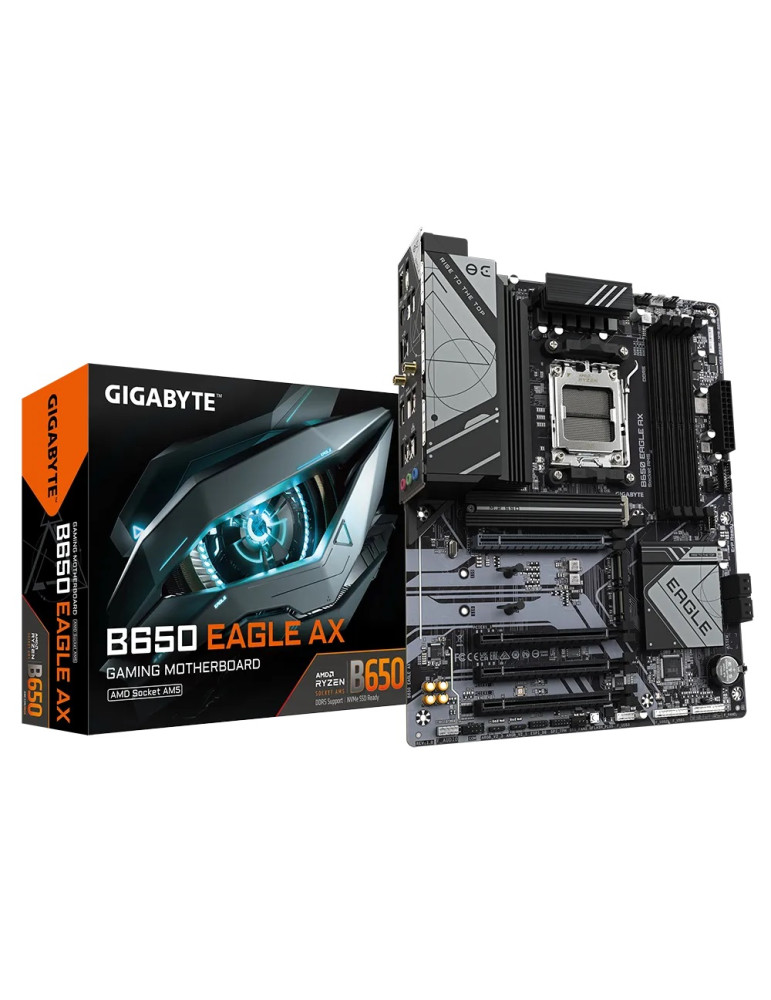

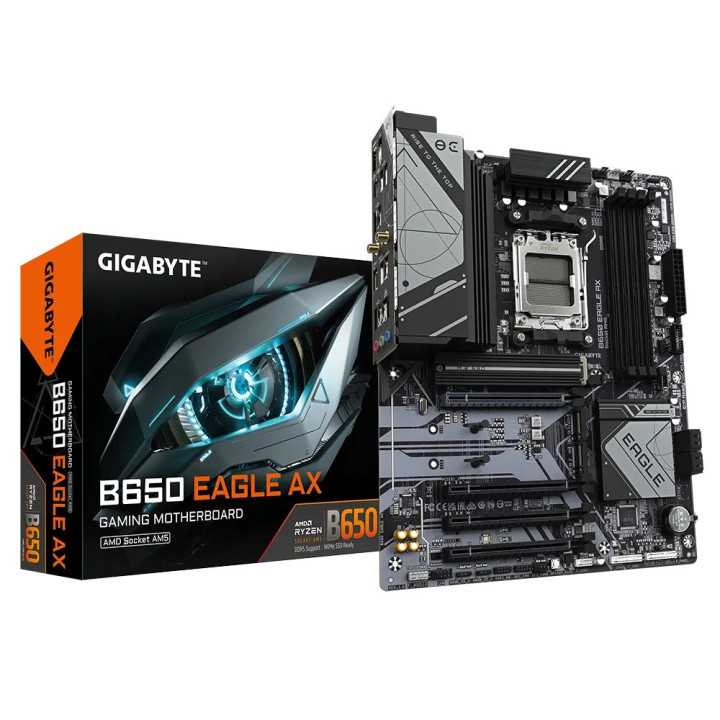

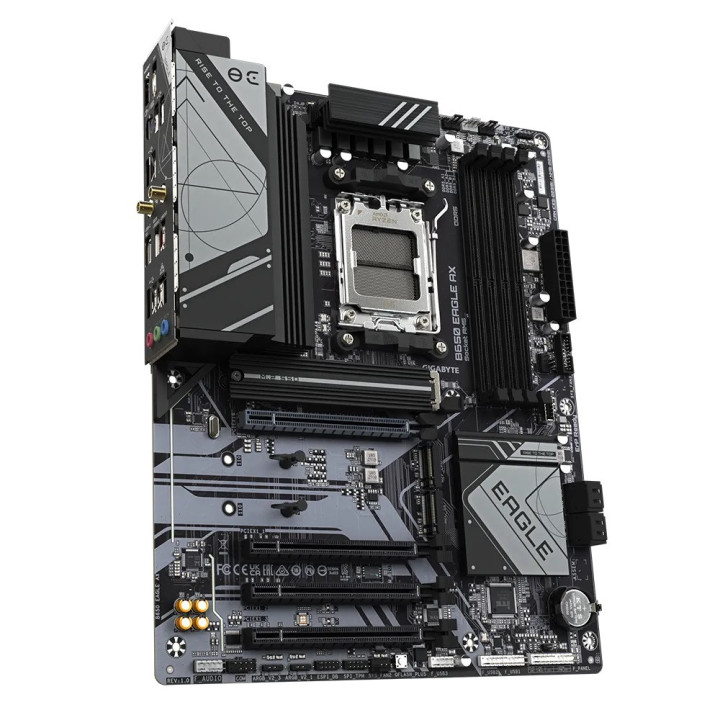

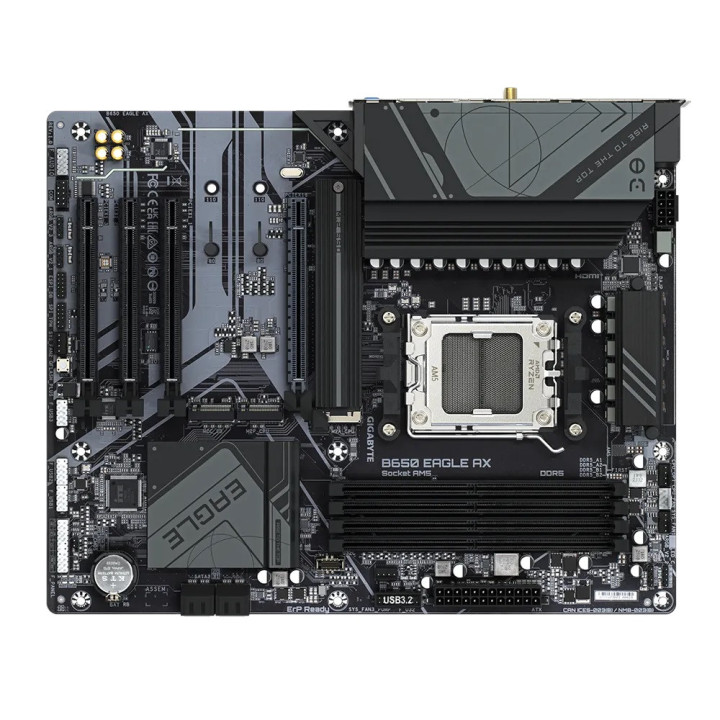

Дънна платка Gigabyte B650 EAGLE AX, AM5, DDR5
Дънна платка Gigabyte B650 EAGLE AX, AM5, DDR5
Дънна платка Gigabyte B650 EAGLE AX, AM5, DDR5
Дънна платка Gigabyte B650 EAGLE AX, AM5, DDR5
Дънна платка Gigabyte B650 EAGLE AX, AM5, DDR5

Дънна платка Gigabyte B650 EAGLE AX, AM5, DDR5

Gigabyte
159,00 €
Цената е с включен ДДС.

GB B650 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16 WiFi

Наличност във външен склад
TBI Bank Купи на лизинг 12 вноски по 14.11 € (27.60 лв.) Калкулатор ›
Банка ДСК Купи на лизинг 12 вноски по 14.11 € (27.60 лв.) Калкулатор ›

CPU's supported AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors
Тип памет Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity); of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme; Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data; rate (speed), and number of DRAM modules, please refer to "Memory Support; List" on GIGABYTE's website for more information.)
Чипсет AMD B650
Видео карта Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset: 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1; * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

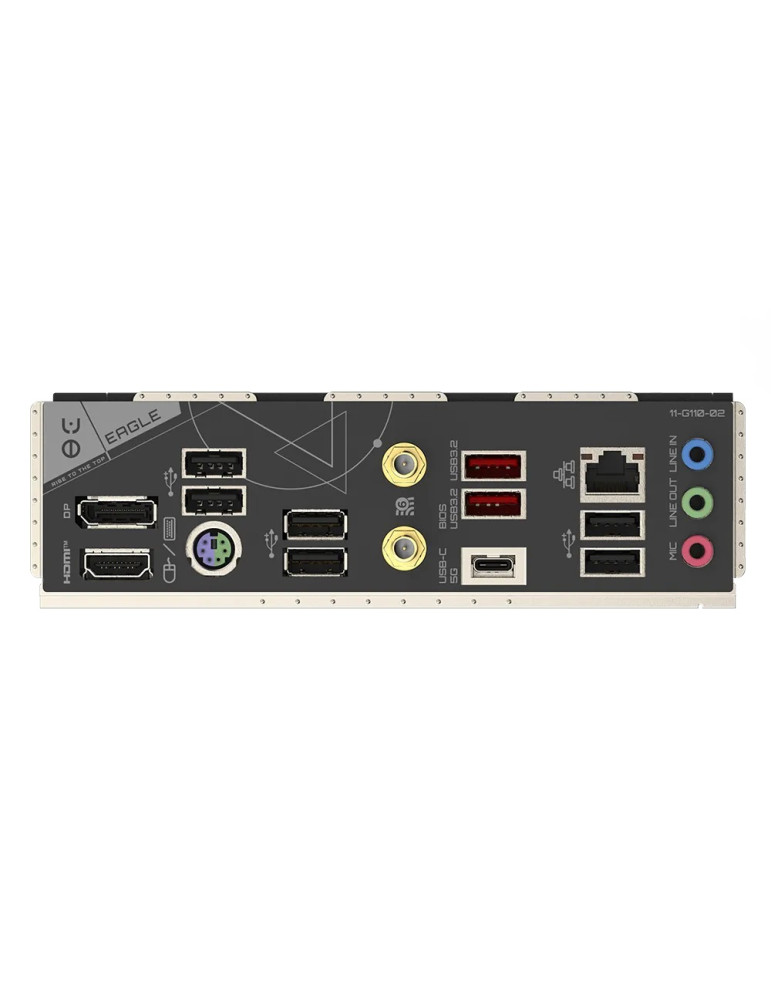

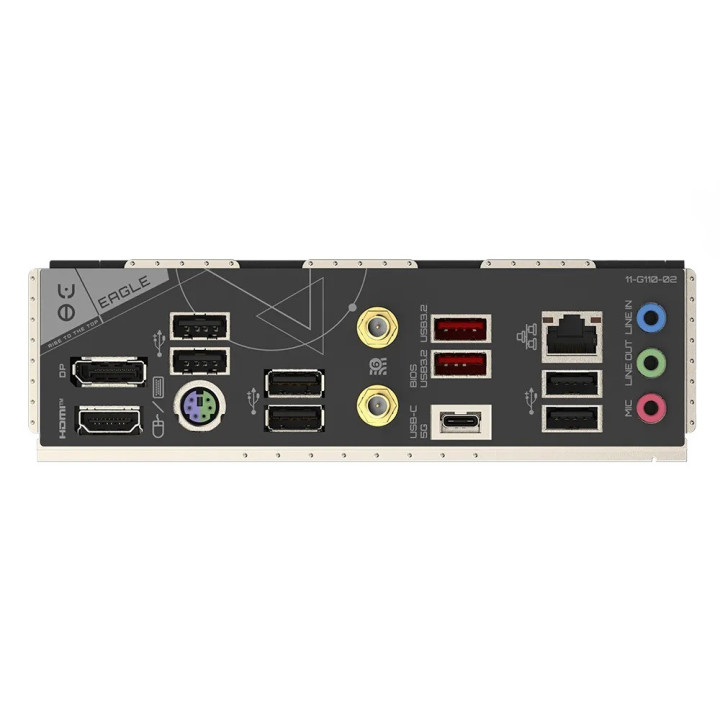

Вх/Изх 1 x DisplayPort; 1 x HDMI port; 1 x PS/2 keyboard/mouse port; 2 x SMA antenna connectors (2T2R); 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 2 x USB 3.2 Gen 2 Type-A ports (red); 6 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Конектори 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 2 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 3 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/; GC-TPM2.0 SPI V2 module only); 1 x Q-Flash Plus button; 1 x serial port header j; 1 x Clear CMOS jumper
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм фактор ATX Form Factor; 30.5cm x 24.4cm
OS Support for Windows 11 64-bit; Support for Windows 10 64-bit
Гаранция 36 Months

  • Марка
  • Референция
    B650 EAGLE AX
  • В наличност
    1 Артикул

  • Производител
    Gigabyte
  • Сокет
    AM5
  • Чипсет
    AMD B650
  • Поддържани процесори
    AMD
  • Поддържана памет на дънна платка
    DDR5
  • Форм фактор
    ATX
  • RAM слотове
    4
  • Гаранция
    36 месеца
  • Портове на лаптоп
    3.5 mm Mono Mic
    3.5 mm Mono Out
    Display Port
    HDMI
    M.2 PCI-E за SSD
    PS/2
    RJ-45 LAN
    USB 2
    USB 3
    USB Type C
