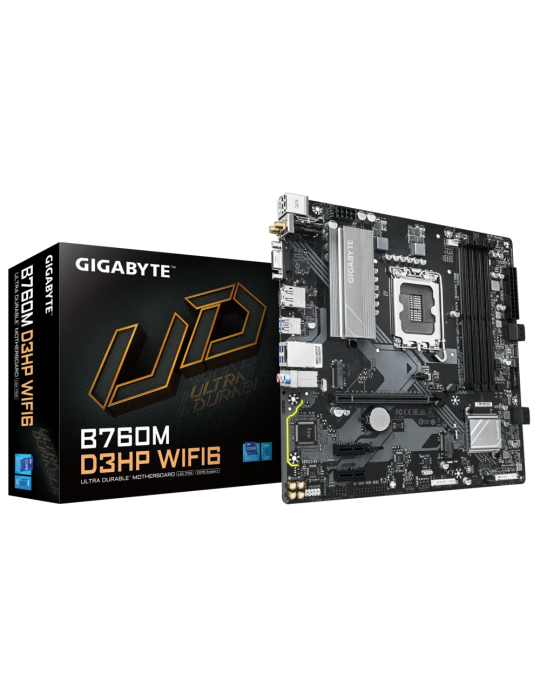

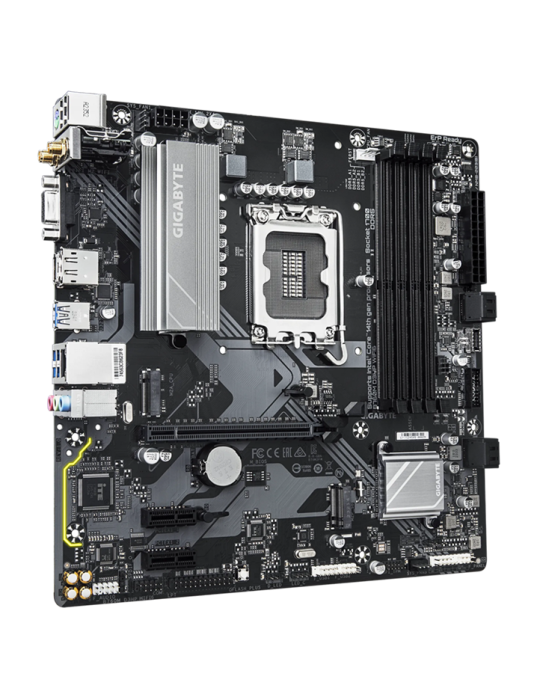

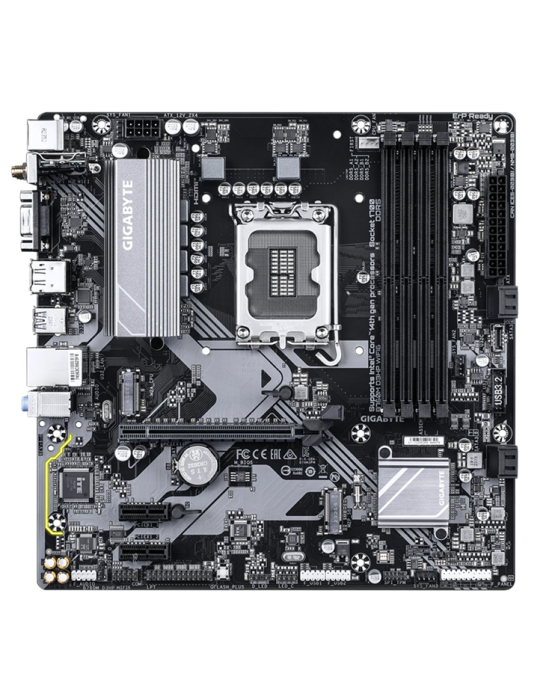

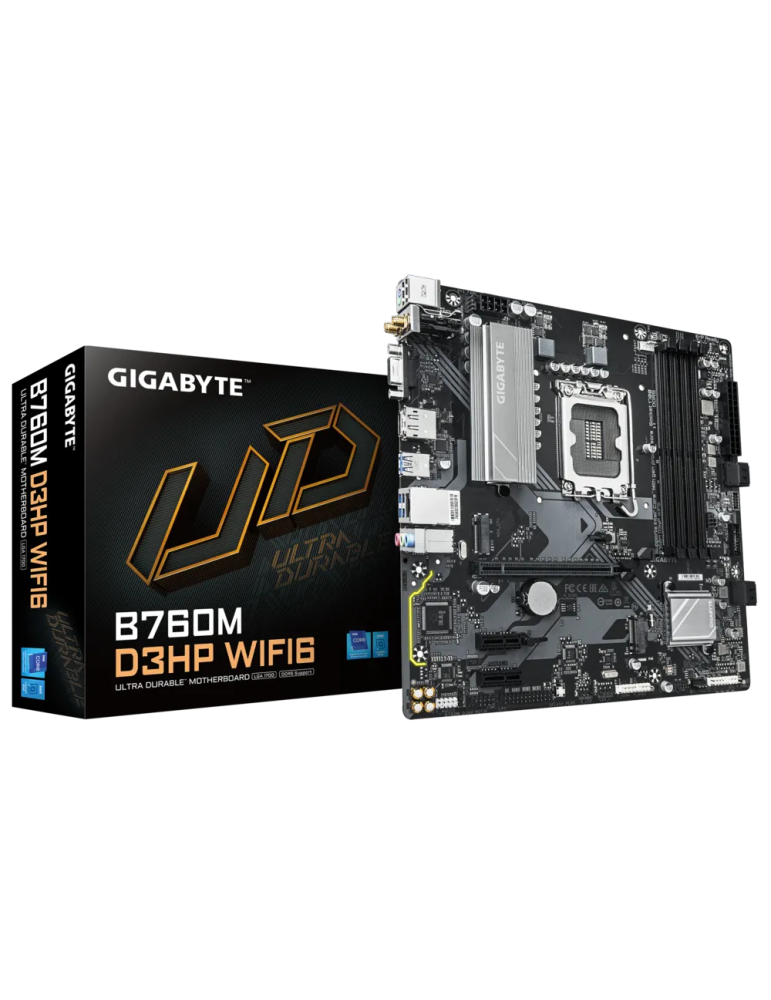

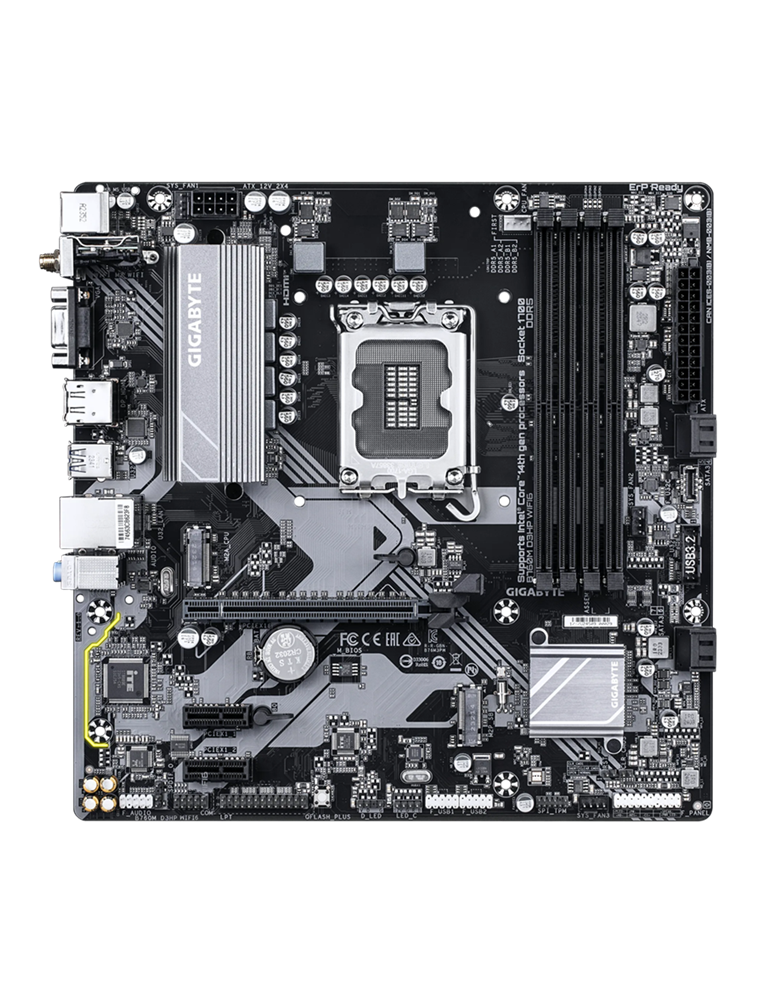

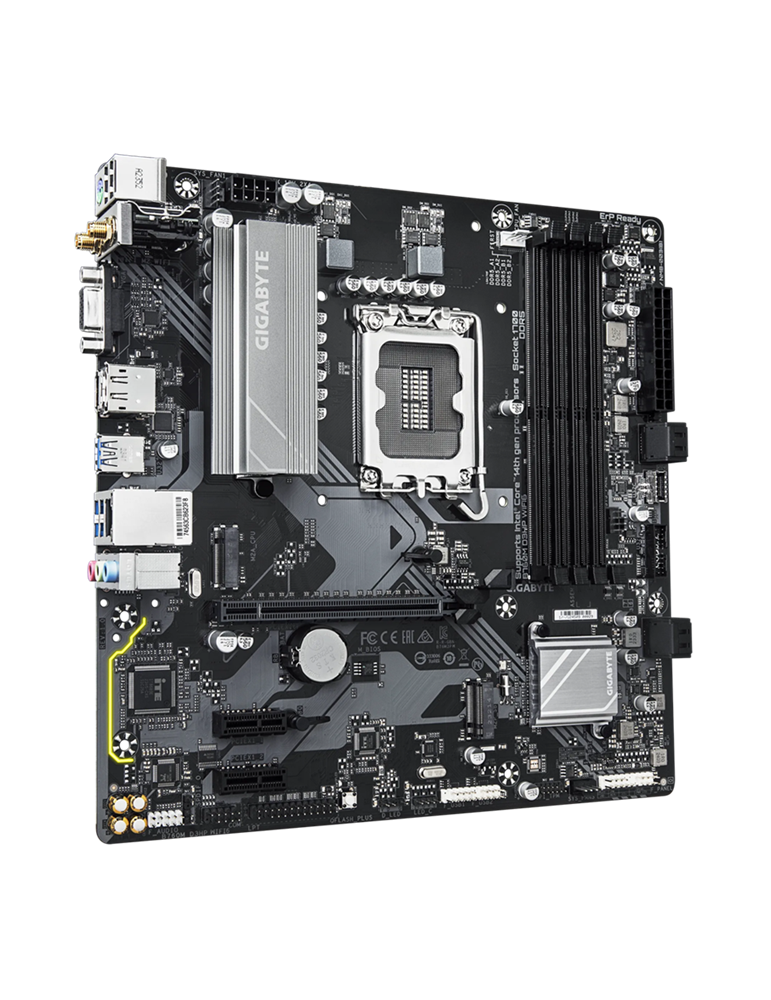

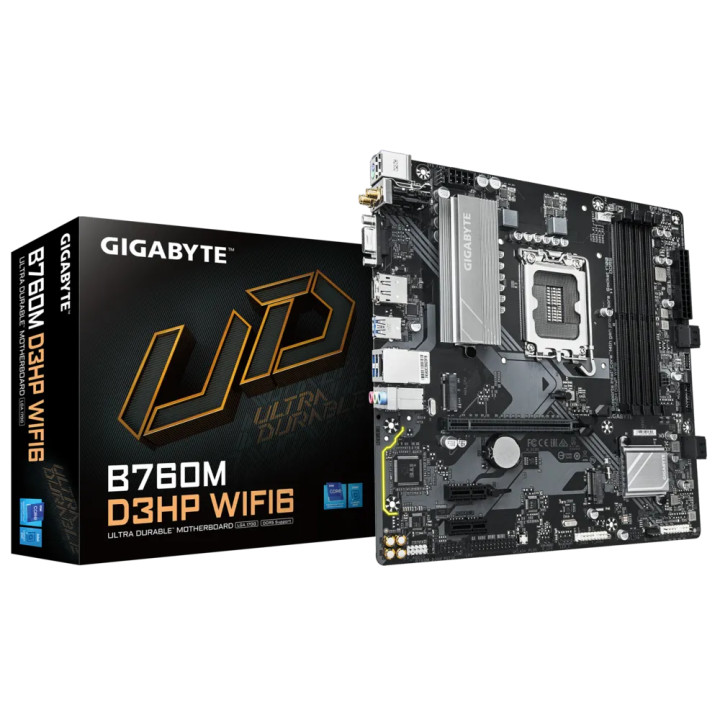

Дънна платка Gigabyte B760M D3HP WIFI6, LGA1700

Дънна платка Gigabyte B760M D3HP WIFI6, LGA1700

Name: Дънна платка Gigabyte B760M D3HP WIFI6, LGA1700
Brand: Gigabyte
SKU: B760M D3HP WIFI6
Price: 122 EUR
Availability: InStock

Gigabyte

122,00 €

Цената е с включен ДДС.

Наличност във външен склад

Банка ДСК Купи на лизинг 12 вноски по 10.83 € (21.18 лв.) Калкулатор ›

USB	Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers
Производител	GIGABYTE
Безжичен	Realtek® Wi-Fi 6 RTL8851BE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless standard;(Actual data rate may vary depending on environment and equipment.)
Тип памет	14th and 13th Generation Intel® Core™ i9/i7 Processors:;- Support for DDR5 5600/5200/4800/4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:;- Support for DDR5 4800/4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
Характеристики	Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash;Support for Q-Flash Plus
CPU's supported	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
Чипсет	Intel® B760 Express Chipset
Bluetooth	5.3
Видео карта	Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time
Разширителни слотове	CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Съхранение	CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Вх/Изх	iTE® I/O Controller Chip

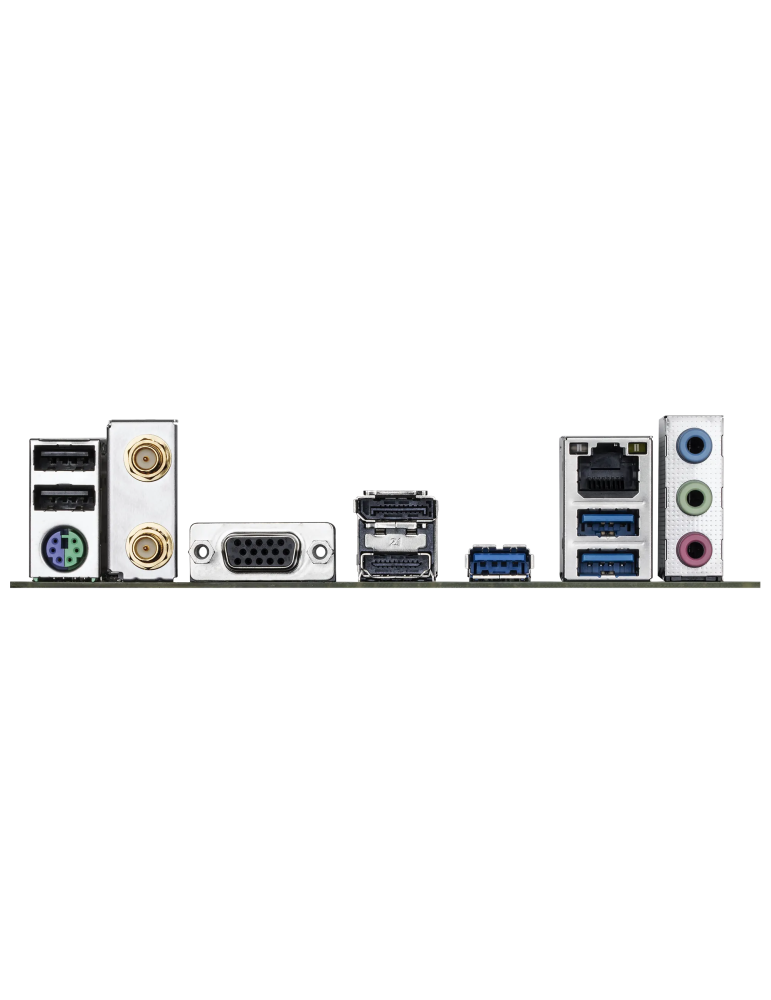

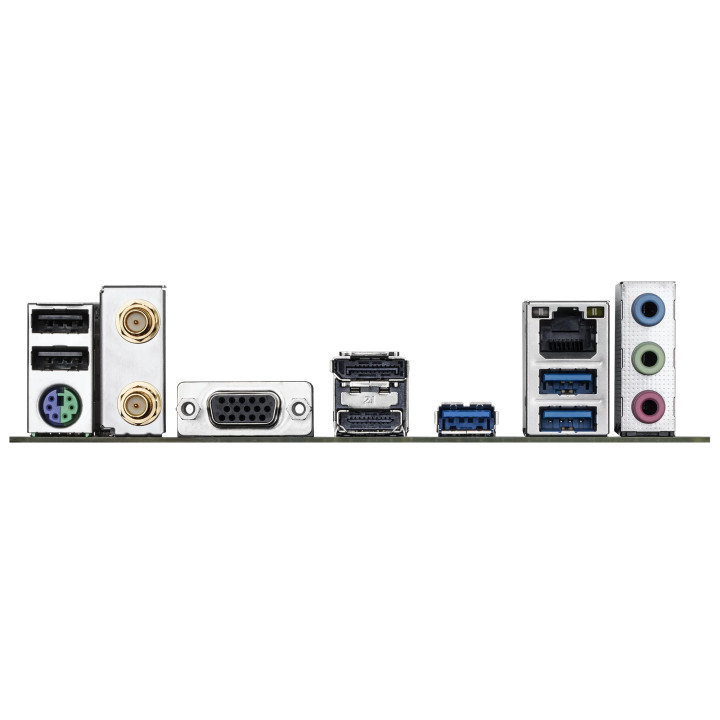

Конектори	1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;1 x addressable LED strip header;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x parallel port header;1 x S/PDIF Out header;1 x Q-Flash Plus button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;2 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;2 x SMA antenna connectors (1T1R);1 x D-Sub port;1 x DisplayPort;1 x HDMI port*;3 x USB 3.2 Gen 1 ports;1 x RJ-45 port;3 x audio jacks
Аудио	Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS	1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм фактор	Micro ATX Form Factor; 24.4cm x 24.4cm
OS	Support for Windows 11 64-bit;Support for Windows 10 64-bit;Norton® Internet Security (OEM version);LAN bandwidth management software
