Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
Digi Power design
9 Power Phase design
Supports 95W Air Cooling

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
Premium Blu-ray Audio support
Supports Surge Protection
ELNA Audio Caps

PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
1 x PCI Express 3.0 x16 Slot (PCIE4: x4 mode)**
4 x PCI Express 2.0 x1 Slots

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)**
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module**

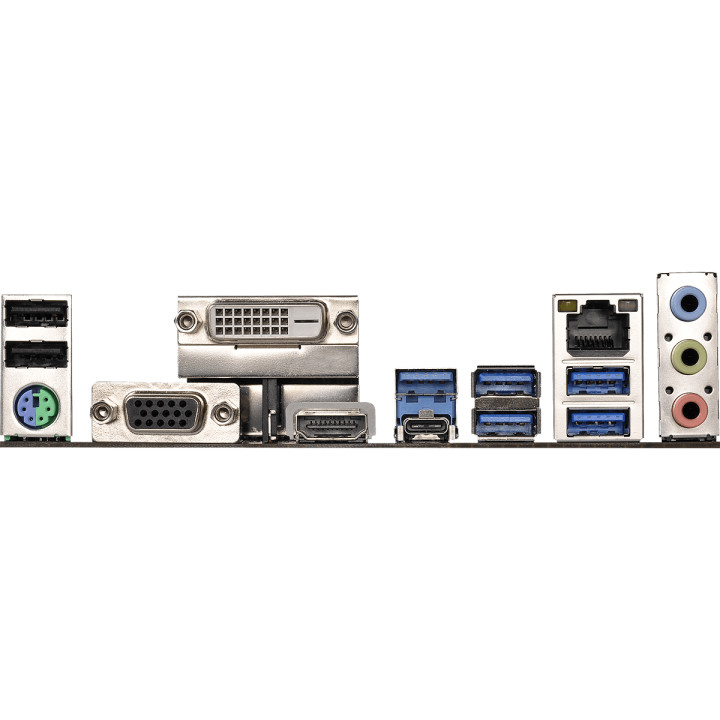

1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.0 Type-C Port (Supports ESD Protection)
5 x USB 3.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
1 x AMD Fan LED Header
1 x CPU Fan Connector (4-pin)**
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection)

ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
