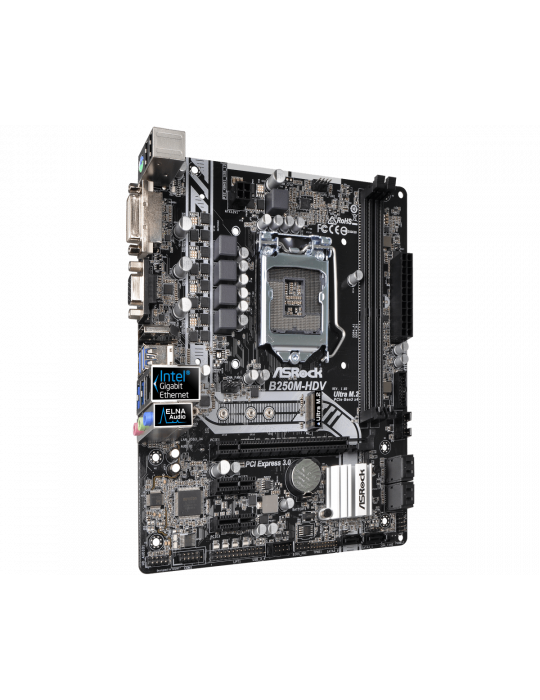

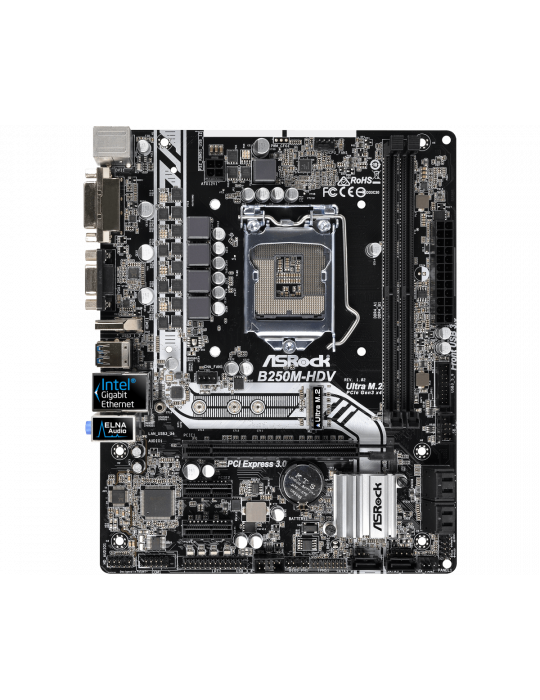

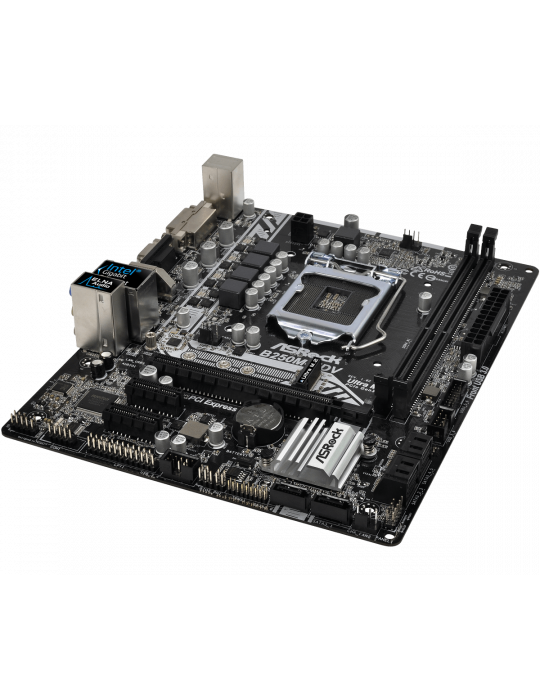

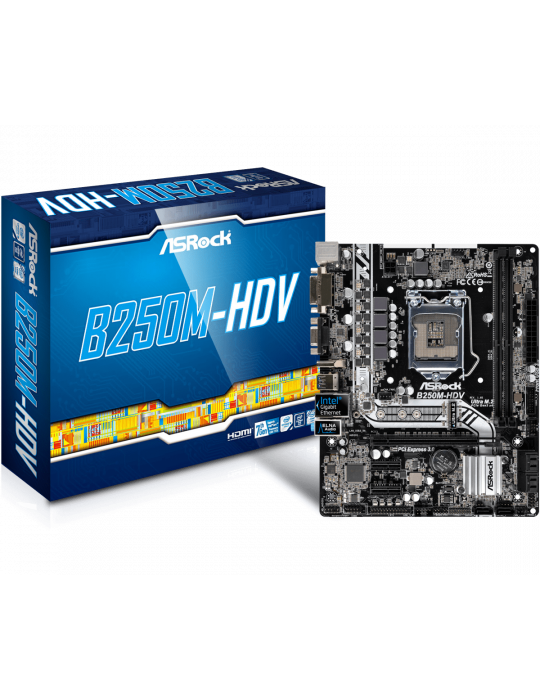

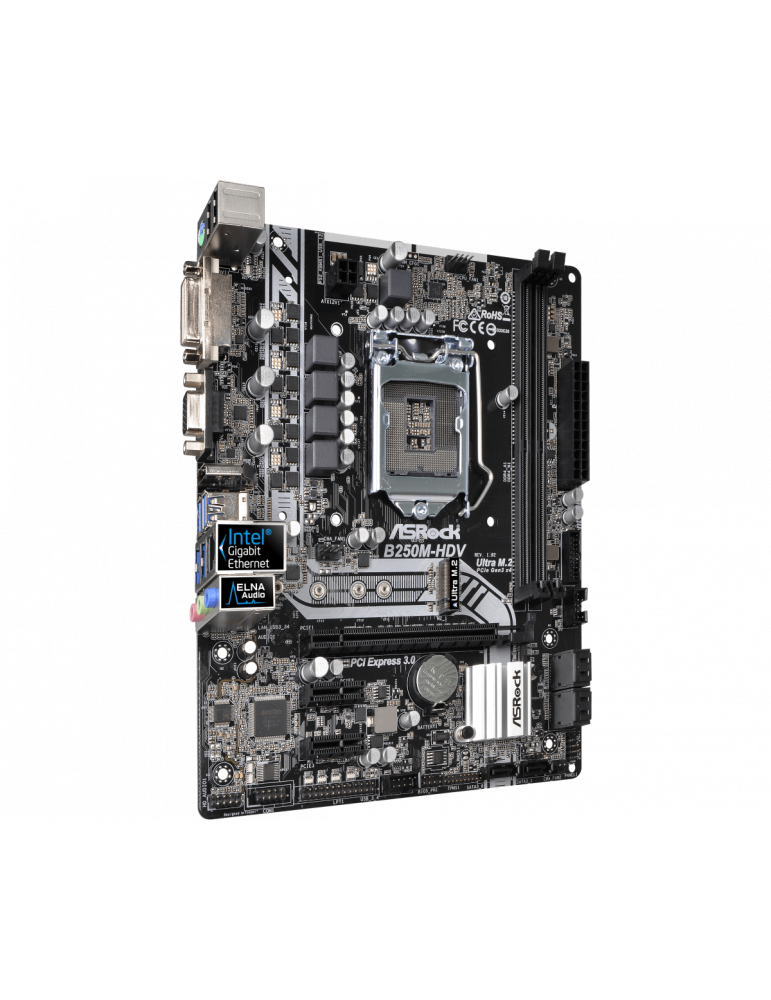

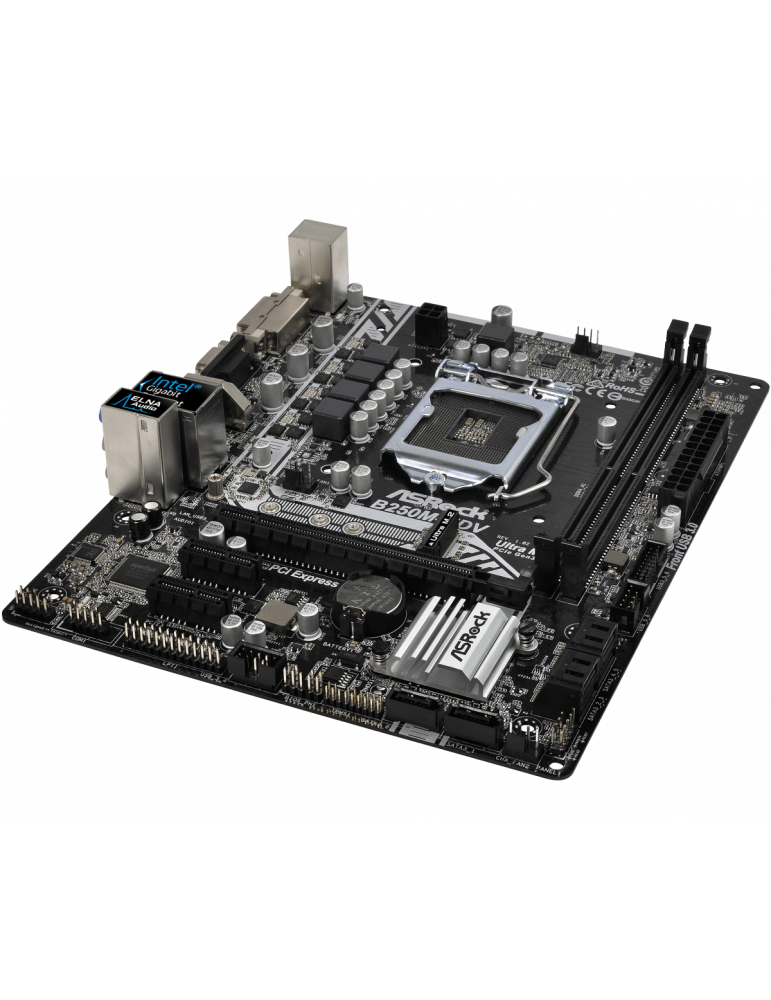

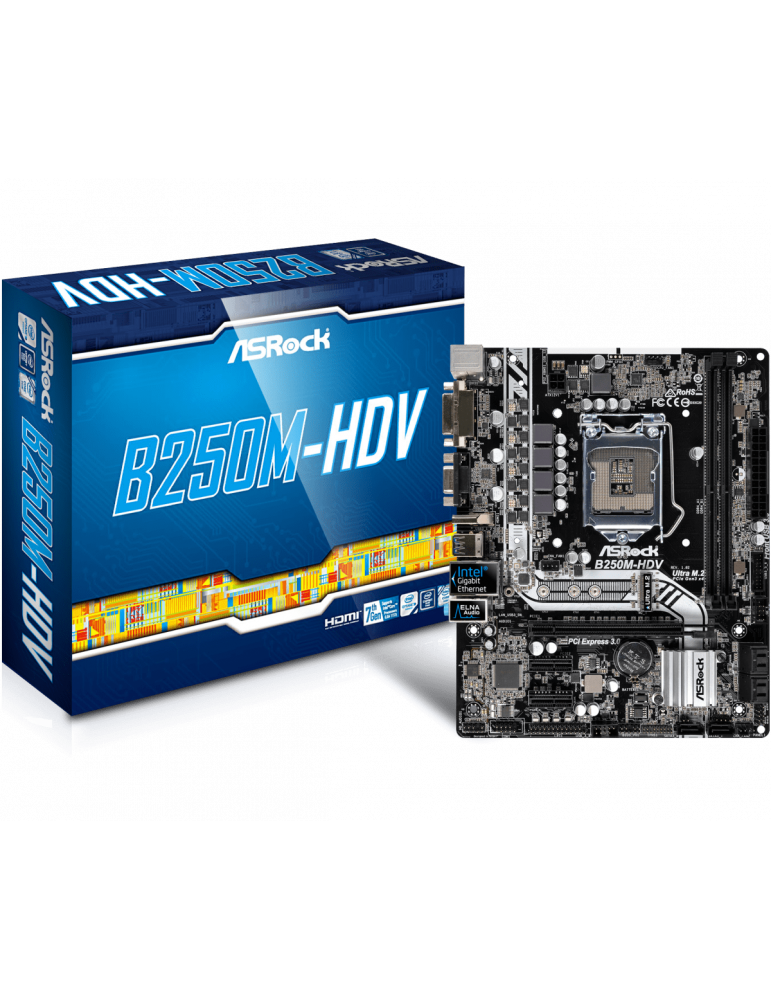

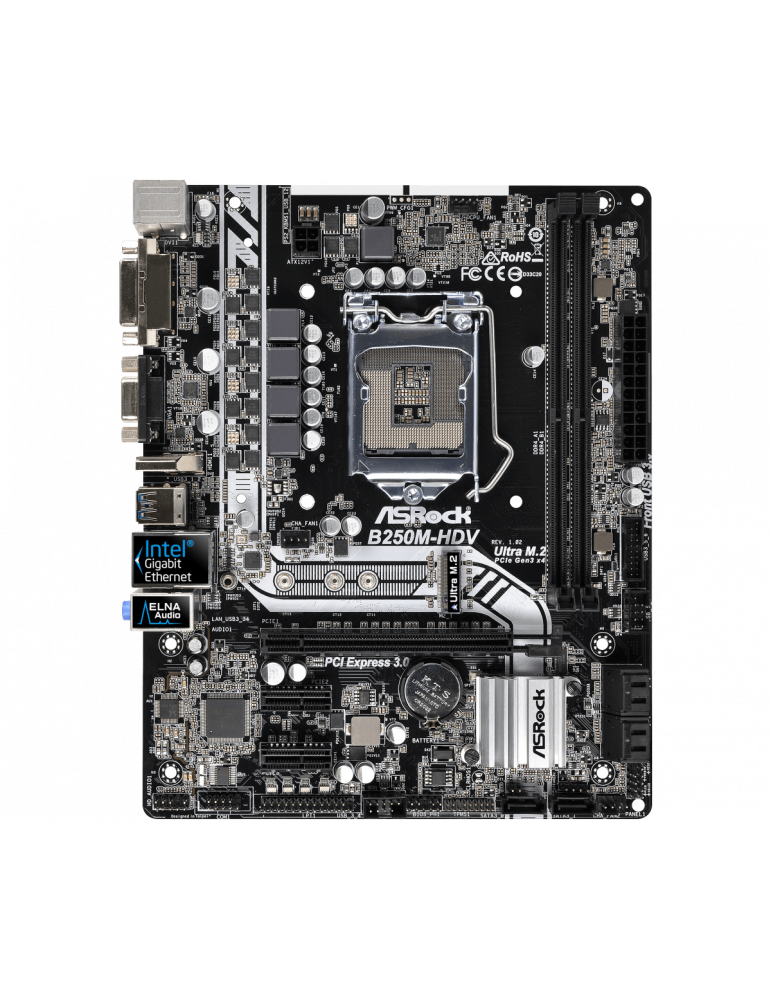

Дънна платка Asrock B250M-HDV LGA1151 Kaby Lake

Дънна платка Asrock B250M-HDV LGA1151 Kaby Lake

Name: Дънна платка Asrock B250M-HDV LGA1151 Kaby Lake
Brand: Asrock
SKU: ASROCK B250M-HDV /LGA1151
Price: 72.61 EUR
Availability: OutOfStock

Asrock

72,61 €

Цената е с включен ДДС.

Няма наличност

Изпрати ми известие, когато има наличност

Interested in this product? Drop us an email and we will let you know when it's available for order.

Manufacturer	ASROCK
Mnfr Part #	-
Model	B250M-HDV
Socket	1151
Graphics	Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics; Gen9 LP, DX11.3, DX12; HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU); HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU); Max. shared memory 1024MB**; Three graphics output options: D-Sub, DVI-D and HDMI; Supports Triple Monitor; Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz; Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); Supports HDCP with DVI-D and HDMI Ports; Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
CPU's supported	Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151); Digi Power design; 5 Power Phase design; Supports Intel® Turbo Boost 2.0 Technology
Chipset	Intel® B250
Expansion Slots	1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode); 2 x PCI Express 3.0 x1 Slots (Flexible PCIe); Supports NVMe SSD as boot disks
Storage	6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug; 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s); If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.; **Supports ASRock U.2 Kit; Supports Intel® Optane™ Technology; Supports NVMe SSD as boot disks
Memory type	Dual Channel DDR4 Memory Technology; 2 x DDR4 DIMM Slots; Supports DDR4 2400/2133 non-ECC, un-buffered memory; Supports ECC UDIMM memory modules (operate in non-ECC mode); Max. capacity of system memory: 32GB; Supports Intel® Extreme Memory Profile (XMP) 2.0; 15? Gold Contact in DIMM Slots; 7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.; **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

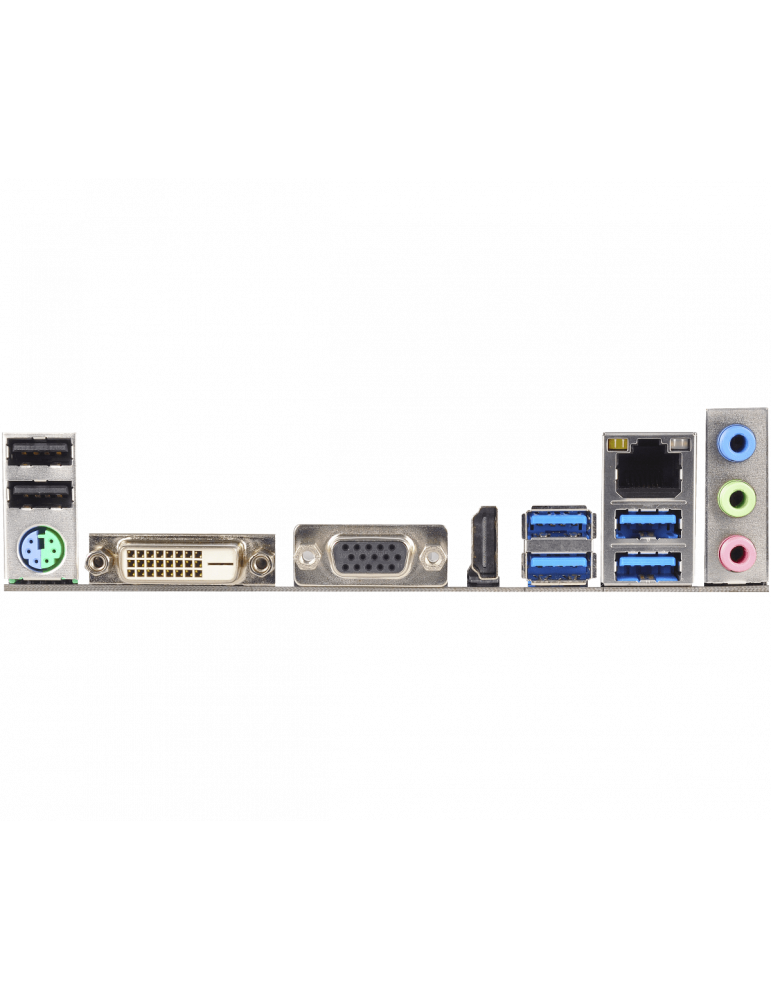

I/O	1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x DVI-D Port; 1 x HDMI Port; 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors	1 x Print Port Header; 1 x COM Port Header; 1 x TPM Header; 1 x Chassis Intrusion Header; 1 x CPU Fan Connector (4-pin); 2 x Chassis Fan Connectors (4-pin); 1 x 24 pin ATX Power Connector; 1 x 4 pin 12V Power Connector; 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Audio	7.1 CH HD Audio (Realtek ALC887 Audio Codec); Supports Surge Protection (ASRock Full Spike Protection); ELNA Audio Caps; To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	Gigabit LAN 10/100/1000 Mb/s; Giga PHY Intel® I219V; Supports Wake-On-LAN; Supports Lightning/ESD Protection (ASRock Full Spike Protection); Supports Energy Efficient Ethernet 802.3az; Supports PXE
Other	-
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU, GT_CPU, DRAM, PCH 1.0V Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 8.9-in x 7.2-in, 22.6 cm x 18.3 cm; Solid Capacitor design
OS	Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU); Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU); To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions; For the updated Windows® 10 driver, please visit ASRock's website for details.
Warranty	36 Months
