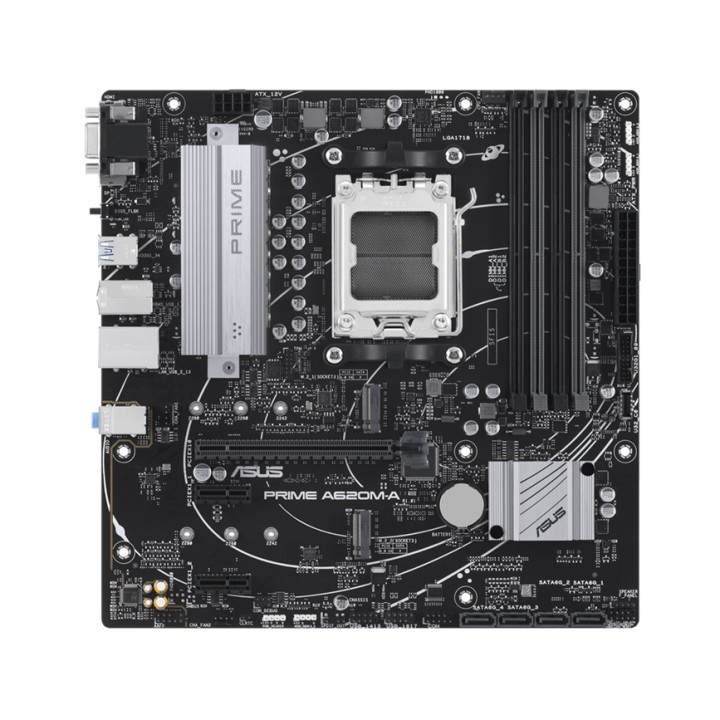

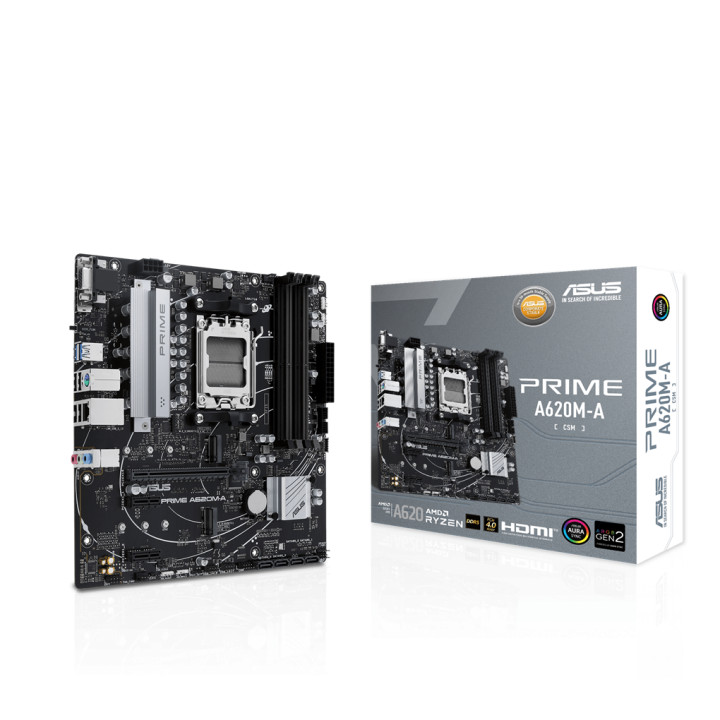

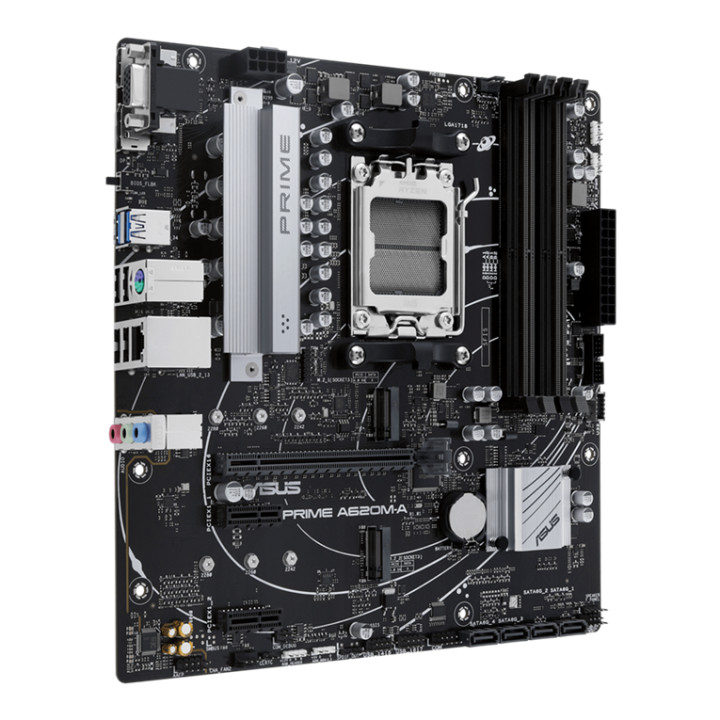

Дънна платка Asus PRIME A620M-A-CSM, AM5 - 90MB1F10-M0EAY0

Дънна платка Asus PRIME A620M-A-CSM, AM5 - 90MB1F10-M0EAY0

Name: Дънна платка Asus PRIME A620M-A-CSM, AM5 - 90MB1F10-M0EAY0
Brand: Asus
SKU: 90MB1F10-M0EAY0
Price: 123 EUR
Availability: InStock

Asus

123,00 €

Цената е с включен ДДС.

Наличност във външен склад

USB	Rear USB (Total 6 ports);2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
Производител	ASUS
Тип памет	4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);OptiMem II
Характеристики	ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage Protection;- SafeSlot Core;- Stainless-Steel Back I/O;ASUS Q-Design;- Q-DIMM;- Q-LED core;- Q-Slot;ASUS Thermal Solution;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack™ button;- BIOS FlashBack™ LED;Aura Sync;- Aura RGB header;- Addressable Gen 2 headers
CPU's supported	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Чипсет	AMD A620 Chipset
Видео карта	1 x DisplayPort;1 x VGA port;1 x HDMI™ port
Разширителни слотове	AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD A620 Chipset;2 x PCIe 3.0 x1 slots
Съхранение	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);AMD A620 Chipset;4 x SATA 6Gb/s ports

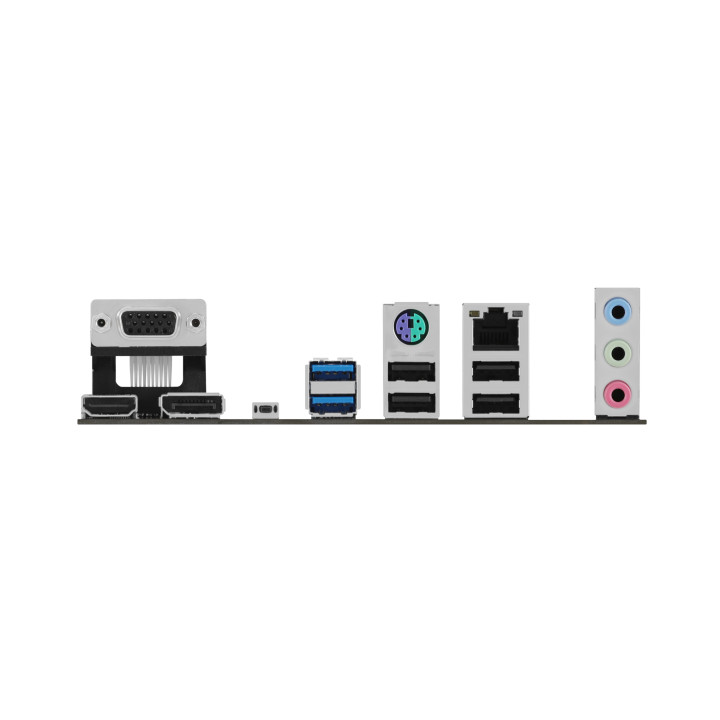

Вх/Изх	2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x VGA port;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button;1 x PS/2 Keyboard/Mouse combo port
Конектори	Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® );1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1pin);1 x 10-1 pin System Panel header
Аудио	Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN	1 x Realtek 1Gb Ethernet
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Форм фактор	micro-ATX Form Factor;24.4 cm x 24.4 cm
OS	Windows® 11, Windows® 10 64-bit
