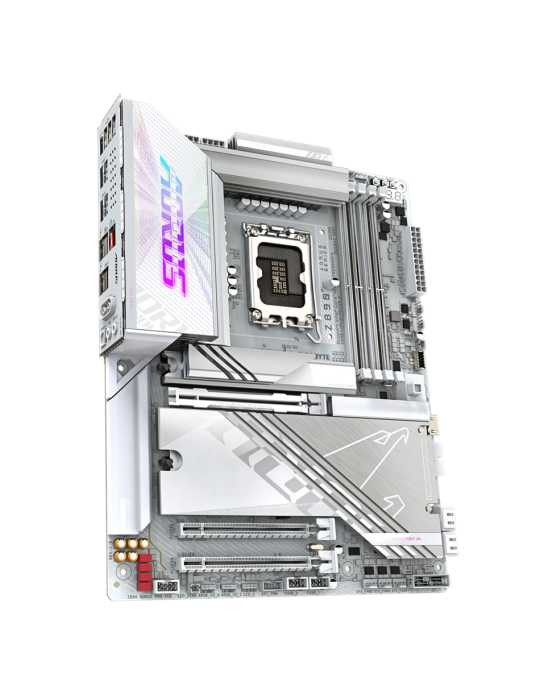

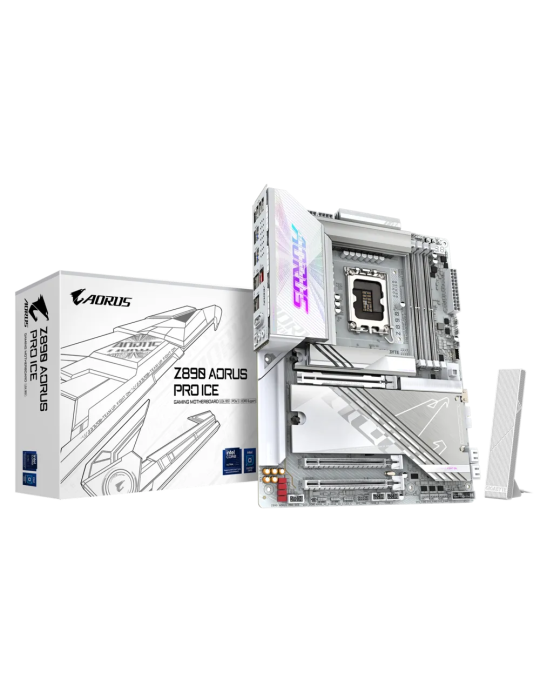

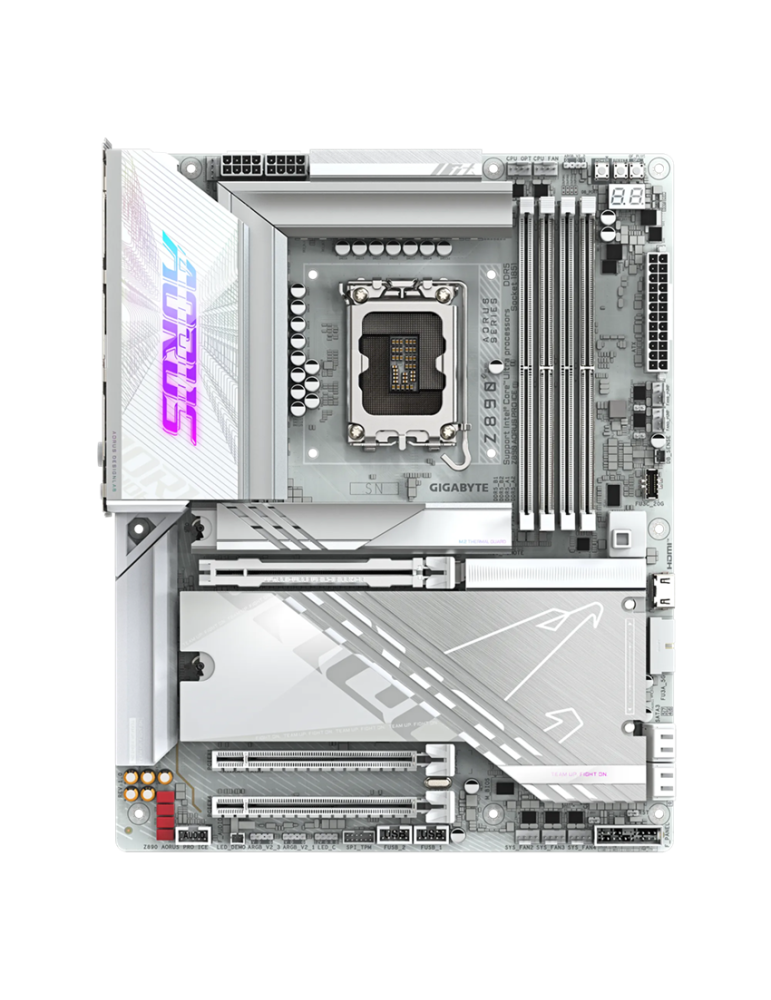

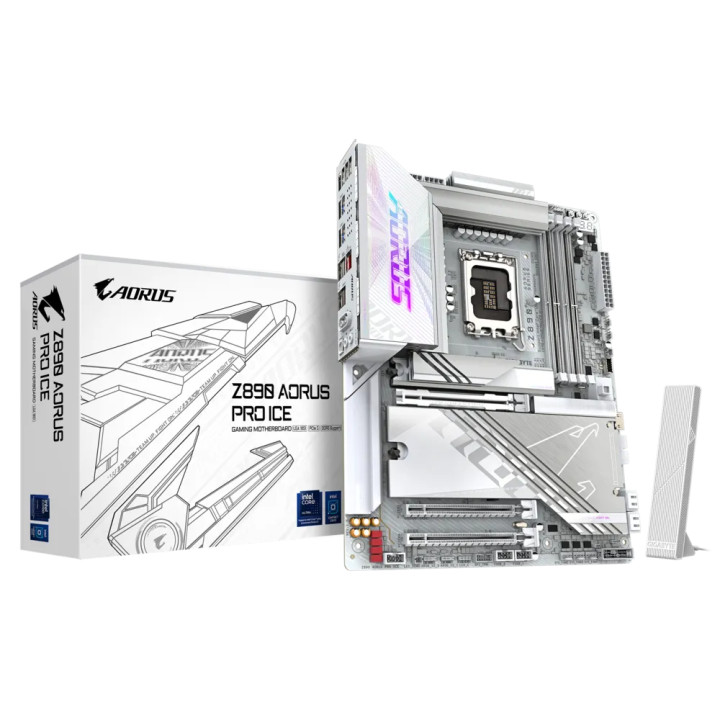

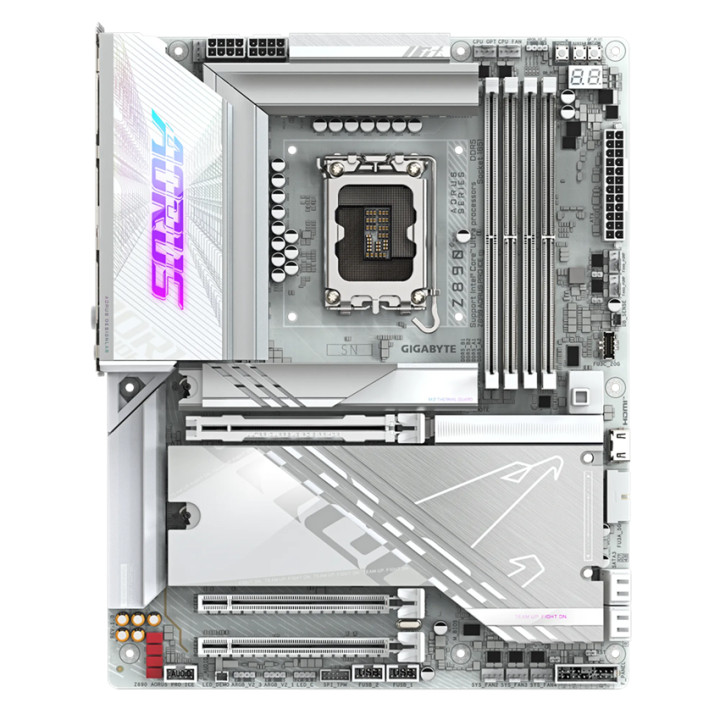

Дънна платка Gigabyte Z890 AORUS PRO IC, LGA1851

Дънна платка Gigabyte Z890 AORUS PRO IC, LGA1851

Name: Дънна платка Gigabyte Z890 AORUS PRO IC, LGA1851
Brand: Gigabyte
SKU: Z890 AORUS PRO ICE
Price: 350 EUR
Availability: InStock

Gigabyte

350,00 €

Цената е с включен ДДС.

Наличност във външен склад

Банка ДСК Купи на лизинг 12 вноски по 31.06 € (60.75 лв.) Калкулатор ›

USB	CPU:;- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel;Support up to 40Gbps with Thunderbolt devices;Support up to 20Gbps with USB4 devices;*Support up to 10Gbps with USB 3.2 devices;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header);Chipset+3 USB 2.0 Hubs:;- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Производител	GIGABYTE

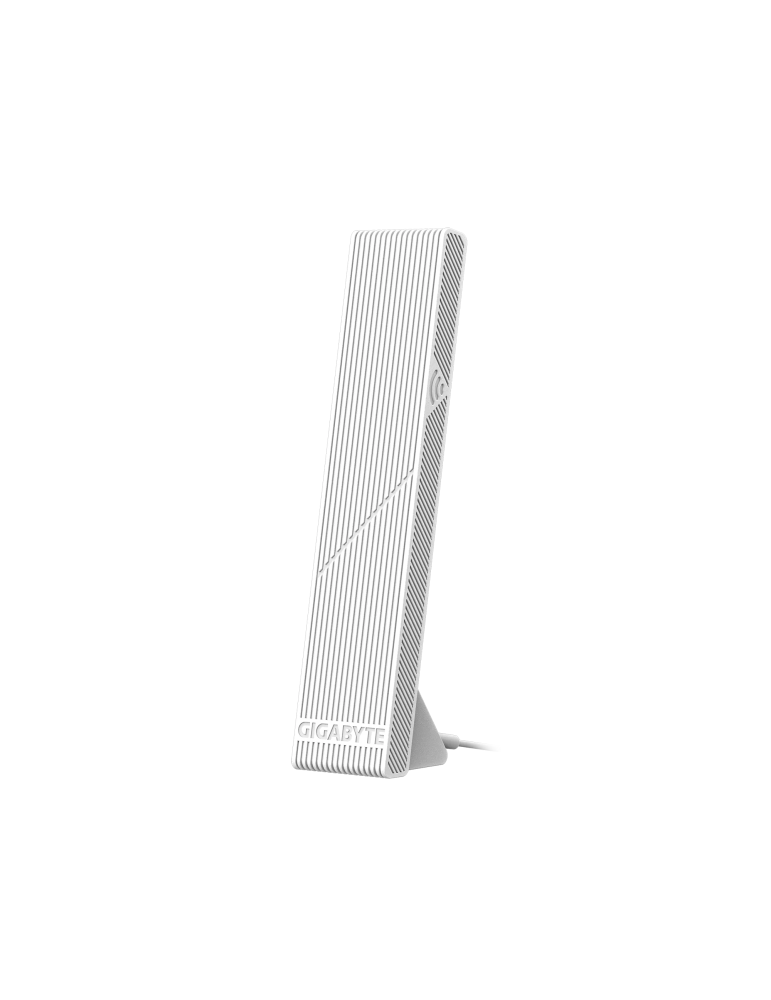

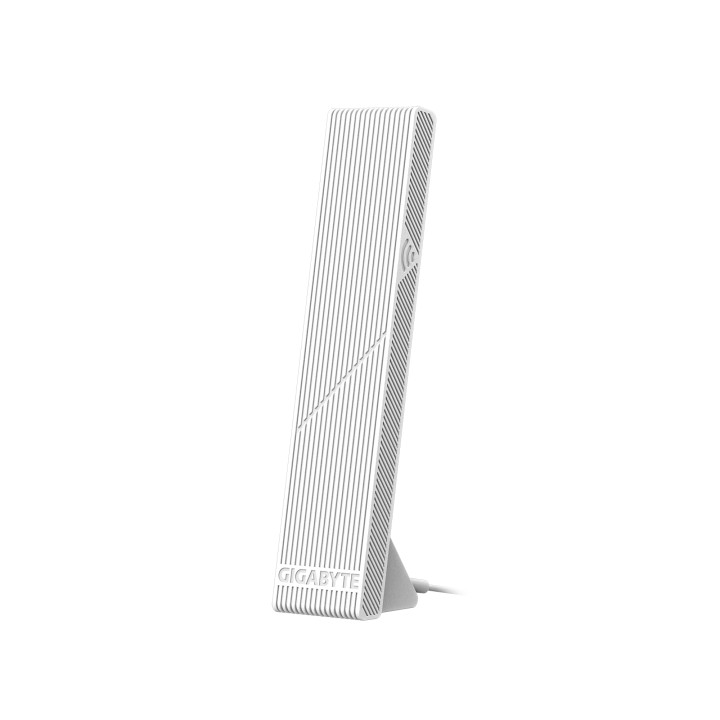

Безжичен	Intel® Wi-Fi 7 BE200;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 320MHz wireless standard
Тип памет	Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;Support CUDIMM memory module
Характеристики	Support for GIGABYTE Control Center (GCC);Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
CPU's supported	LGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU
Чипсет	Intel® Z890 Express Chipset
Bluetooth	5.4
Видео карта	Integrated Graphics Processor-Intel® HD Graphics support:;- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs;(Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality.);When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).;When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).;* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.);* Support for DisplayPort 1.4 version and HDCP 2.3;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version.;(Graphics specifications may vary depending on CPU support.);Support for u
Разширителни слотове	CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Съхранение	CPU:;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB);- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Вх/Изх	iTE® I/O Controller Chip

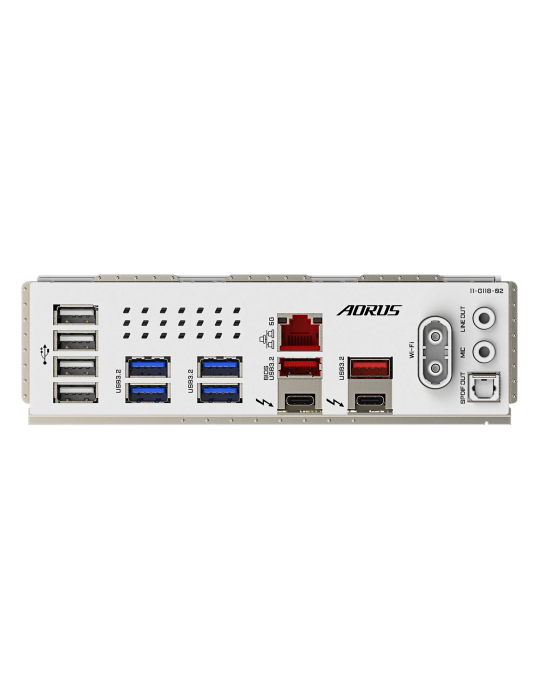

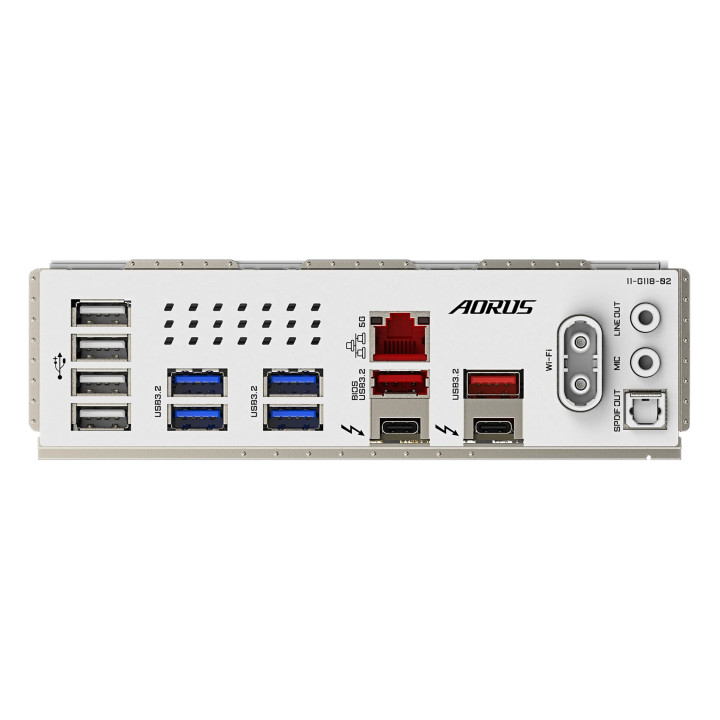

Конектори	1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header;4 x system fan headers;2 x system fan/water cooling pump headers;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;5 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x HDMI port (Note);1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x Q-Flash Plus button1 x noise detection header;1 x power button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;2 x temperature sensor headers;Back Panel Connectors;4 x USB 2.0/1.1 ports;2 x antenna connectors (2T2R);4 x USB 3.2 Gen 1 ports;2 x Intel® Thunderbolt™ 4 (Note) connectors (USB Type-C® ports);2 x USB 3.2 Gen 2 Type-A ports (red);1 x RJ-45 port;1 x optical S/PDIF Out connector;2 x audio jacks
Аудио	Realtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
LAN	Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
BIOS	1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм фактор	ATX Form Factor; 30.5cm x 24.4cm
OS	Support for Windows 11 64-bit;Norton® Internet Security (OEM version);LAN bandwidth management software
