• Manufacturer: MSI

• Wireless: Intel® Killer™ BE1750x Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

• Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency:;• 1DPC 1R Max speed up to 9200+ MT/s;• 1DPC 2R Max speed up to 7200+ MT/s;• 2DPC 1R Max speed up to 4800+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports Intel POR Speed and JEDEC Speed;Supports Memory Overclocking and Intel XMP 3.0;Supports Dual-Controller Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM

• Features: 4x EZ Debug LED;1x EZ Digit Debug LED

• CPU`s supported: Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851

• Chipset: INTEL Z890

• Bluetooth : 5.4

• Graphics: 1x HDMI™;Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz;2x Type-C DisplayPort;ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

• Expansion Slots: 3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);• PCI_E1 supports BIOS adjustment to x8+x4+x4;• PCI_E2 supports BIOS adjustment to x4+x4

• Storage: 5x M.2;-M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;-M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;-M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;-M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices;-M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices;4x SATA 6G;Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices;Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

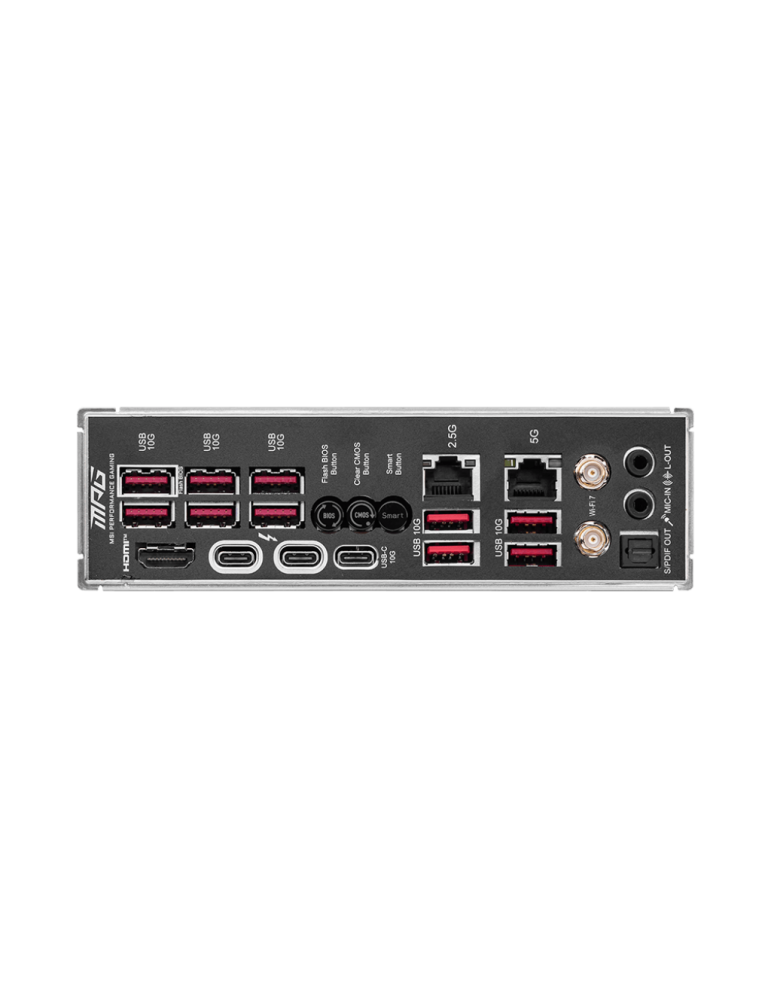

• I/O: 2x Thunderbolt4 ports (Rear);Supports up to 40Gbps transfer rate with Thunderbolt devices;Supports up to 20Gbps transfer rate with USB4 devices;Supports up to 10Gbps transfer rate with USB 3.2 devices;Supports up to 5V/3A,15W power charging;Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices;Supports up to 8K display;4x USB 2.0 (Front);4x USB 5Gbps Type A (Front);10x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Rear);1x USB 20Gbps Type C (Front)

• Connectors: 1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x Front Type-C Quick Charge Connector(PD_PWR1);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);5x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Water Flow connector;1x Front Audio (JAUD);1x Thermal Sensor connectors(T_SEN);3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 20Gbps Type C ports

• Audio: Realtek® ALC1220P Codec;7.1-Channel USB High Defination Audio;Supports S/PDIF output

• LAN: 1x Intel® Killer™ E5000B 5G LAN;1x Intel® I226V 2.5G LAN

• Form Factor: ATX 243.84mmx304.8mm

• OS: Support for Windows® 11 64-bit

• Warranty: 36 Months
