• CPU`s supported: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors.

• Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO™; Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6000+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5400+ MHz

• Chipset: AMD B650

• Graphics: 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*

• Expansion Slots: 1x PCI-E x16 slot; • Supports x16 (For Ryzen™ 7000 Series processors); • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors); • Supports x4 (For Ryzen™ 5 8500G processor); 2x PCI-E x1 slot; PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Storage: 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

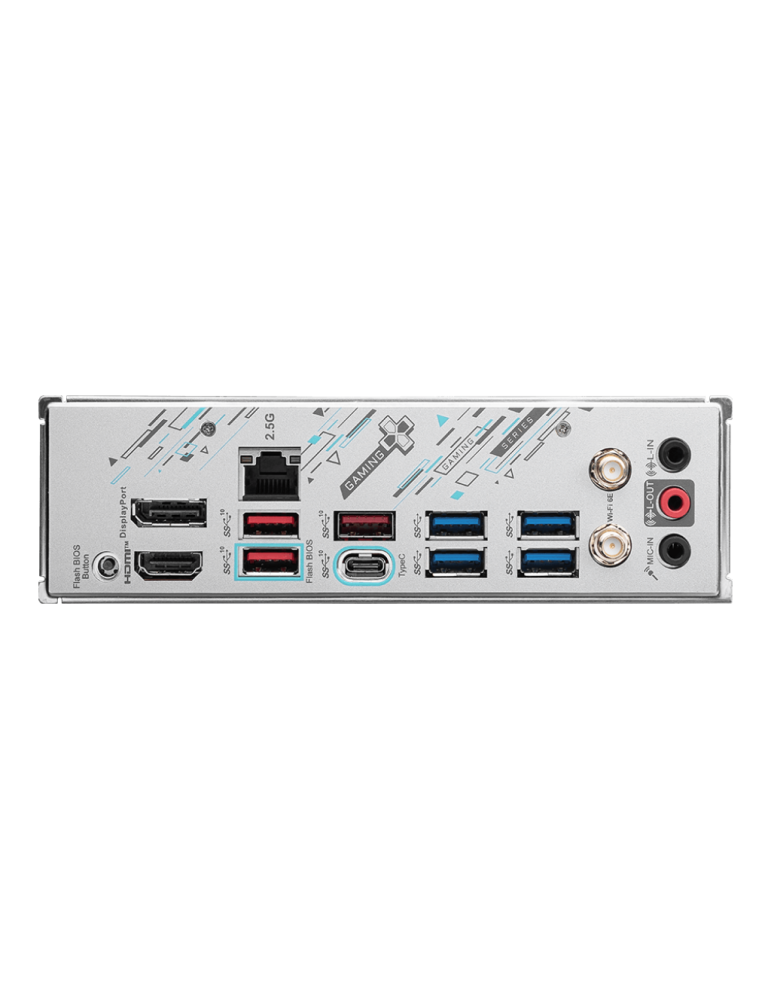

• I/O: DisplayPort; 2.5G LAN; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 1 5Gbps (Type-A); Wi-Fi / Bluetooth; Flash BIOS Button; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-C); Audio connectors

• Connectors: 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports

• Audio: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

• LAN: Realtek® RTL8125BG 2.5Gbps LAN

• Form Factor: Support for Windows® 11 64-bit, Windows® 10 64-bit

• OS: mATX,243.84mmx243.84mm

• Other: AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3**

• Warranty: 36 Months
