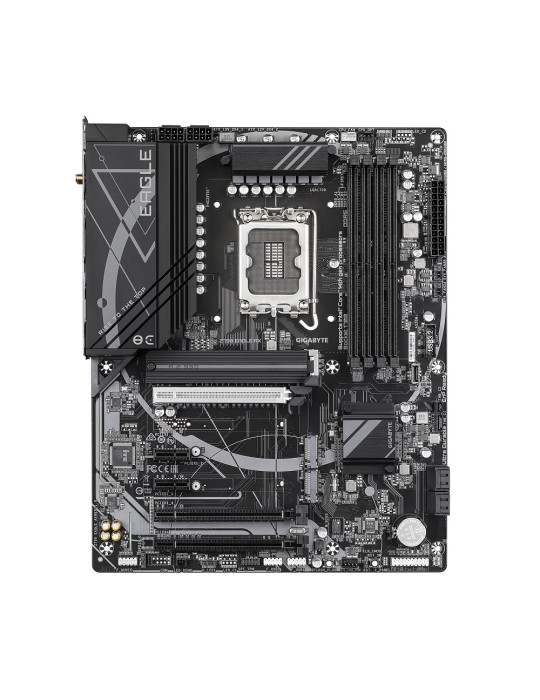

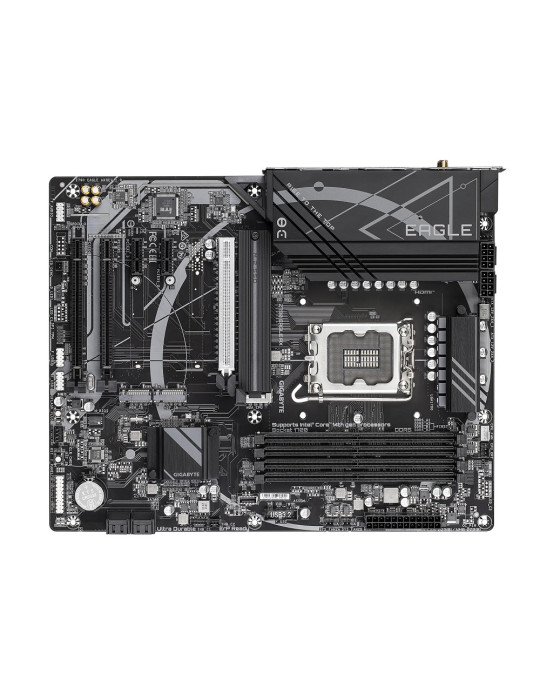

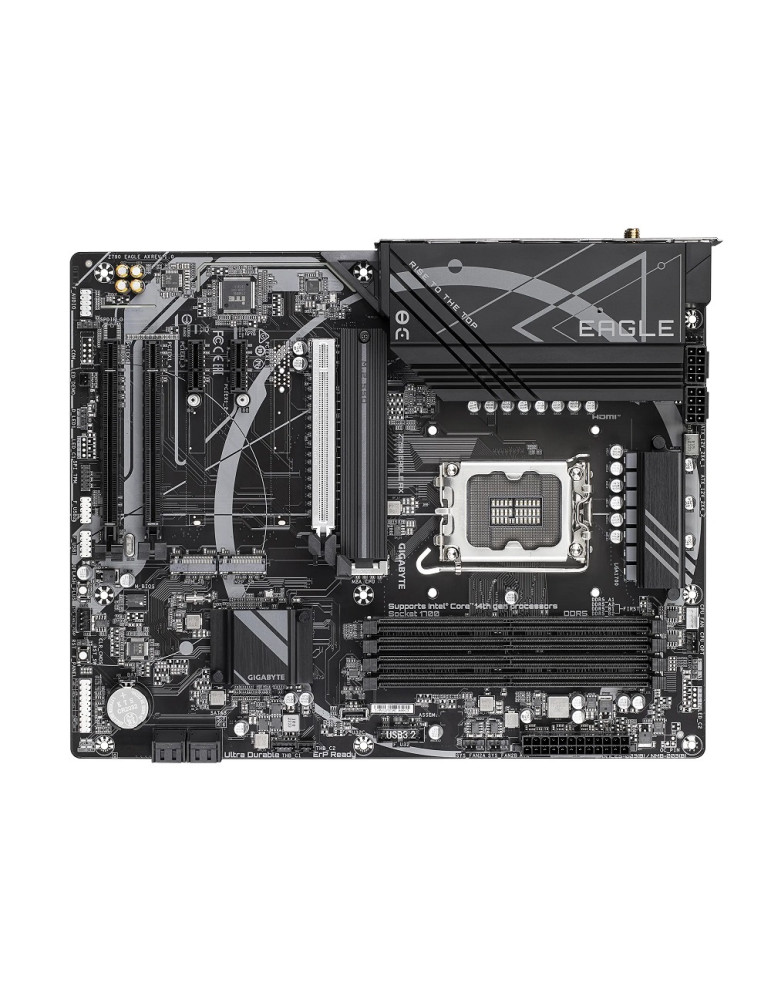

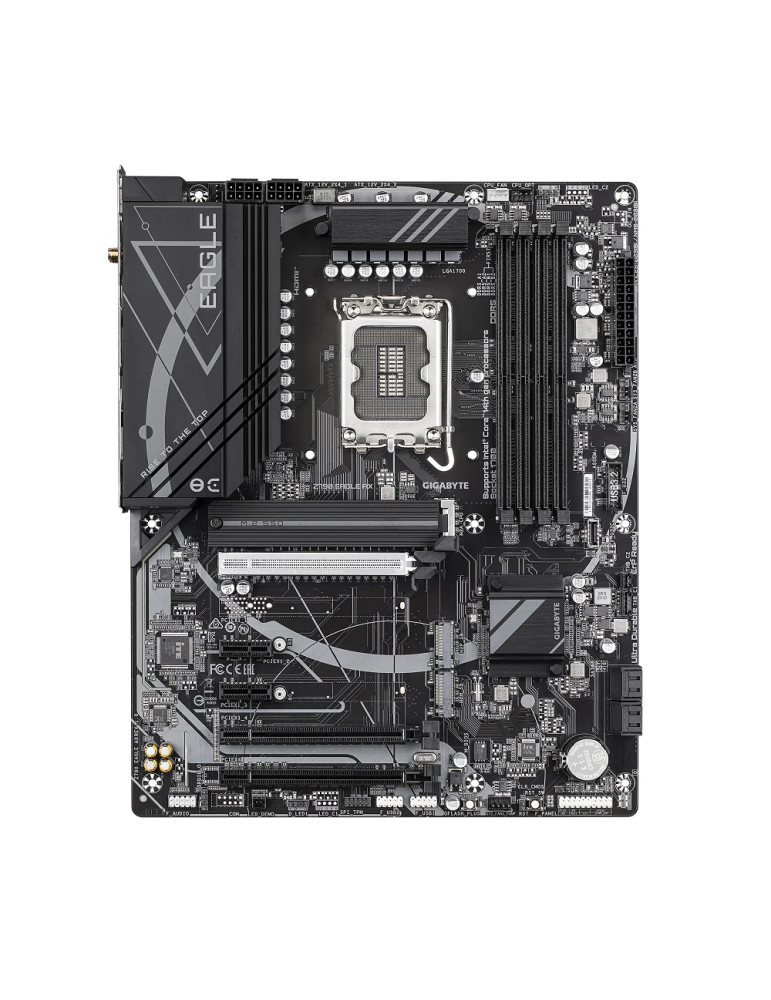

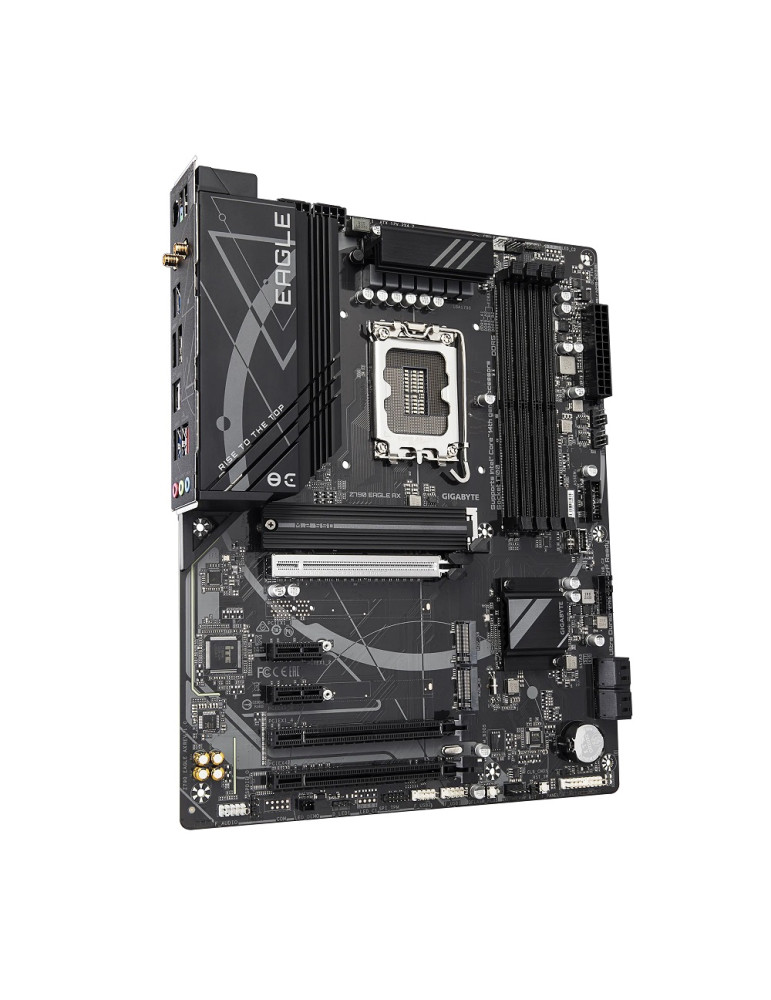

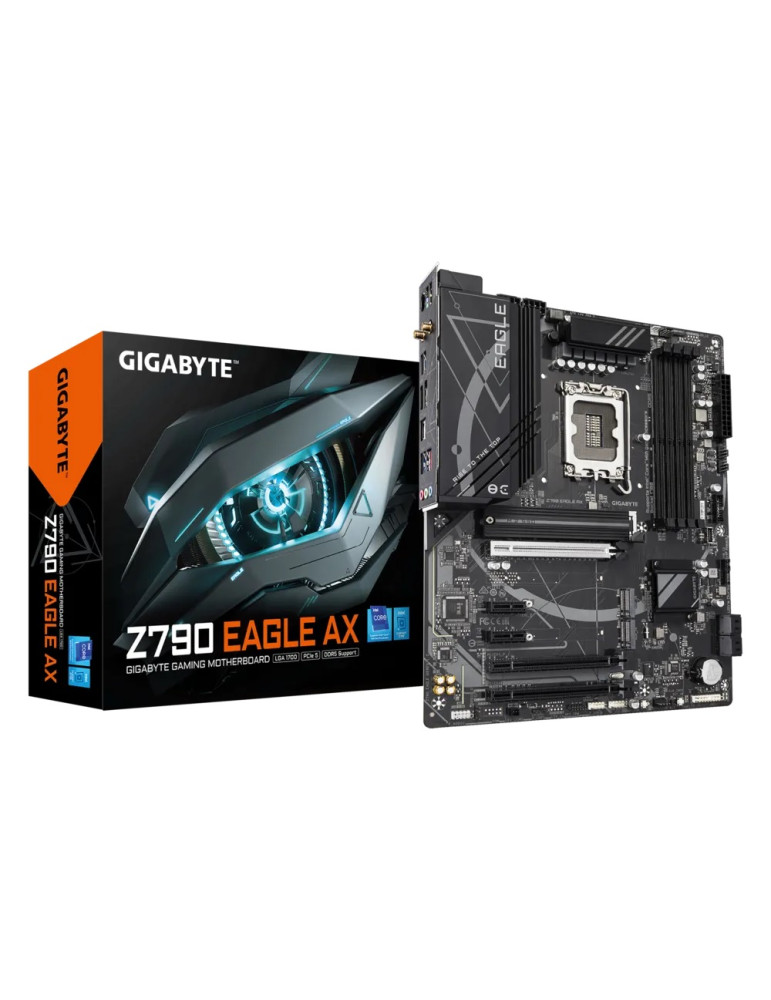

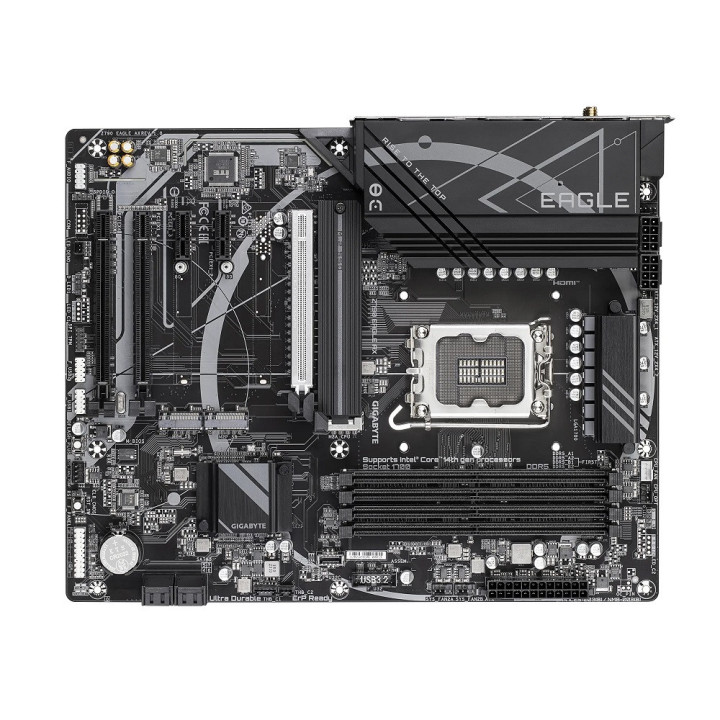

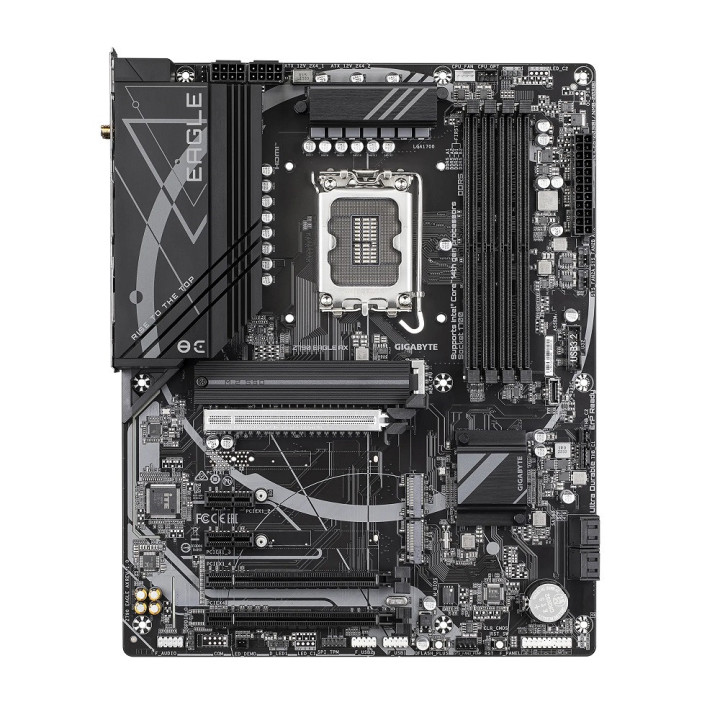

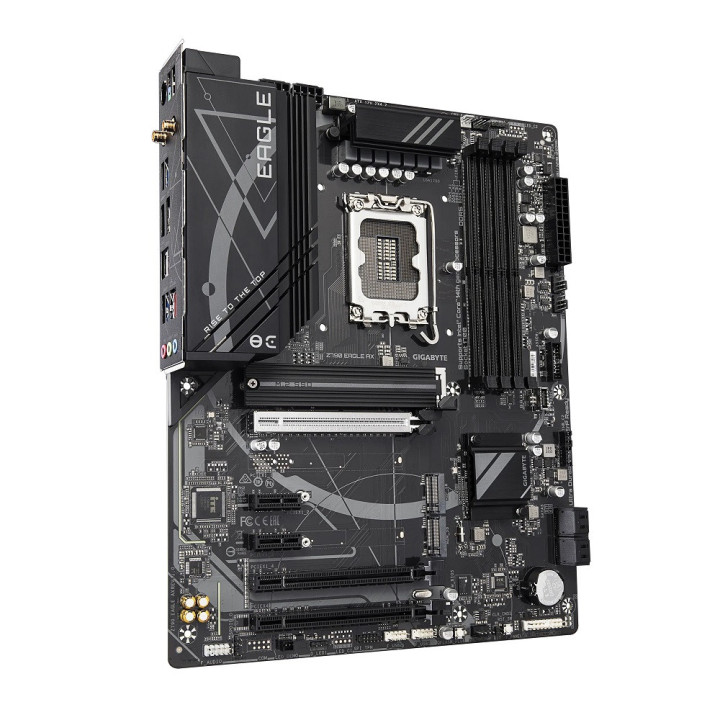

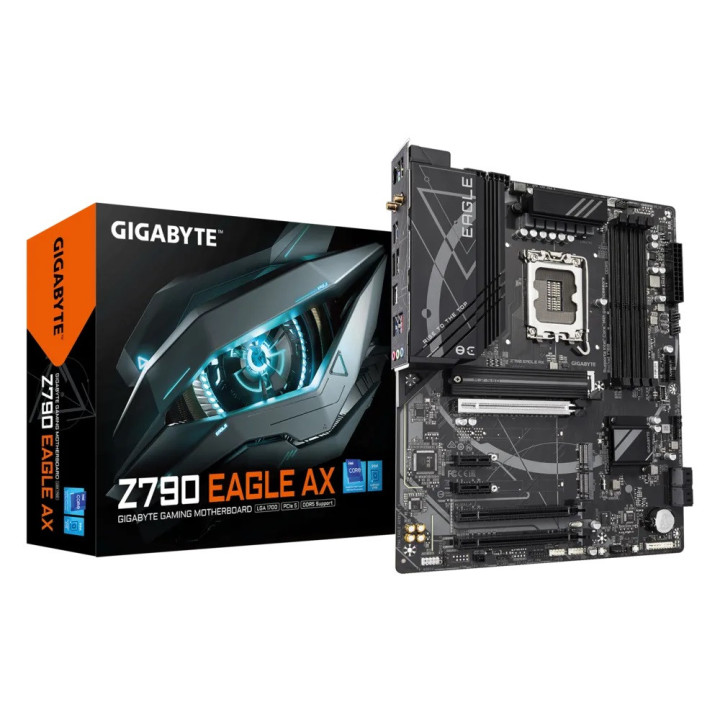

Дънна платка Gigabyte Z790 Eagle AX, LGA1700, DDR5, PCI-E 5.0, 3x M.2, USB Type-C, ATX
Дънна платка Gigabyte Z790 Eagle AX, LGA1700, DDR5, PCI-E 5.0, 3x M.2, USB Type-C, ATX
Дънна платка Gigabyte Z790 Eagle AX, LGA1700, DDR5, PCI-E 5.0, 3x M.2, USB Type-C, ATX
Дънна платка Gigabyte Z790 Eagle AX, LGA1700, DDR5, PCI-E 5.0, 3x M.2, USB Type-C, ATX
Дънна платка Gigabyte Z790 Eagle AX, LGA1700, DDR5, PCI-E 5.0, 3x M.2, USB Type-C, ATX

Дънна платка Gigabyte Z790 Eagle AX, LGA1700, DDR5, PCI-E 5.0, 3x M.2, USB Type-C, ATX

Gigabyte
203,00 €
Цената е с включен ДДС.
Дънна платка Gigabyte Z790 Eagle AX (rev. 1.0), Z790, LGA1700, DDR5, PCI-E 5.0 (HDMI&DP), 3x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A, ATX
Наличност във външен склад
TBI Bank Купи на лизинг 13 вноски по 17.65 € (34.52 лв.) Калкулатор ›

CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
Тип памет14th and 13th Generation Intel® Core™ i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules; 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
ЧипсетIntel® Z790 Express Chipset
Видео картаIntegrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3
Expansion SlotsCPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4); - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4); - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
StorageCPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

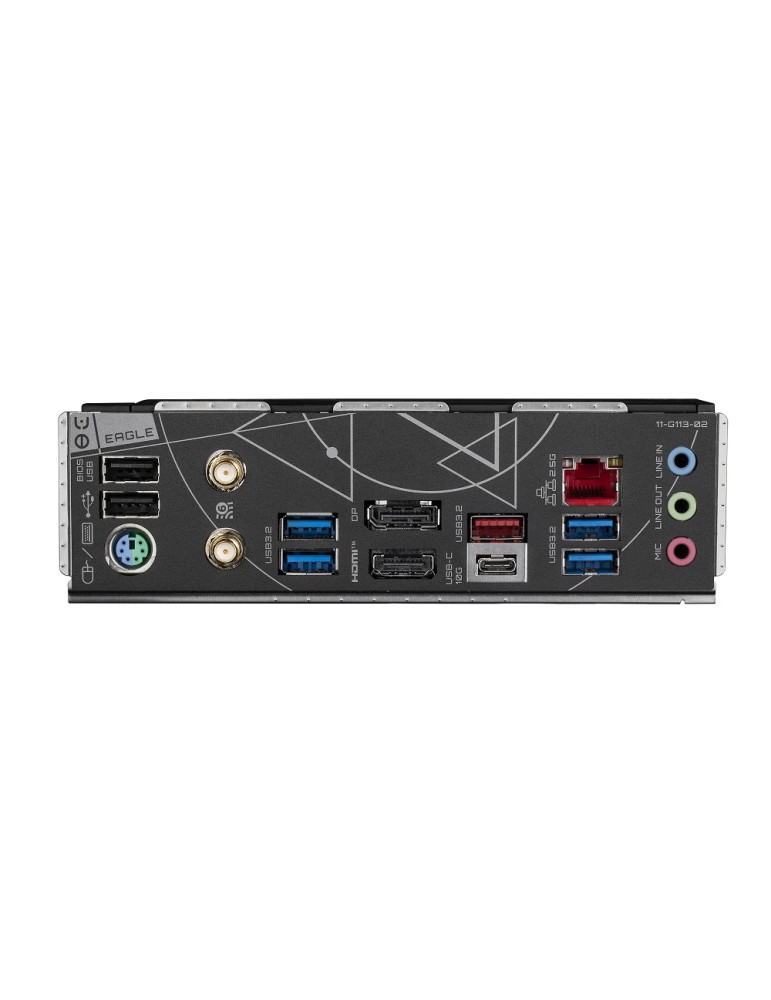

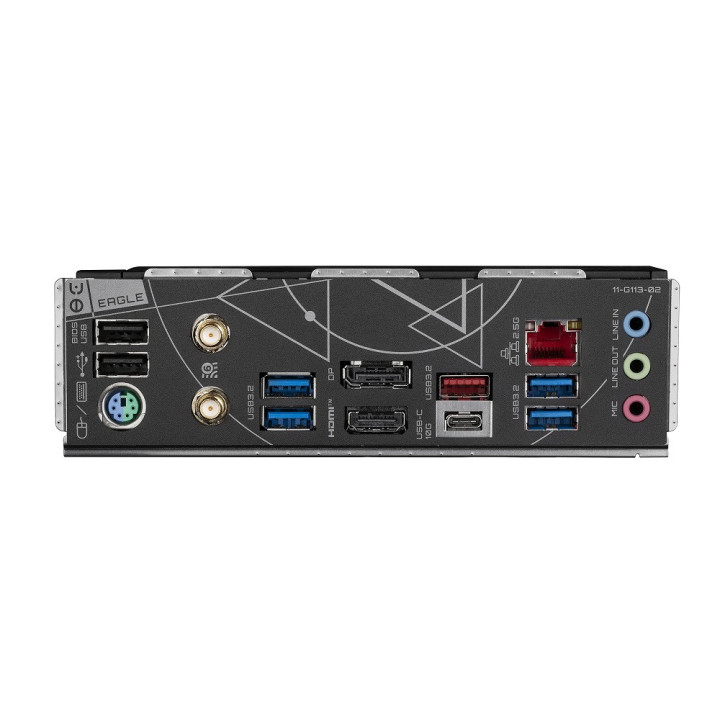

Вх/Изх1 x PS/2 keyboard/mouse port; 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 2 x SMA antenna connectors (1T1R); 1 x HDMI port; 1 x DisplayPort; 1 x RJ-45 port; 3 x audio jacks
Конектори1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
AudioRealtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм факторATX Form Factor; 30.5cm x 24.4cm
OSSupport for Windows 11 64-bit; Support for Windows 10 64-bit
ДругоIntel® Wi-Fi 6E AX211 (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard
Гаранция36 Months

  • Марка
  • Референция
    Z790 EAGLE AX
  • В наличност
    15 Артикула

  • Производител
    Gigabyte
  • Сокет
    LGA1700
  • Чипсет
    Intel Z790
  • Поддържани процесори
    Intel
  • Поддържана памет на дънна платка
    DDR5
  • Форм фактор
    ATX
  • RAM слотове
    4
  • Гаранция
    36 месеца
  • Портове на лаптоп
    Display Port
    HDMI
    M.2 PCI-E за SSD
    RJ-45 LAN
    USB Type C
