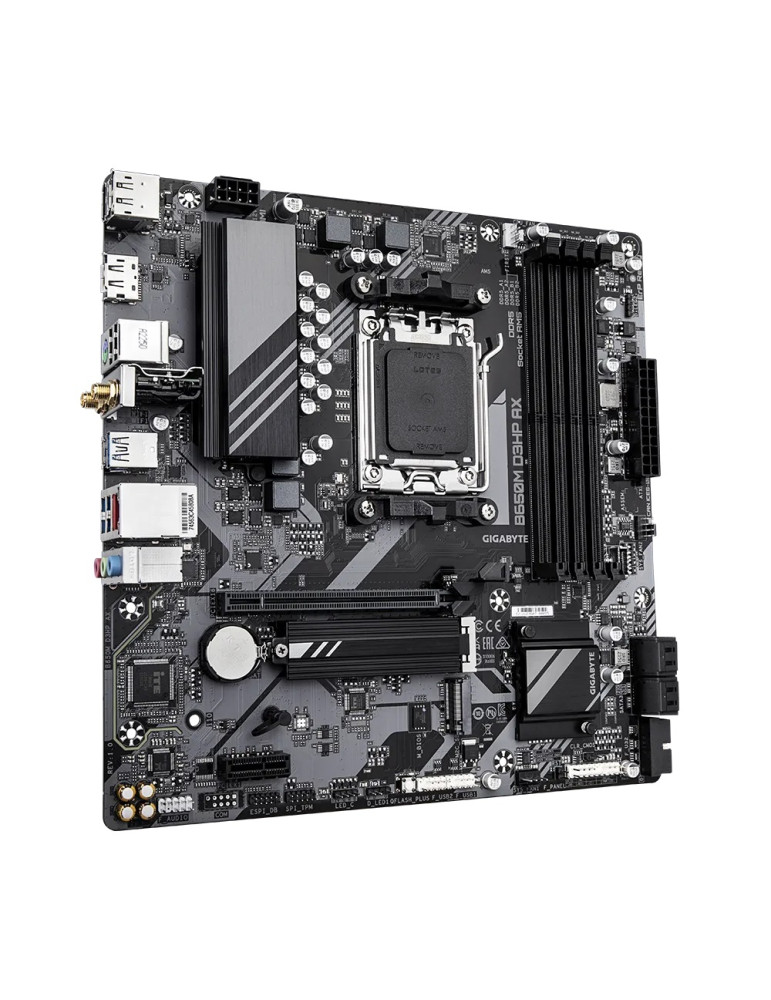

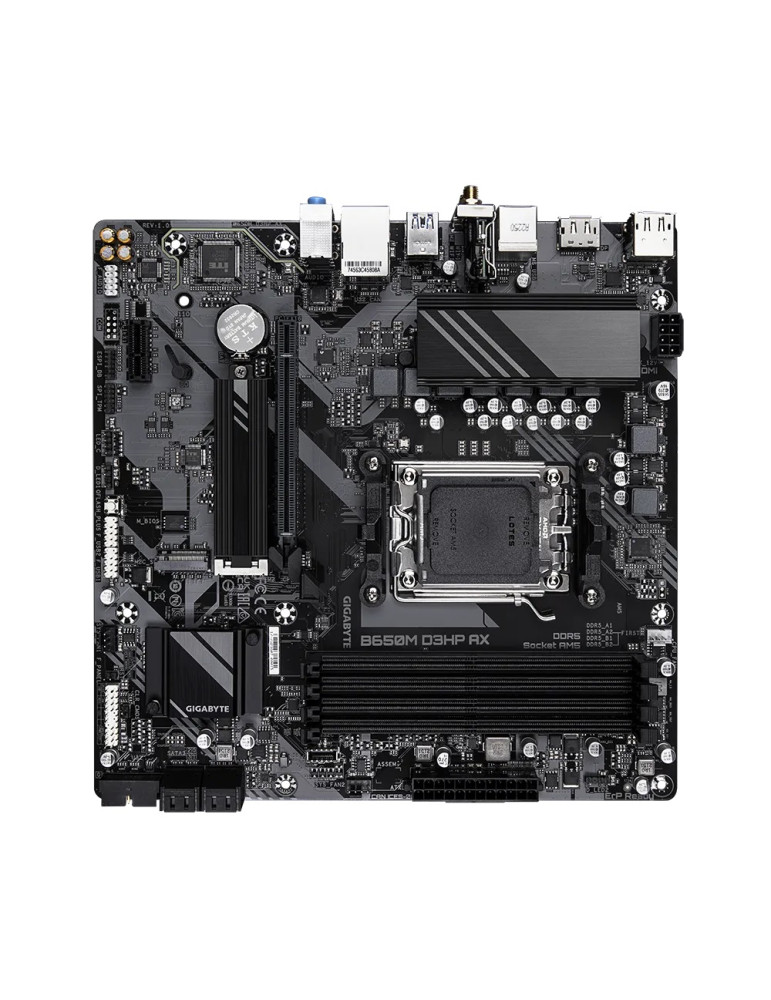

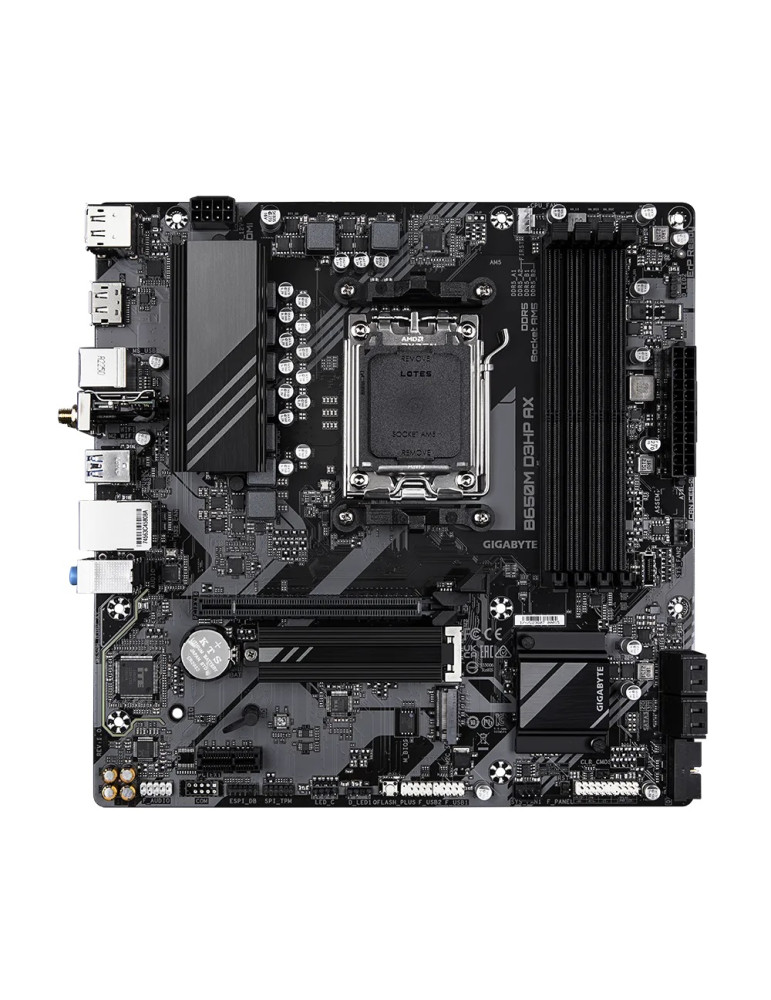

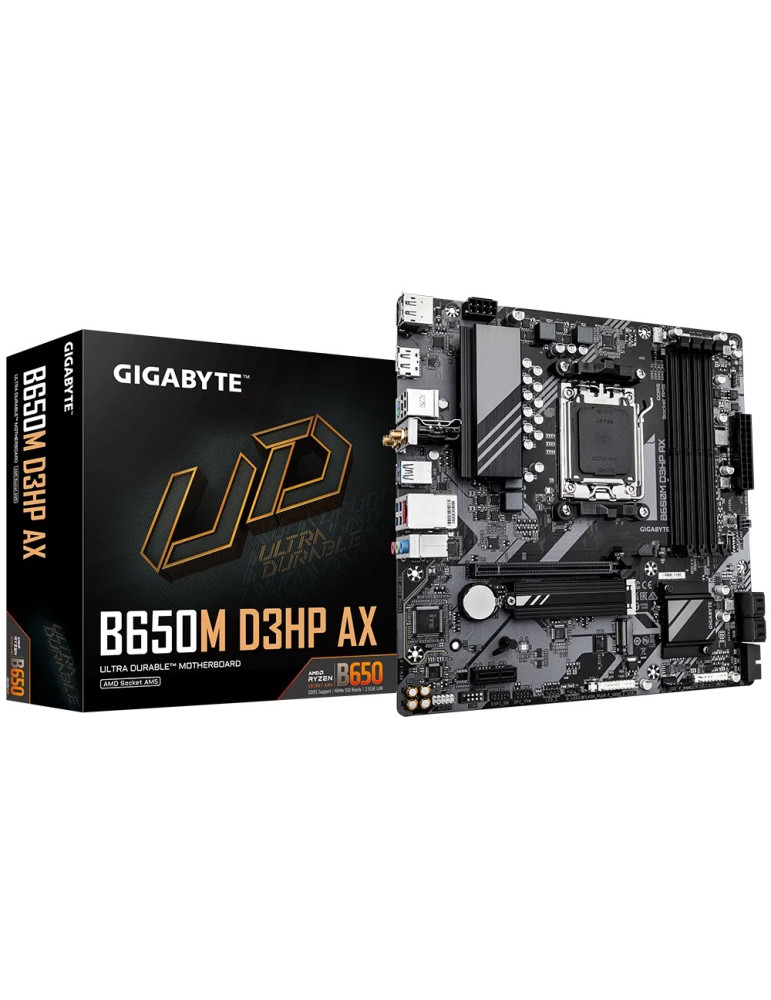

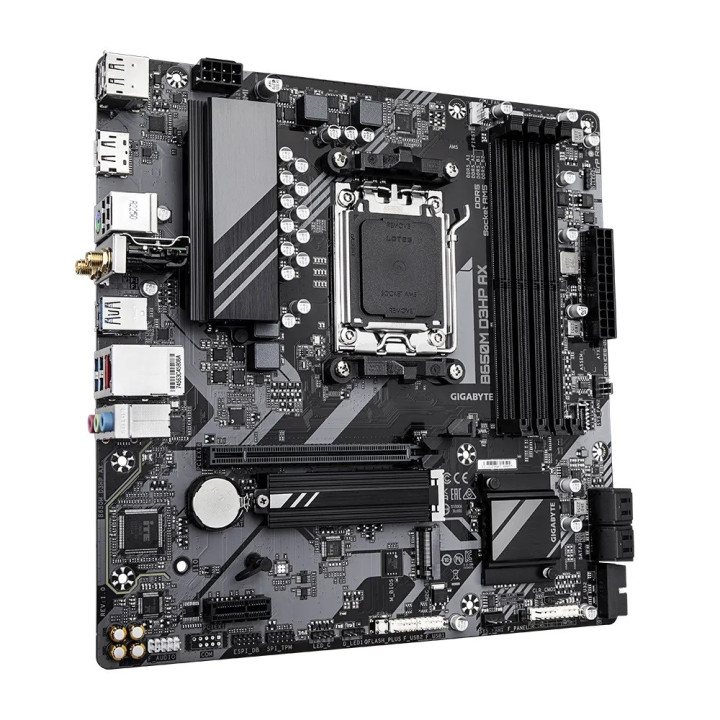

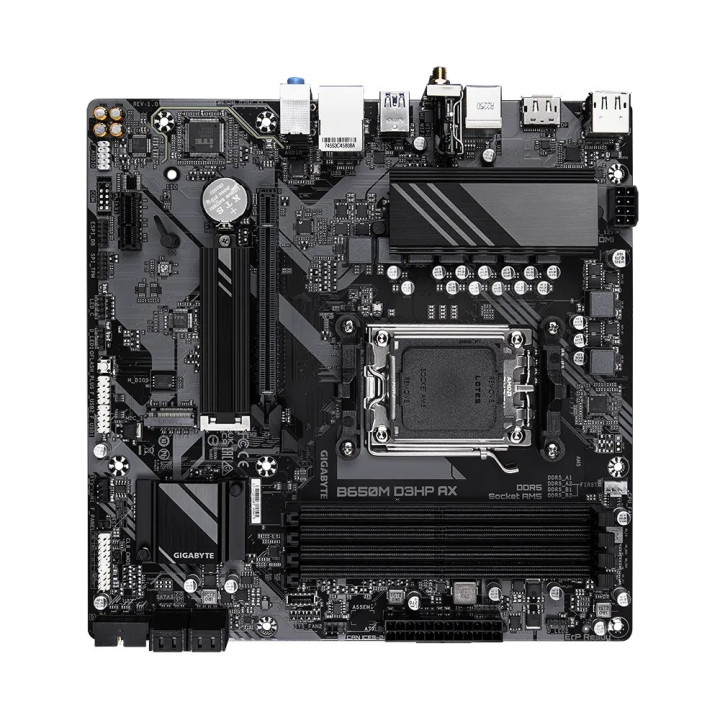

Дънна платка Gigabyte B650M D3HP AX, AM5, DDR5
Дънна платка Gigabyte B650M D3HP AX, AM5, DDR5
Дънна платка Gigabyte B650M D3HP AX, AM5, DDR5
Дънна платка Gigabyte B650M D3HP AX, AM5, DDR5
Дънна платка Gigabyte B650M D3HP AX, AM5, DDR5

Дънна платка Gigabyte B650M D3HP AX, AM5, DDR5

Gigabyte
143,00 €
Цената е с включен ДДС.
GB B650 4xDDR5 4xSATA3 RAID HDMI 2xDP 2xM2 GLAN 1xPCIEx16 1xPCIEx1
Наличност във външен склад
Банка ДСК Купи на лизинг 12 вноски по 12.69 € (24.82 лв.) Калкулатор ›

CPU's supportedAMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
Тип паметSupport for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
ЧипсетAMD B650
Видео картаIntegrated Graphics Processor with AMD Radeon™ Graphics support; - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; Support for up to triple-display at the same time; (Graphics specifications may vary depending on CPU support.)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

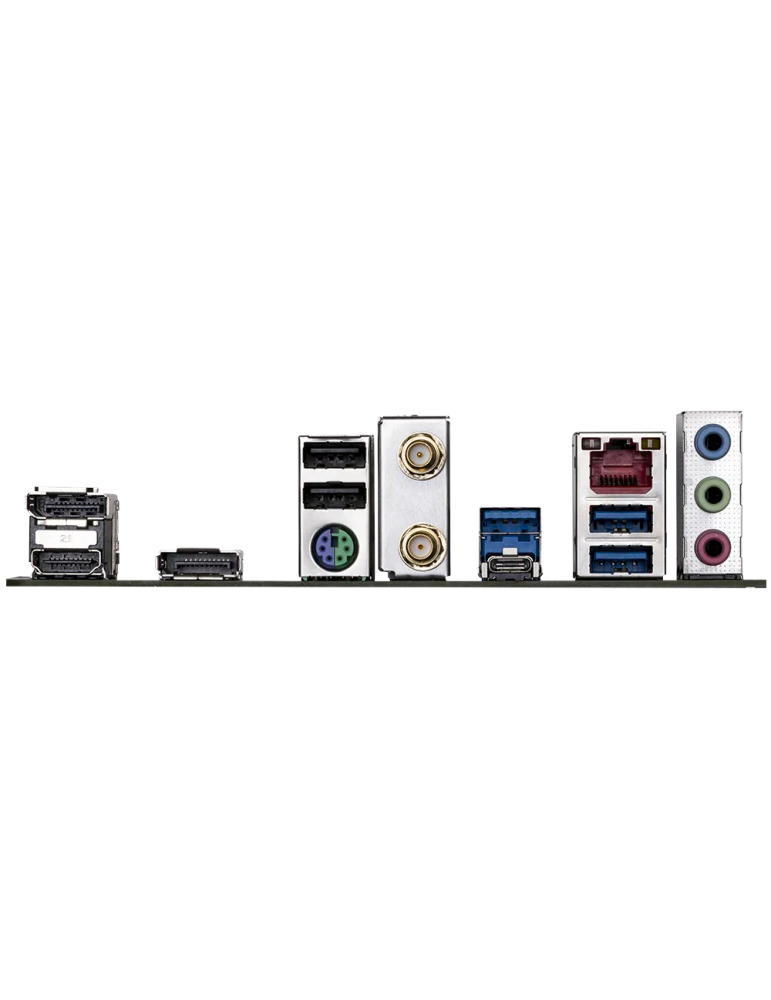

Вх/Изх1 x PS/2 keyboard/mouse port; 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 3 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x HDMI port; 2 x DisplayPorts; 1 x RJ-45 port; 3 x audio jacks
Конектори1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
AudioRealtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм факторMicro ATX Form Factor; 24.4cm x 24.4cm
OSSupport for Windows 11 64-bit; Support for Windows 10 64-bit
ДругоRealtek® Wi-Fi 6E RTL8852CE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless
Гаранция36 Months

  • Марка
  • Референция
    B650M D3HP AX
  • В наличност
    15 Артикула

  • Производител
    Gigabyte
  • Сокет
    AM5
  • Чипсет
    AMD B650
  • Поддържани процесори
    AMD
  • Поддържана памет на дънна платка
    DDR5
  • Форм фактор
    Micro ATX
  • RAM слотове
    4
  • Гаранция
    36 месеца
  • Портове на лаптоп
    3.5 mm Mono Mic
    3.5 mm Mono Out
    Display Port
    HDMI
    M.2 PCI-E за SSD
    PS/2
    RJ-45 LAN
    USB 2
    USB 3
    USB Type C
