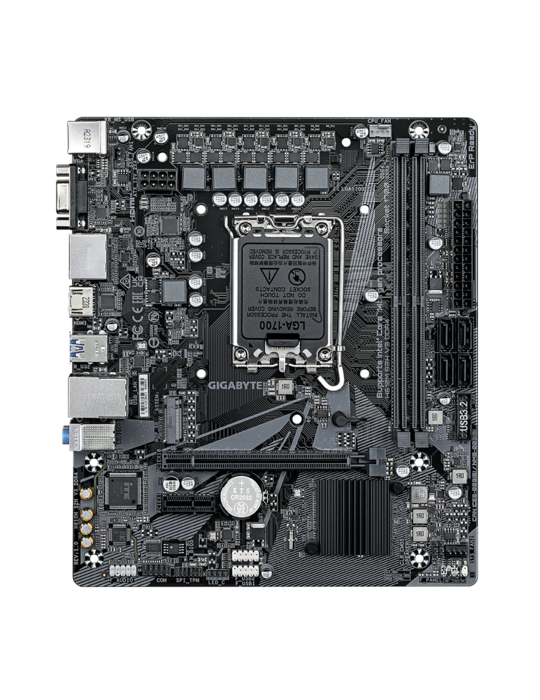

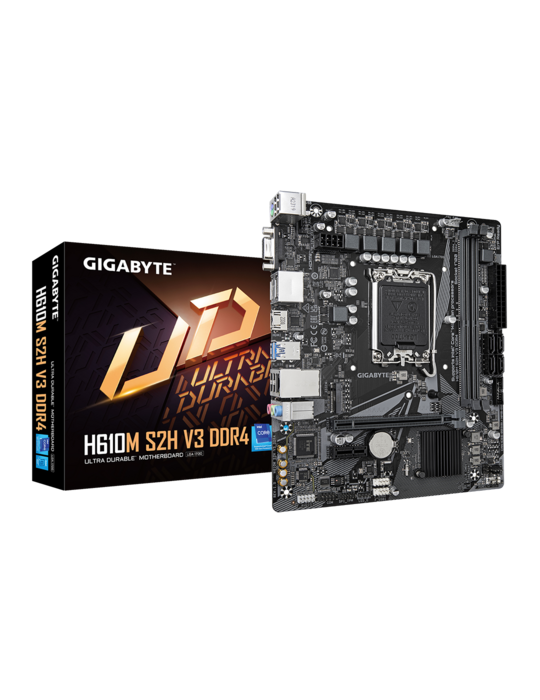

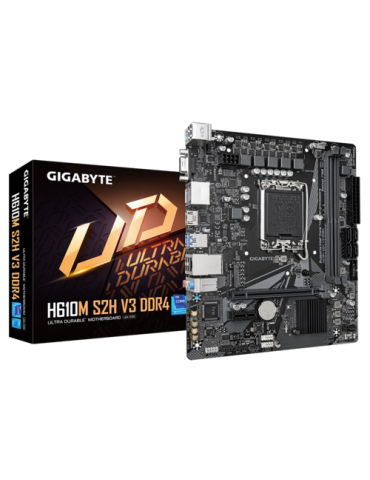

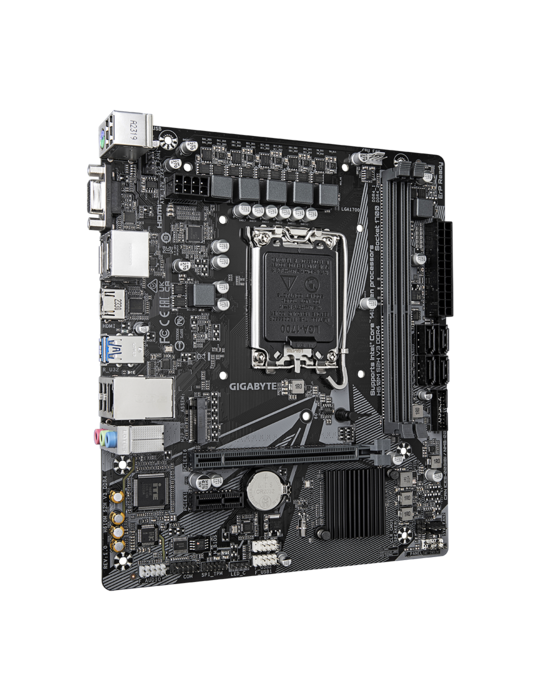

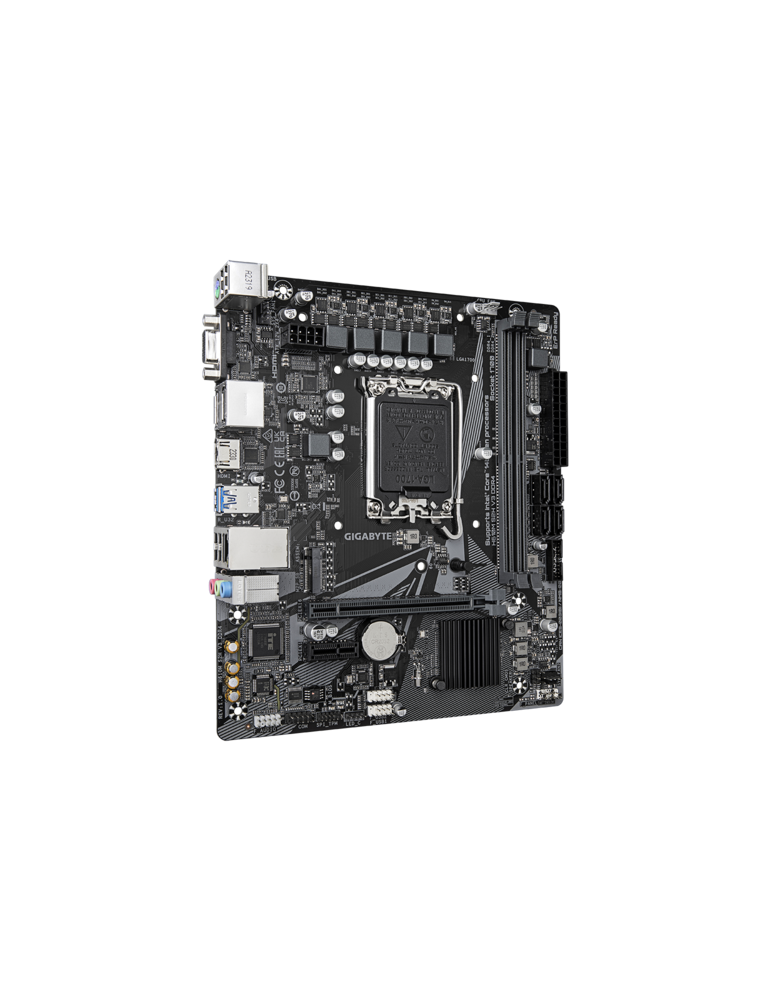

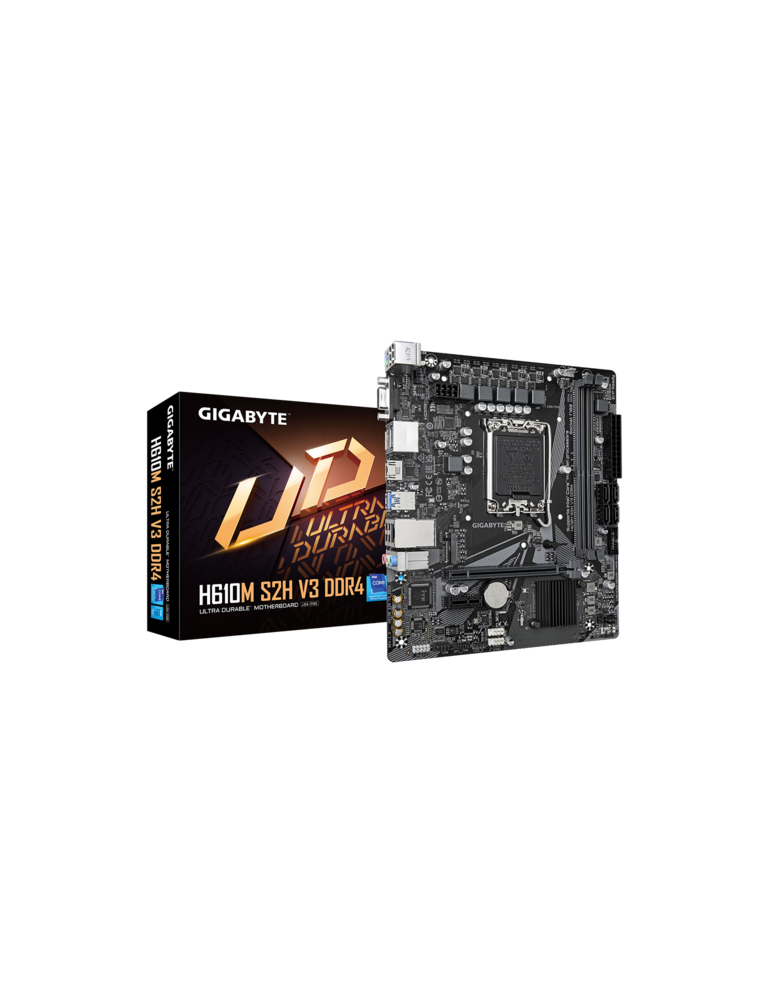

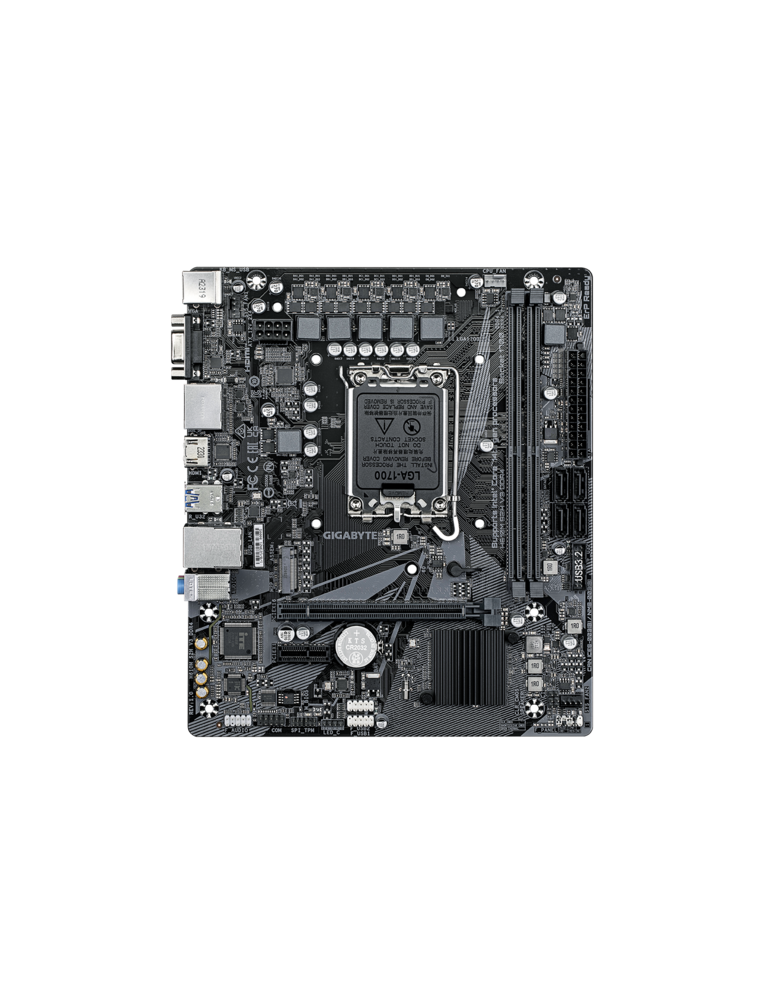

Дънна платка Gigabyte H610M S2H V3 DDR4, LGA1700
Дънна платка Gigabyte H610M S2H V3 DDR4, LGA1700
Дънна платка Gigabyte H610M S2H V3 DDR4, LGA1700
Дънна платка Gigabyte H610M S2H V3 DDR4, LGA1700

Дънна платка Gigabyte H610M S2H V3 DDR4, LGA1700

Gigabyte
75,00 €
Цената е с включен ДДС.

GB H610 2xDDR4 4xSATA3 HDMI 2DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1

Наличност във външен склад

CPU's supported LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU
Тип памет Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Чипсет Intel® H610 Express Chipset
Видео карта Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.; - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time
Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support); - 4 x SATA 6Gb/s connectors

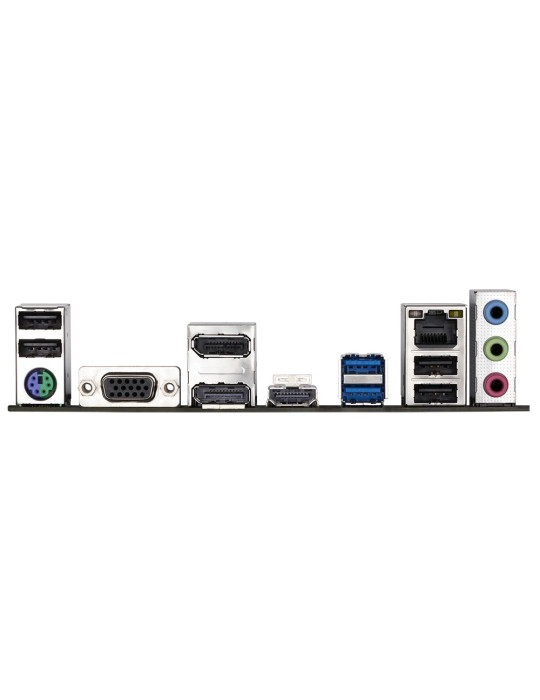

Вх/Изх 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 2 x DisplayPorts; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Конектори 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x chassis intrusion header
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps
BIOS 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм фактор Micro ATX Form Factor; 22.3cm x 19.3cm
OS Support for Windows 11 64-bit; Support for Windows 10 64-bit
Гаранция 36 Months

  • Марка
  • Референция
    H610M S2H V3 DDR4
  • В наличност
    1 Артикул

  • Производител
    Gigabyte
  • Сокет
    LGA1700
  • Чипсет
    Intel H610
  • Поддържани процесори
    Intel
  • Поддържана памет на дънна платка
    DDR4
  • Форм фактор
    Micro ATX
  • RAM слотове
    2
  • Гаранция
    36 месеца
  • Портове на лаптоп
    3.5 mm Mono Mic
    3.5 mm Mono Out
    Display Port
    HDMI
    M.2 PCI-E за SSD
    M.2 SATA за SSD
    RJ-45 LAN
    USB 2
    USB 3
    VGA (D-SUB)
