Дънна платка AsRock H610M-HDV/M.2 R2.0, LGA1700
Дънна платка AsRock H610M-HDV/M.2 R2.0, LGA1700
Дънна платка AsRock H610M-HDV/M.2 R2.0, LGA1700
Дънна платка AsRock H610M-HDV/M.2 R2.0, LGA1700
Дънна платка AsRock H610M-HDV/M.2 R2.0, LGA1700

Дънна платка AsRock H610M-HDV/M.2 R2.0, LGA1700

Asrock
68,00 €
Цената е с включен ДДС.
Дънна платка ASROCK Main Board Desktop H610M-HDV/M.2 (S1700, 2x DDR4, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 4x SATA3 6.0Gb/s, 1x m.2 PCIe, 4x USB 3.2, 6x USB 2.0, 1x Com port header, 1x VGA, 1x HDMI, 1x DP 1.4, 1x GLAN, mATX) Retail - H610M-HDV/M.2 R2.0
Наличност във външен склад

CPU's supported- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); - 6+1+1 Power Phase design; - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
Тип паметDual Channel DDR4 Memory Technology; 2 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 3200; Supports ECC UDIMM memory modules (operate in non-ECC mode); Max. capacity of system memory: 64GB*; Supports Intel® Extreme Memory Profile (XMP) 2.0
Чипсет- Intel® H610
Видео картаIntel® Xe Graphics Architecture (Gen 12); Three graphics output options: D-Sub, HDMI and DisplayPort 1.4; Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Expansion SlotsCPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*' Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)
StorageChipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

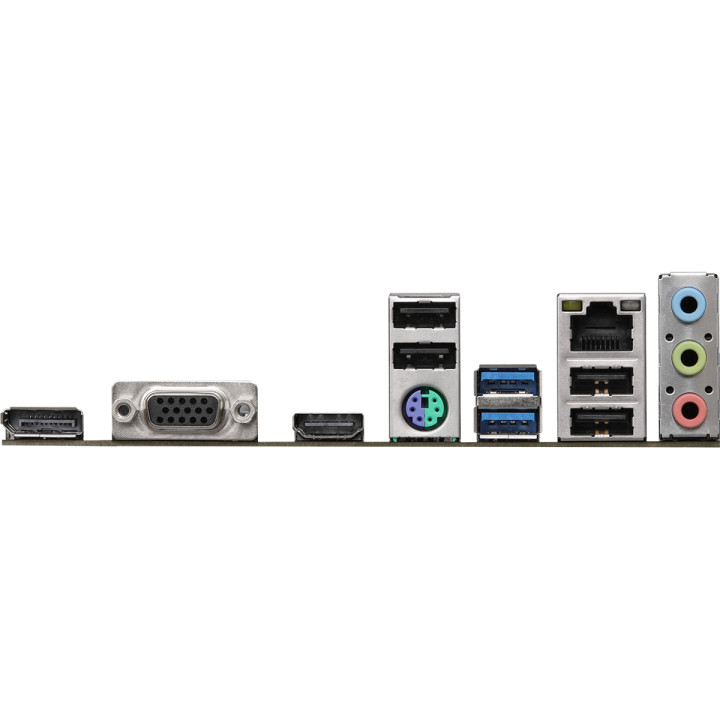

Вх/Изх1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); 4 x USB 2.0 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone
Конектори1 x SPI TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin)*; 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Connector; 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection
LANPCIE x1 Gigabit LAN 10/100/1000 Mb/s; 1 x Realtek RTL8111H; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE
BIOS128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; PU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
Форм факторMicro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm; Solid Capacitor design
OS- Microsoft® Windows® 10 64-bit / 11 64-bit
Гаранция36 Months

  • Марка
  • Референция
    H610M-HDV/M.2 R2.0
  • В наличност
    15 Артикула
  • EAN13
    4710483939860

  • Производител
    Asrock
  • Сокет
    LGA1700
  • Чипсет
    Intel H610
  • Поддържани процесори
    Intel
  • Поддържана памет на дънна платка
    DDR4
  • Форм фактор
    Micro ATX
  • RAM слотове
    2
  • Гаранция
    36 месеца
  • Портове на лаптоп
    3.5 mm Mono Mic
    3.5 mm Mono Out
    Display Port
    HDMI
    M.2 PCI-E за SSD
    PS/2
    RJ-45 LAN
    USB 2
    USB 3
    VGA (D-SUB)
