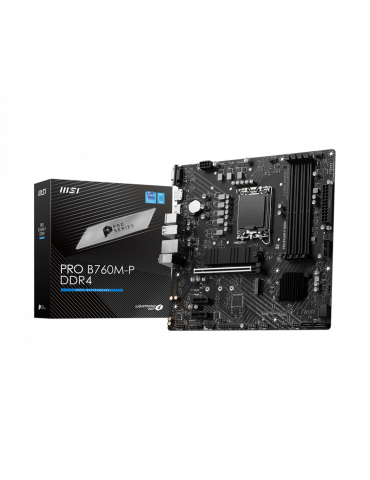

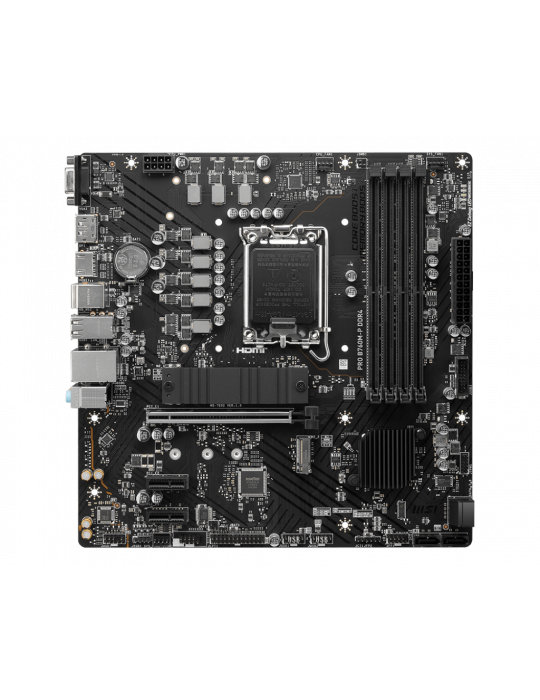

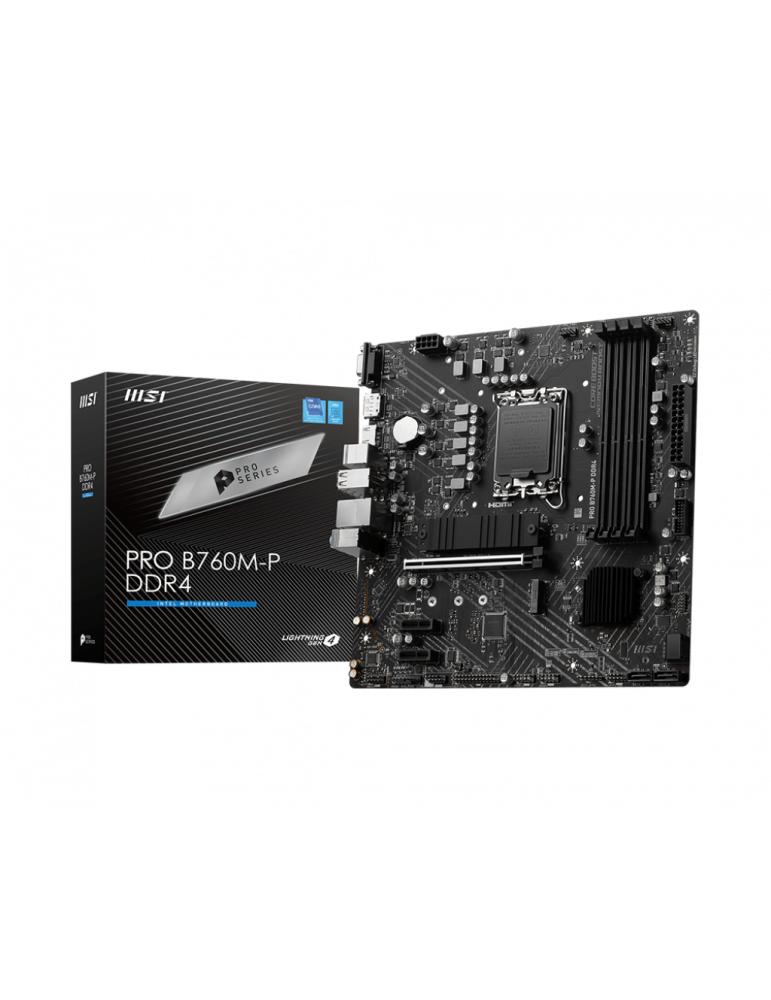

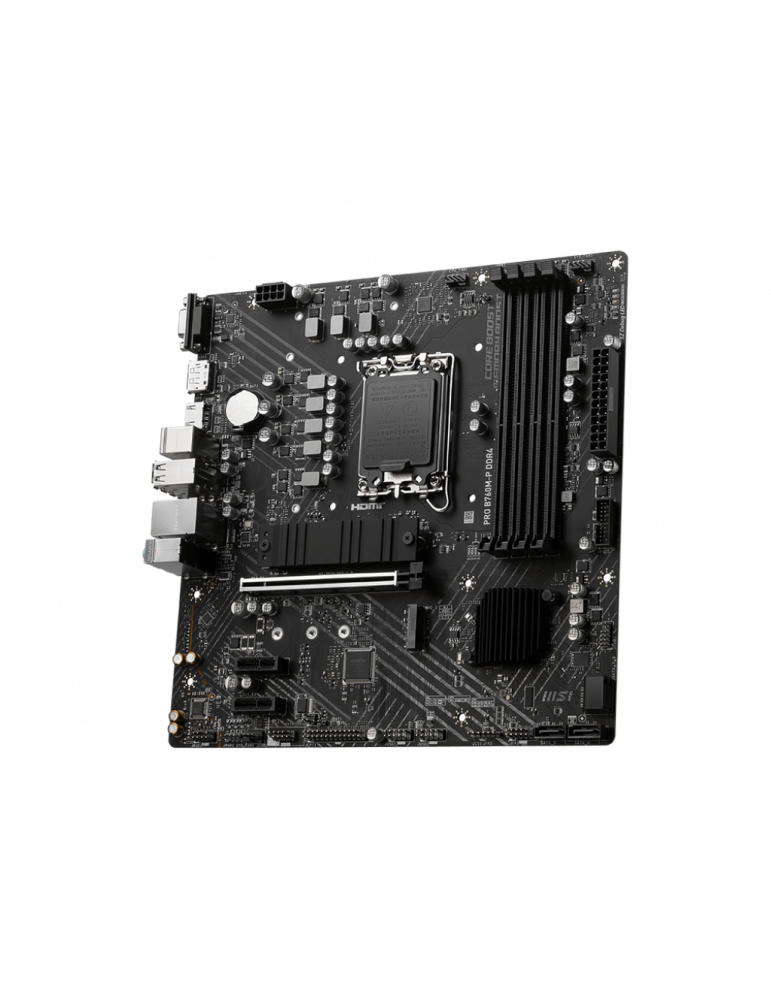

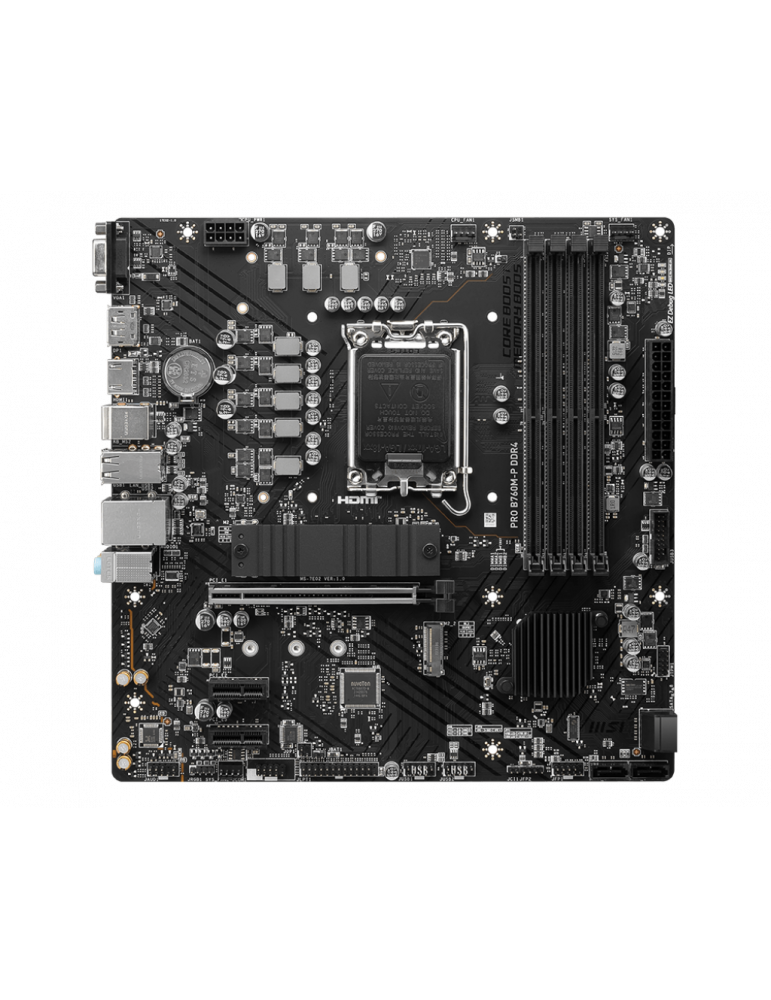

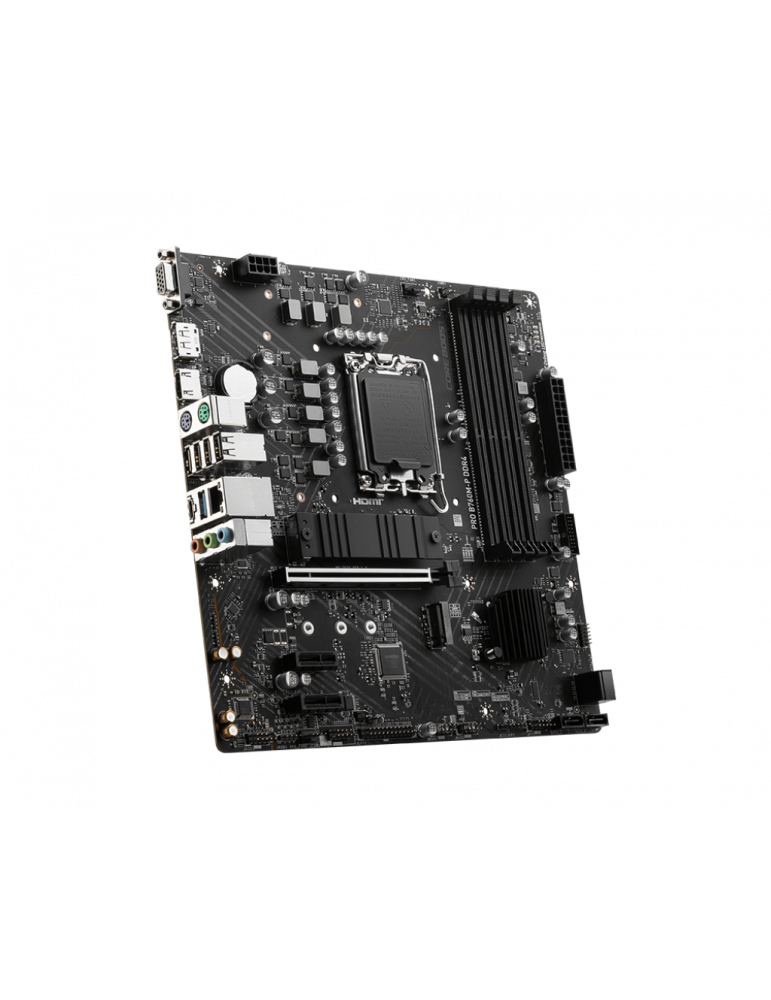

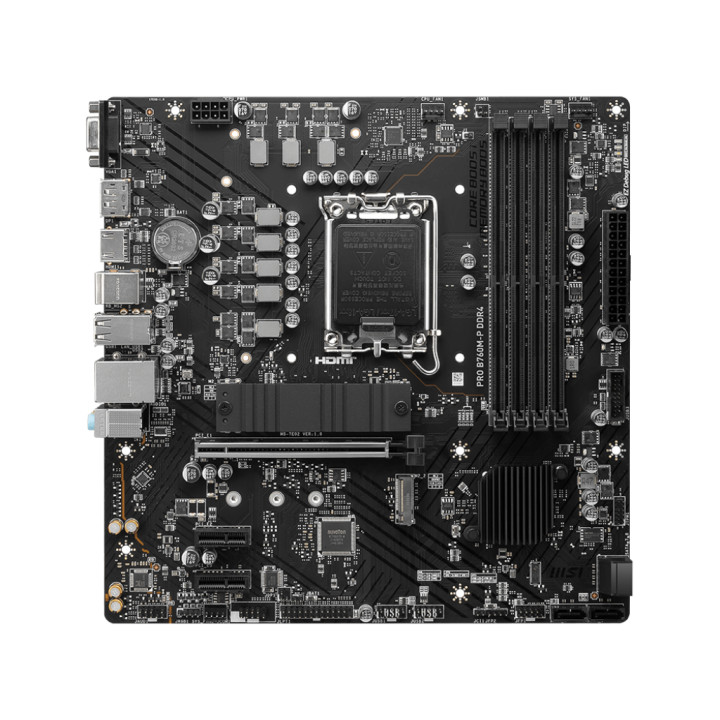

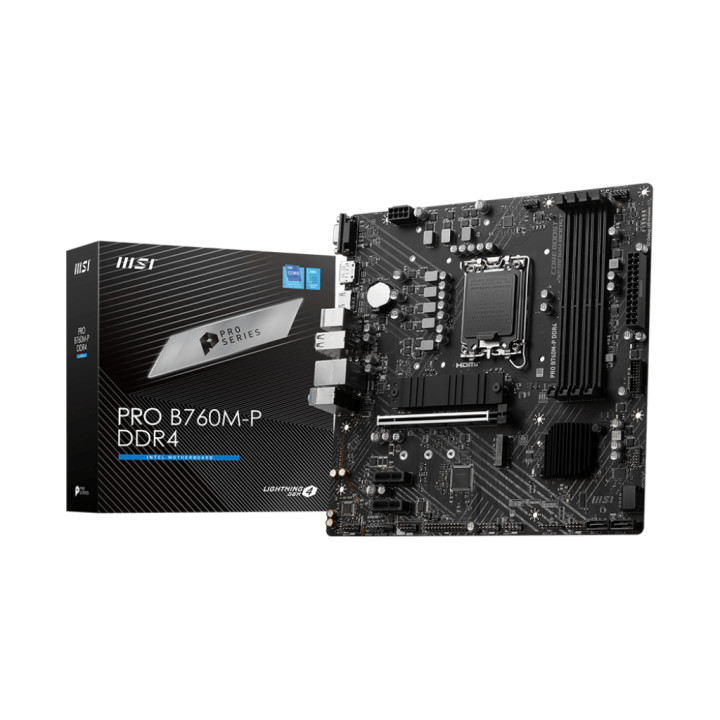

Дънна платка MSI PRO B760M-P, LGA1700 - 911-7E02-009

Дънна платка MSI PRO B760M-P, LGA1700 - 911-7E02-009

Name: Дънна платка MSI PRO B760M-P, LGA1700 - 911-7E02-009
Brand: MSI
SKU: 911-7E02-009
Price: 103 EUR
Availability: OutOfStock

MSI

103,00 €

Цената е с включен ДДС.

Няма наличност

Изпрати ми известие, когато има наличност

Interested in this product? Drop us an email and we will let you know when it's available for order.

Видео карта	1x HDMI™; Support HDMI™ 1.4, maximum resolution of 4K 30Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
CPU's supported	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Expansion Slots	1x PCI-E x16 slot; 2x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
Тип памет	4x DDR4, Maximum Memory Capacity 128GB; Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)

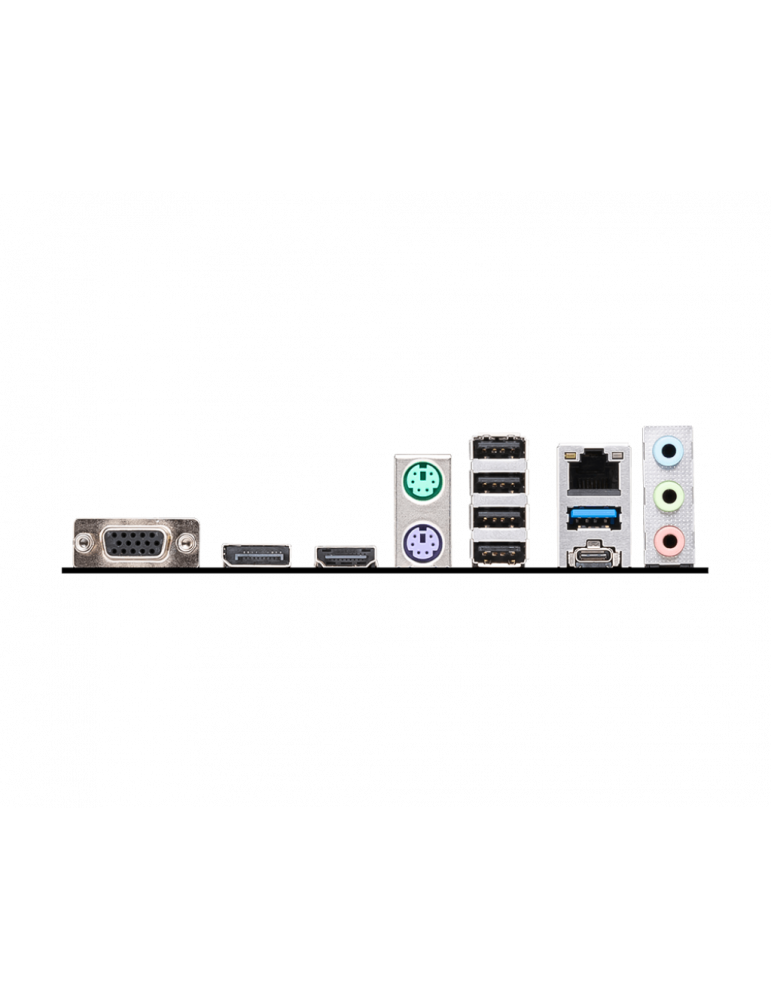

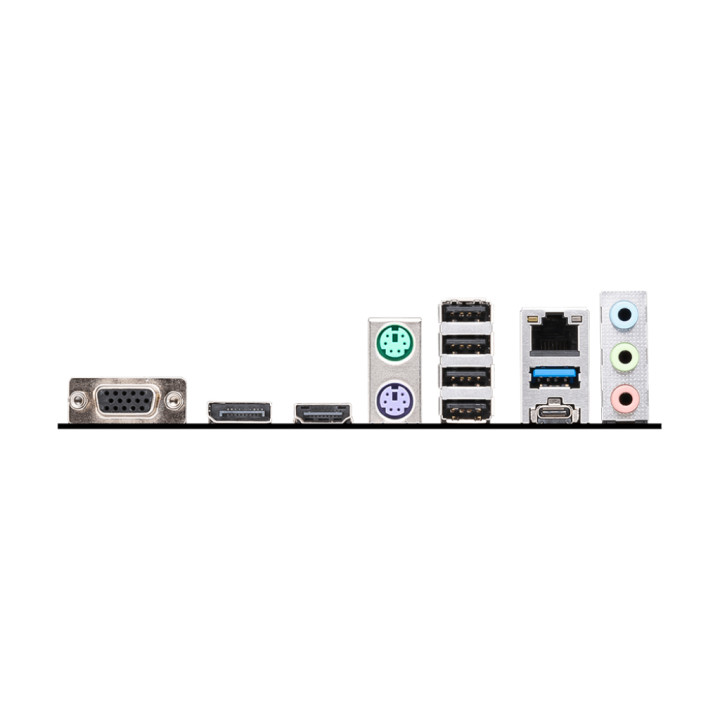

Вх/Изх	VGA; DisplayPort; HDMI™; Keyboard / Mouse; USB 2.0; LAN port; Audio Connectors; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-C)
Конектори	1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports
Audio	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
LAN	Realtek® RTL8111H Gigabit LAN
Форм фактор	mATX,243.84mmx243.84mm
OS	Support for Windows® 11 64-bit, Windows® 10 64-bit
Гаранция	36 Months

Марка
Референция

911-7E02-009

Производител

MSI
Сокет

LGA1700
Чипсет

Intel B760
Поддържани процесори

Intel
Поддържана памет на дънна платка

DDR4
DDR5
Форм фактор

Micro ATX
RAM слотове

4
Гаранция

36 месеца
Портове на лаптоп

Display Port
HDMI
M.2 PCI-E за SSD
RJ-45 LAN
USB 2
USB 3
USB Type C
VGA (D-SUB)
