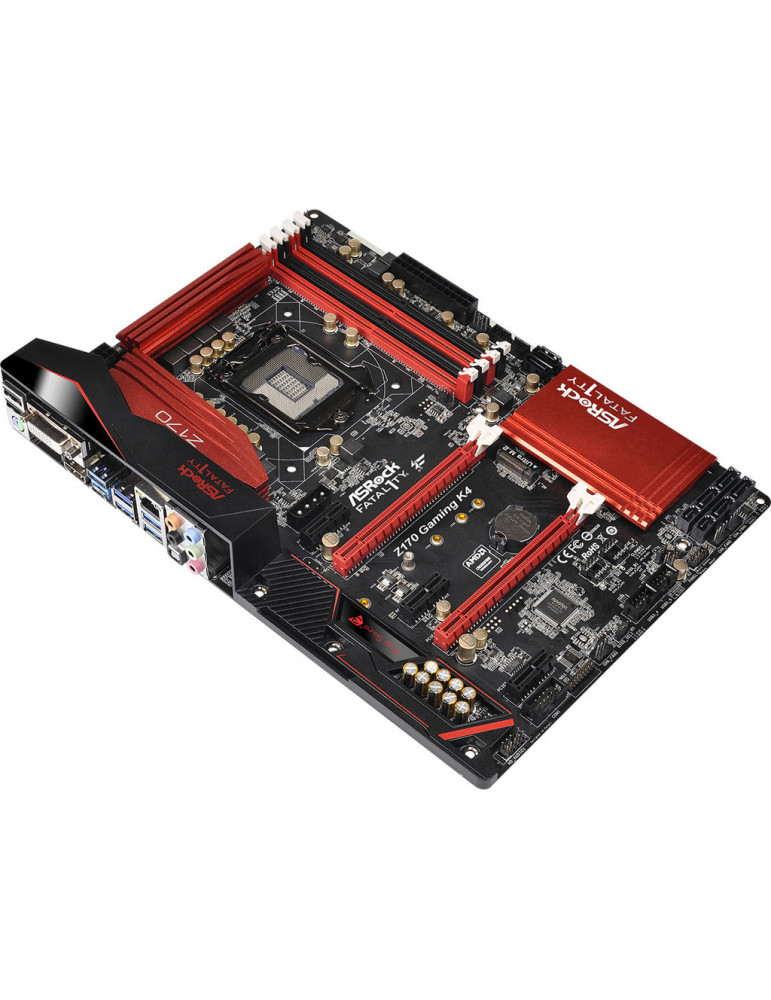

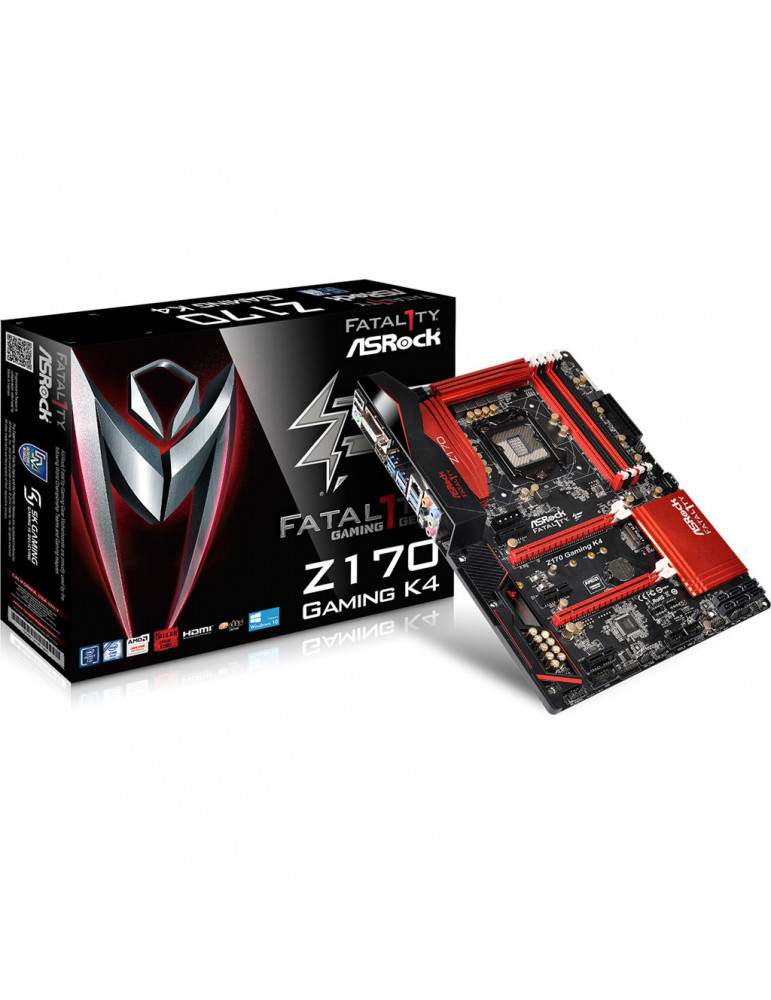

Дънна платка Asrock Fatal1ty Z170 GAMING K4 LGA1151

Realtek ALC1150 Audio Codec

2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)
3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
15? Gold Contact in VGA PCIe Slot (PCIE2)

1 x PS/2 Mouse/Keyboard Port
1 x DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
5 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 14 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
2 x SATA Express 10 Gb/s Connectors
1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x PCIe Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
