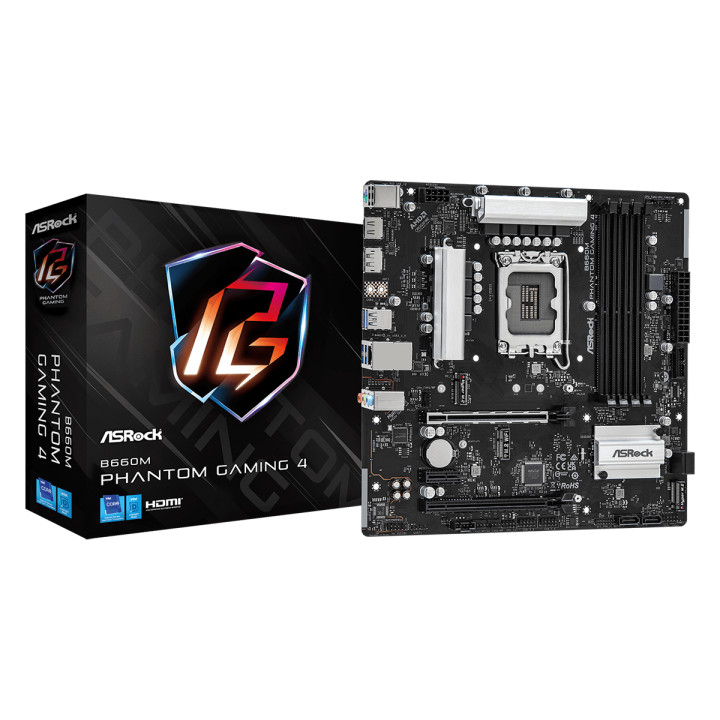

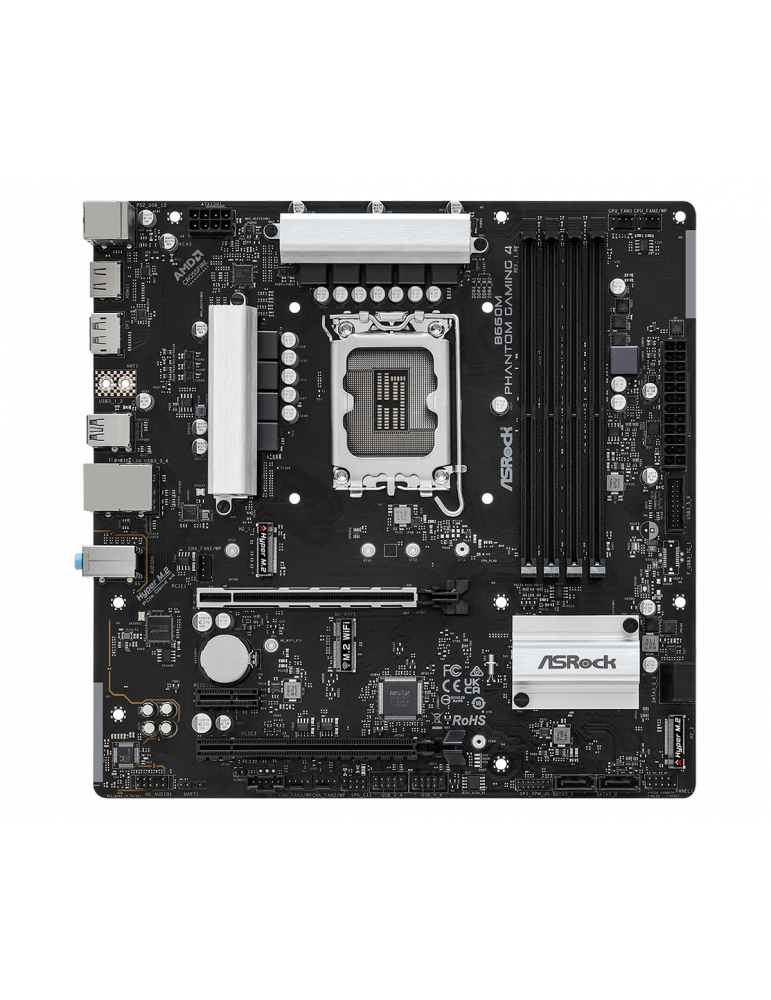

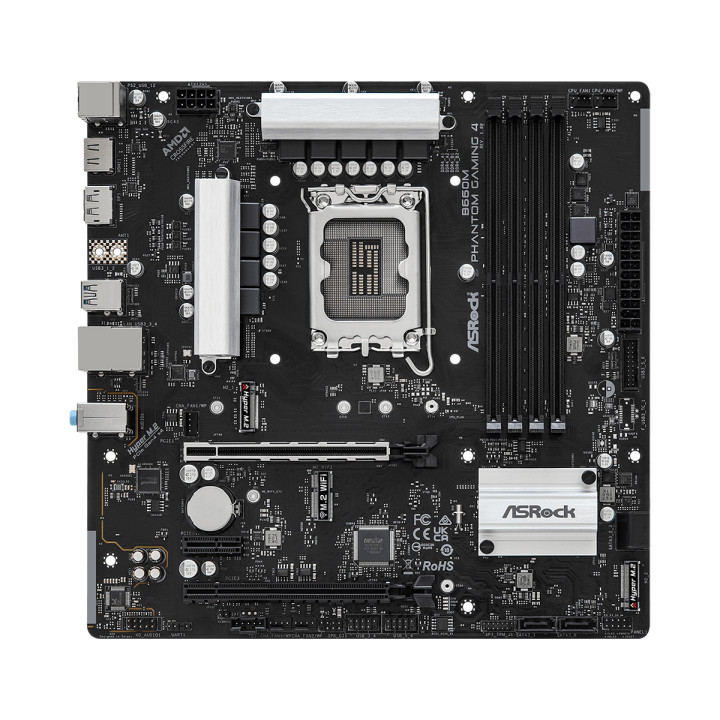

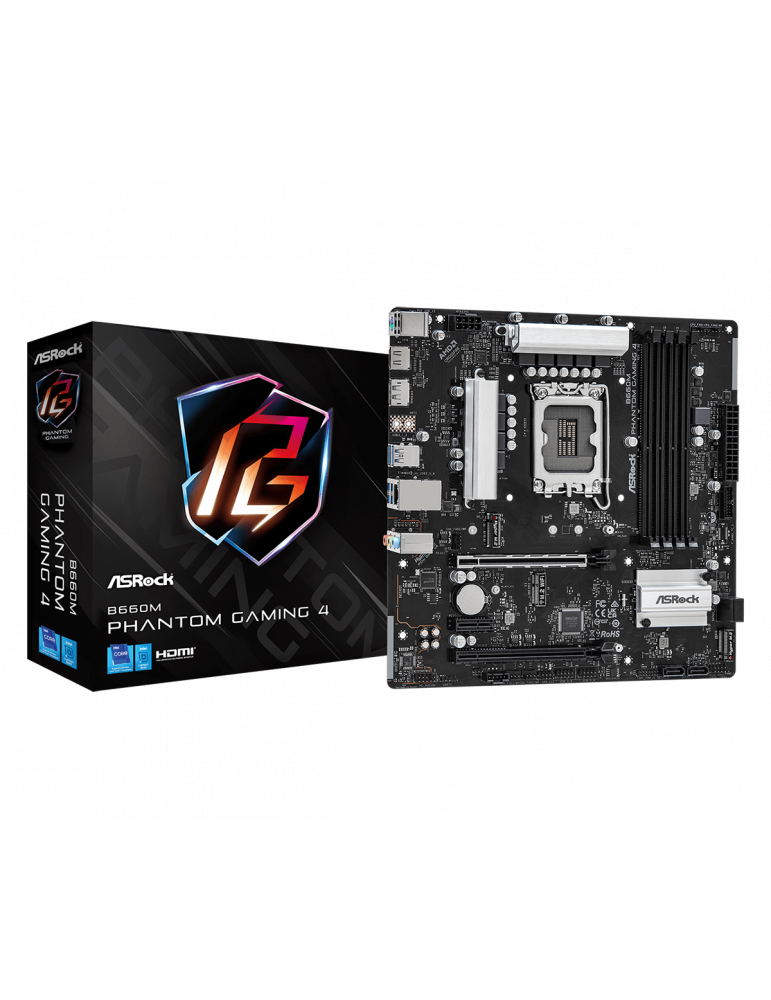

Дънна платка AsRock B660M Phantom Gaming 4, LGA1700, 4xDDR4, 2xM.2 PCIe, DP, HDMI, mATX

Дънна платка AsRock B660M Phantom Gaming 4, LGA1700, 4xDDR4, 2xM.2 PCIe, DP, HDMI, mATX

Name: Дънна платка AsRock B660M Phantom Gaming 4, LGA1700, 4xDDR4, 2xM.2 PCIe, DP, HDMI, mATX
Brand: Asrock
SKU: B660M PHANTOM GAMING 4
Price: 118.11 EUR
Availability: OutOfStock

Asrock

118,11 €

Цената е с включен ДДС.

Дънна платка AsRock B660M Phantom Gaming 4 (S1700, B660M, 4xDDR4, 2x PCIe x16, 1x PCIe 3x1, 4xSATA, 2xM.2 PCIe, 6x USB 3.2, 6x USB 2.0, DP, HDMI, GLAN, mATX) Retail. - B660M PHANTOM GAMING 4

Няма наличност

Банка ДСК Купи на лизинг 12 вноски по 10.48 € (20.50 лв.) Калкулатор ›

Изпрати ми известие, когато има наличност

Interested in this product? Drop us an email and we will let you know when it's available for order.

Сокет	- Intel® B660
Видео карта	- Intel® Xe Graphics Architecture (Gen 12); - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
CPU's supported	- Supports 12th Gen Intel® Core™ Processors (LGA1700); - Digi Power design; - 8 Power Phase design; - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
Expansion Slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode; - 1 x PCIe 3.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT); - Supports AMD CrossFire™
Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 4 x SATA3 6.0 Gb/s Connectors
Тип памет	- Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 128GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0

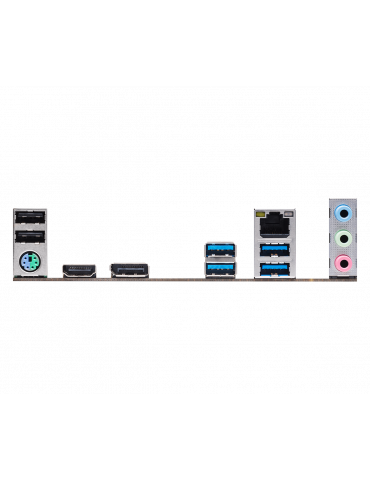

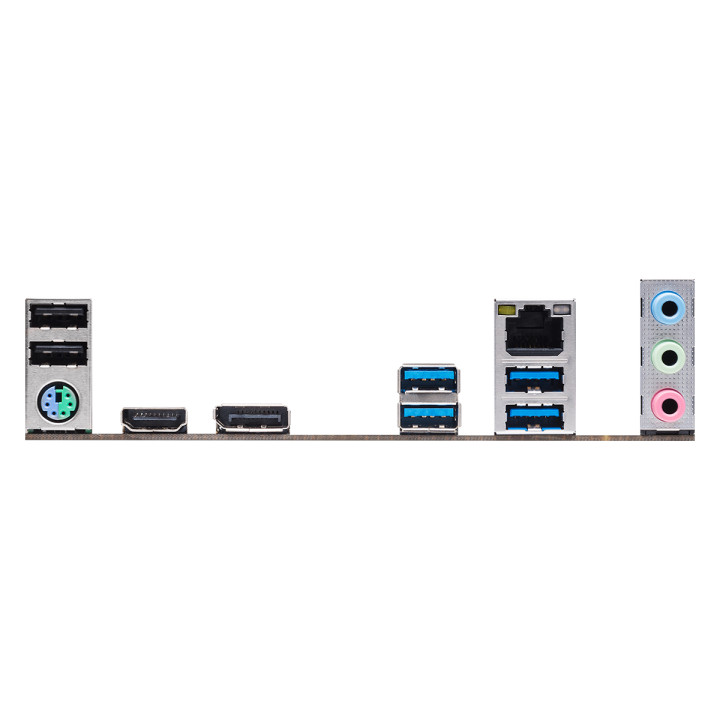

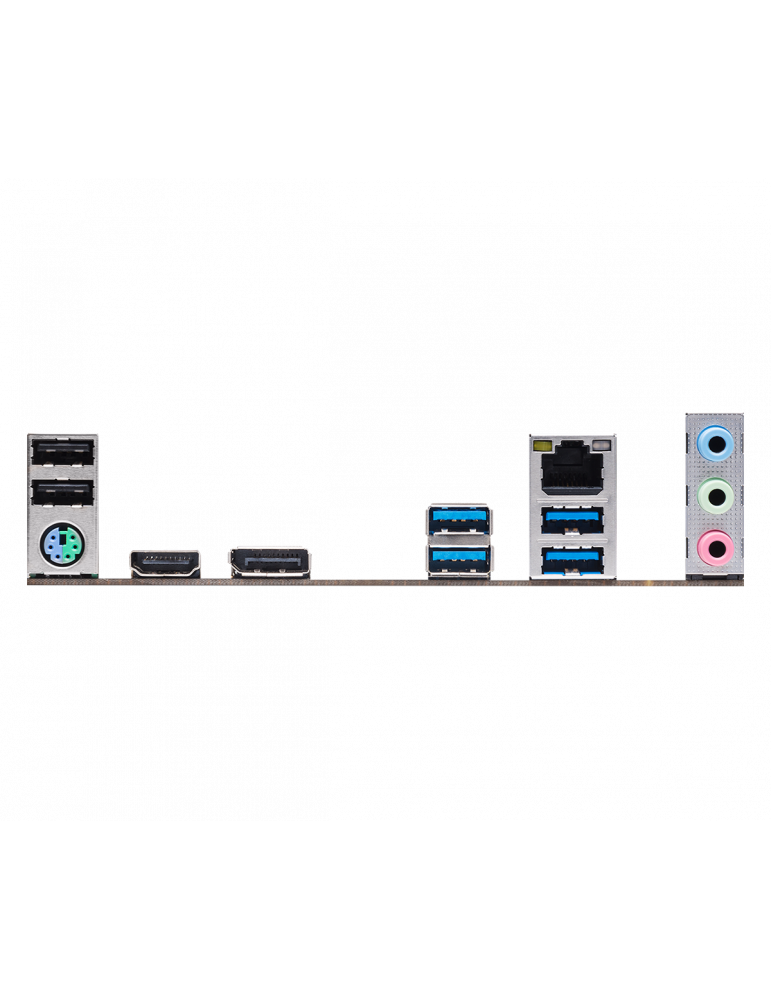

Вх/Изх	- 3 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection); - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Конектори	- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Supports Surge Protection; - Nahimic Audio
LAN	- Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports UEFI PXE
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Форм фактор	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - Solid Capacitor design
OS	- Microsoft® Windows® 10 64-bit / 11 64-bit
Гаранция	36 Months
