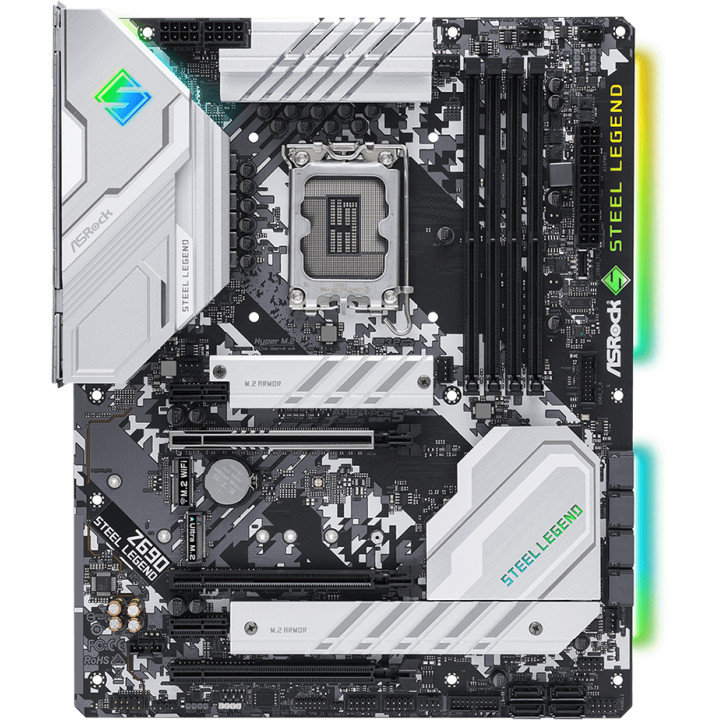

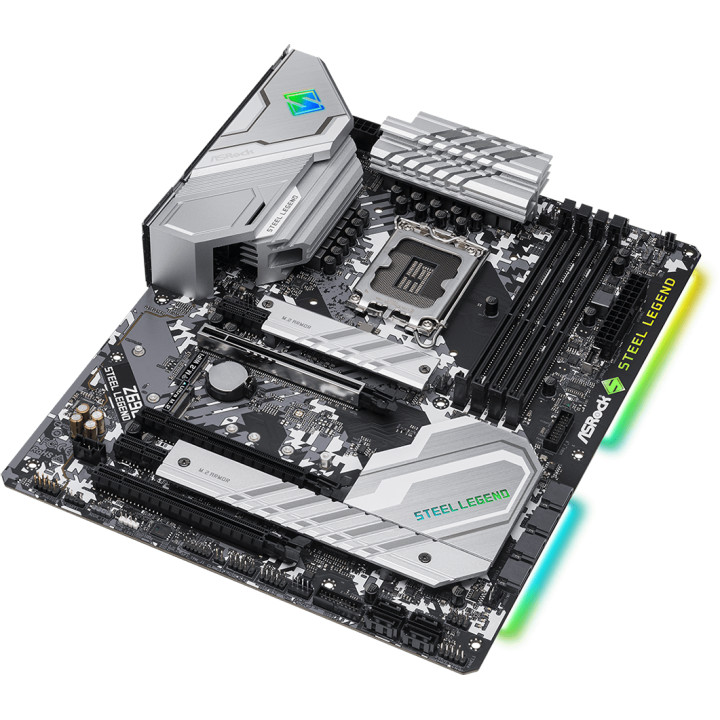

Дънна платка ASRock Z690 Steel Legend, LGA1700

Дънна платка ASRock Z690 Steel Legend, LGA1700

Name: Дънна платка ASRock Z690 Steel Legend, LGA1700
Brand: Asrock
SKU: ASR-MB-Z690-STEEL-LEGEND
Price: 188.67 EUR
Availability: OutOfStock

Asrock

188,67 €

Цената е с включен ДДС.

Дънна платка ASRock Z690 Steel Legend, LGA1700, ATX, Polychrome RGB

Няма наличност

TBI Bank Купи на лизинг 13 вноски по 16.40 € (32.08 лв.) Калкулатор ›

Изпрати ми известие, когато има наличност

Interested in this product? Drop us an email and we will let you know when it's available for order.

CPU Socket	1700
Чипсет	Intel Z690
Поддържани процесори	Supports 12th Gen Intel® Core™ Processors (LGA1700)
Форм фактор	ATX
Поддържана памет	DDR4
Максимален капацитет RAM памет	128 GB
Слотове памет	4
Честота памет	Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
Поддръжка на Dualchannel	Да
Графична карта	Intel® Xe Graphics Architecture (Gen 12)
Вградено аудио	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Вграден LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Вграден Wi-Fi	2.5G LAN 802.11ax Wi-Fi 6E
Слотoве PCI-E x16	1 x PCIe 4.0 x16
Слотoве PCI-E x16	1 x PCIe 5.0 x16
Слотoве PCI-E x16	1 x PCIe 3.0 x16
Слотoве PCI-E x1	2
Интерфейс Serial ATA	8 x SATA3 6.0 Gb/s
М2 слот	Supports Intel® Optane™ Technology
М2 слот	1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
М2 слот	1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
М2 слот	1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
Поддръжка на RAID	0, 1, 5, 10
Конектор захранване	1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
Конектор захранване	2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Видео слот	PCI Express
Мулти GPU технология	Supports AMD Quad CrossFireX™ and CrossFireX™
Свързаност	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
USB Type-C	1
USB 3.2	1 x USB 3.2 Gen 2 Type-A
USB 3.2	4 x USB 3.2 Gen 1 Type-A
Размери	30.5 cm x 24.4 cm
Поддържани технологии	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer

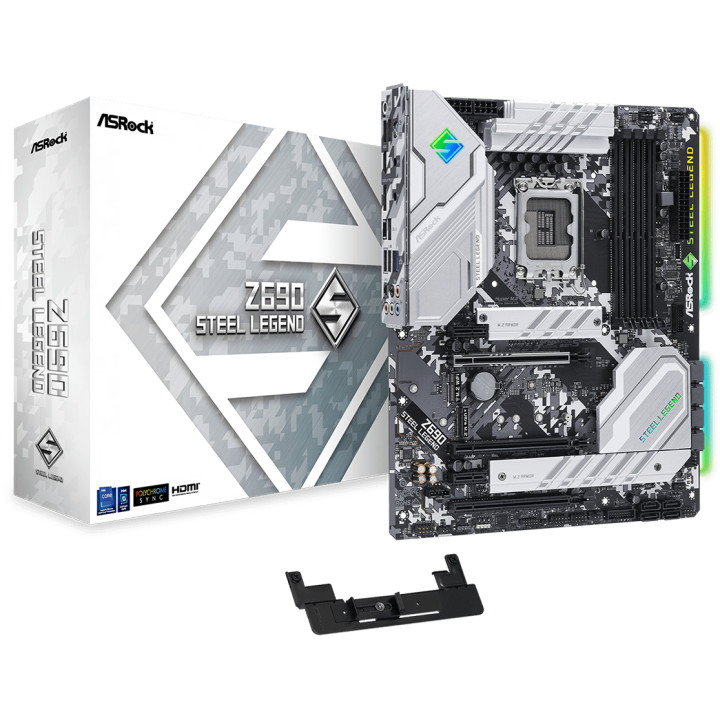

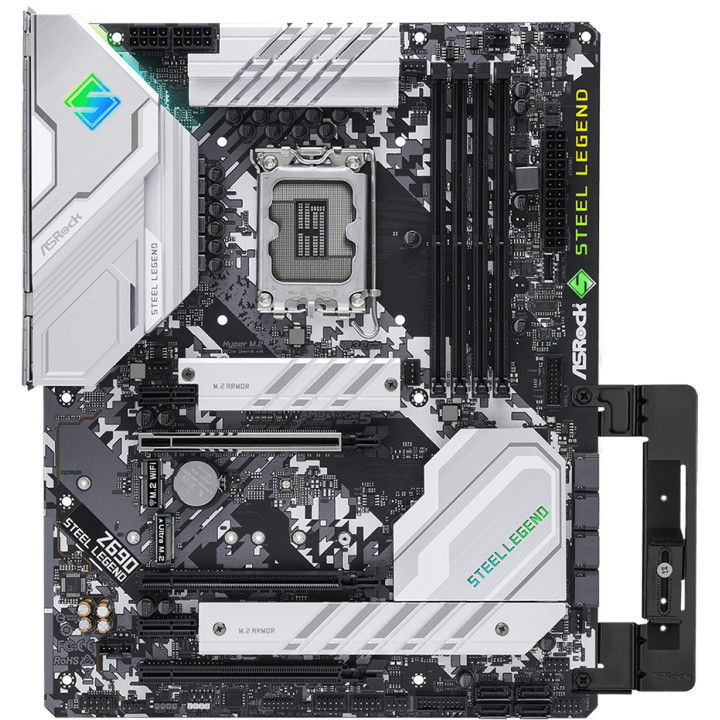

Комплектът включва	- Quick Installation Guide, Support CD - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets - 1 x Graphics Card Holder
Други	256Mb AMI UEFI Legal BIOS with multilingual GUI support
Гаранция(месеци)	36
