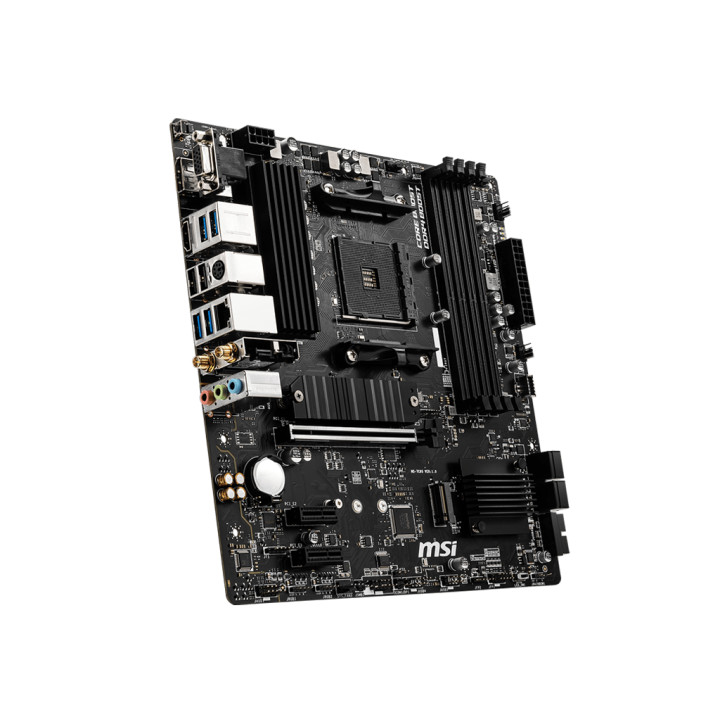

Дънна платка MSI B550M PRO-VDH WiFi - 911-7C95-008

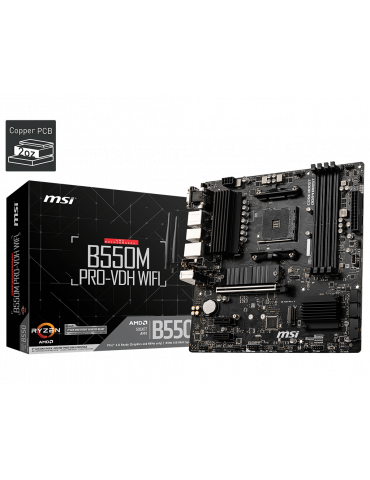

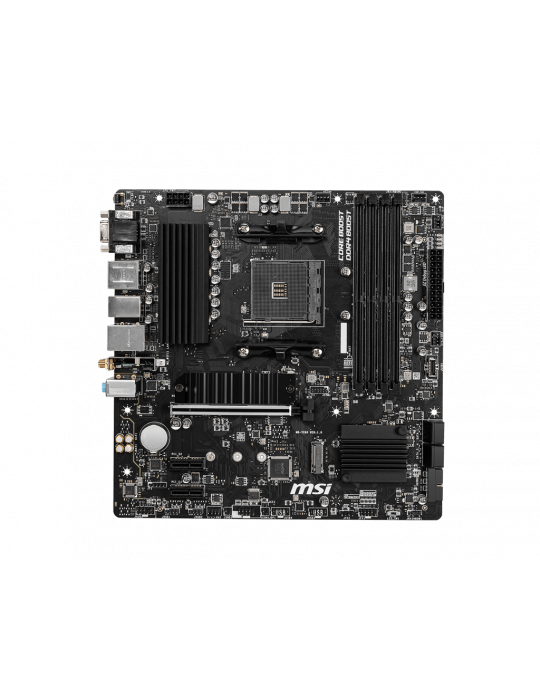

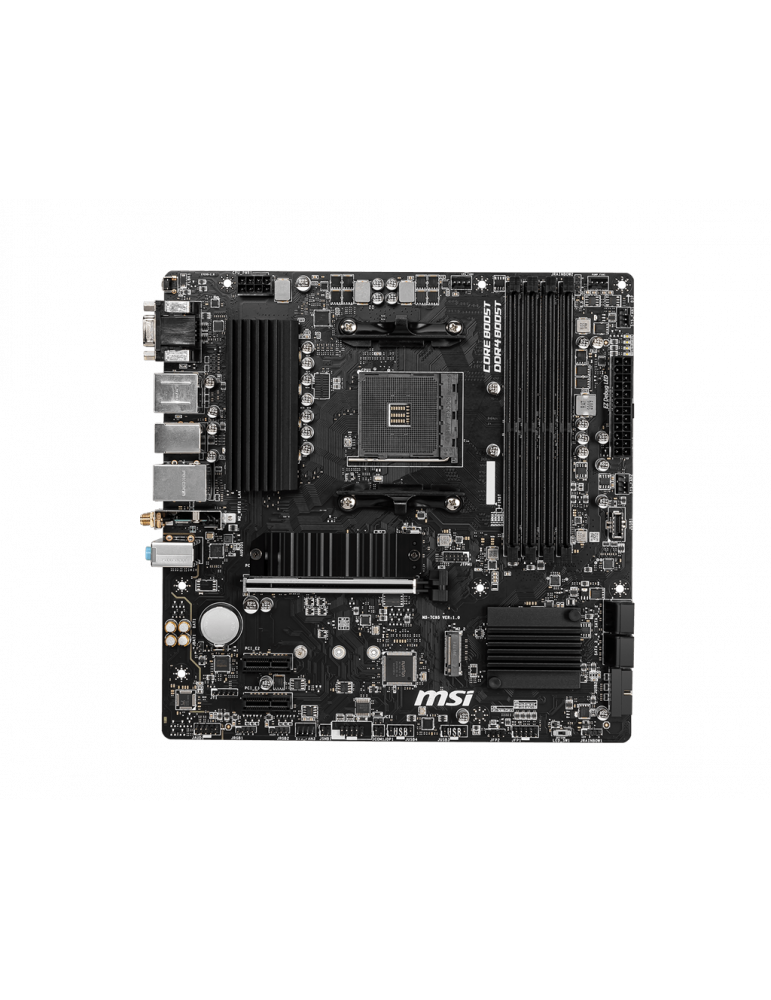

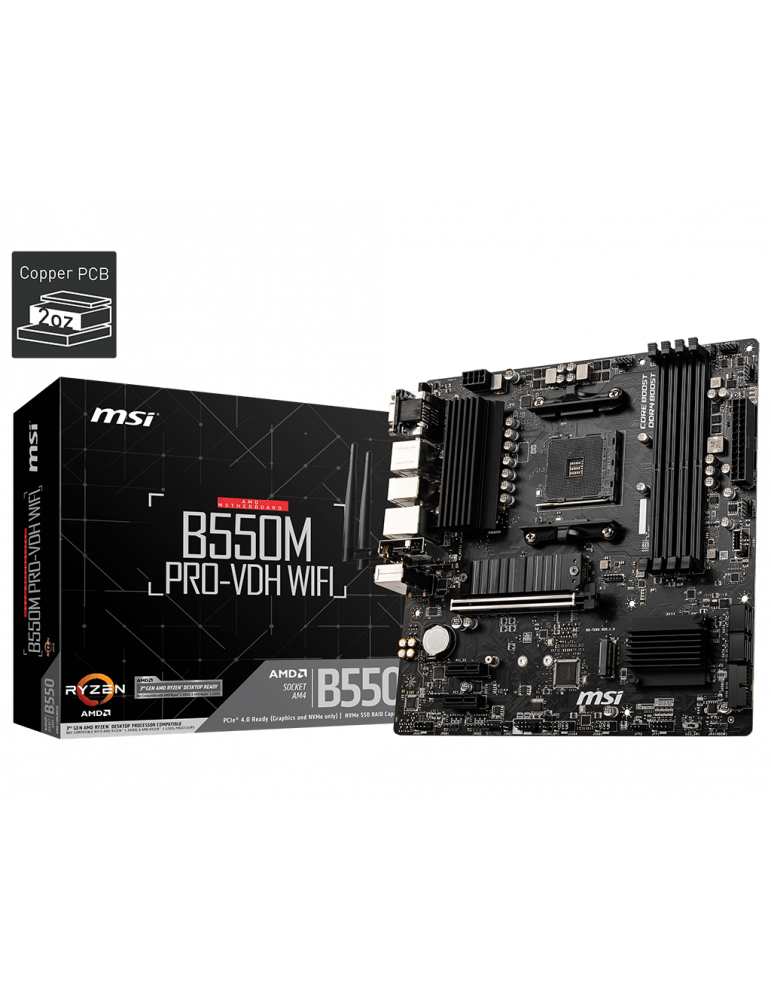

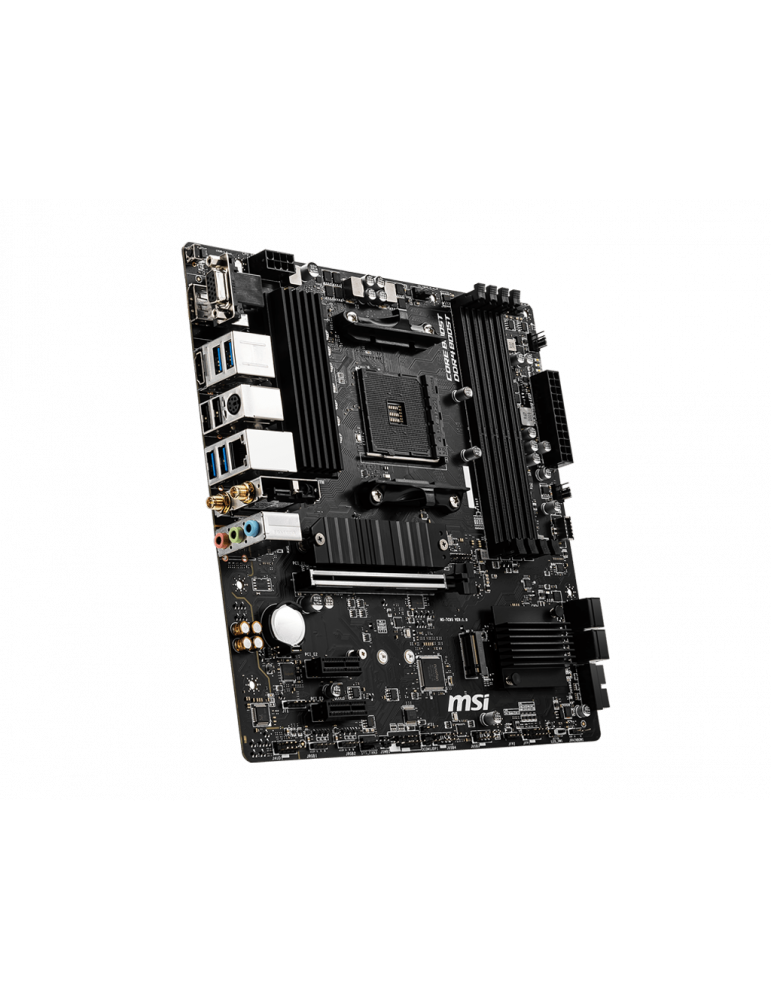

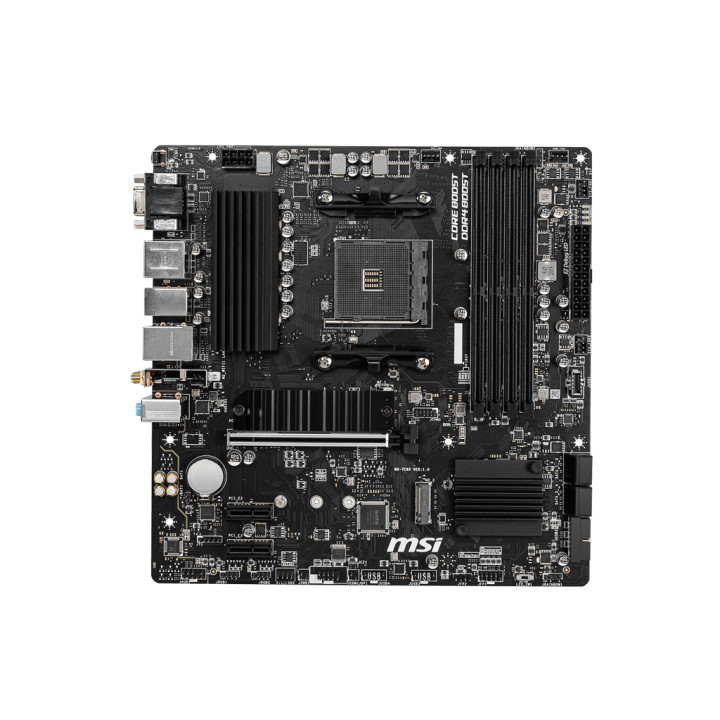

MSI B550M PRO-VDH WIFI
24 месеца
232,00 лв.
Условия за доставка
Вземи желания продукт сега, избери подходяща за теб схема на изплащане:
Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!
Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
Поръчка без регистрация
Само попълнете 4 полета| Audio | Realtek® ALC892 Codec; 7.1-Channel High Definition Audio |
| Chipset | AMD B550 Chipset |
| Connectors | 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Serial port connector; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1xTPM module connector; 1x Clear CMOS jumper |
| CPU's supported | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |
| Expansion Slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 2x PCIe 3.0 x1 slots |
| Form Factor | Micro-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; Maximum shared memory of 16 GB |

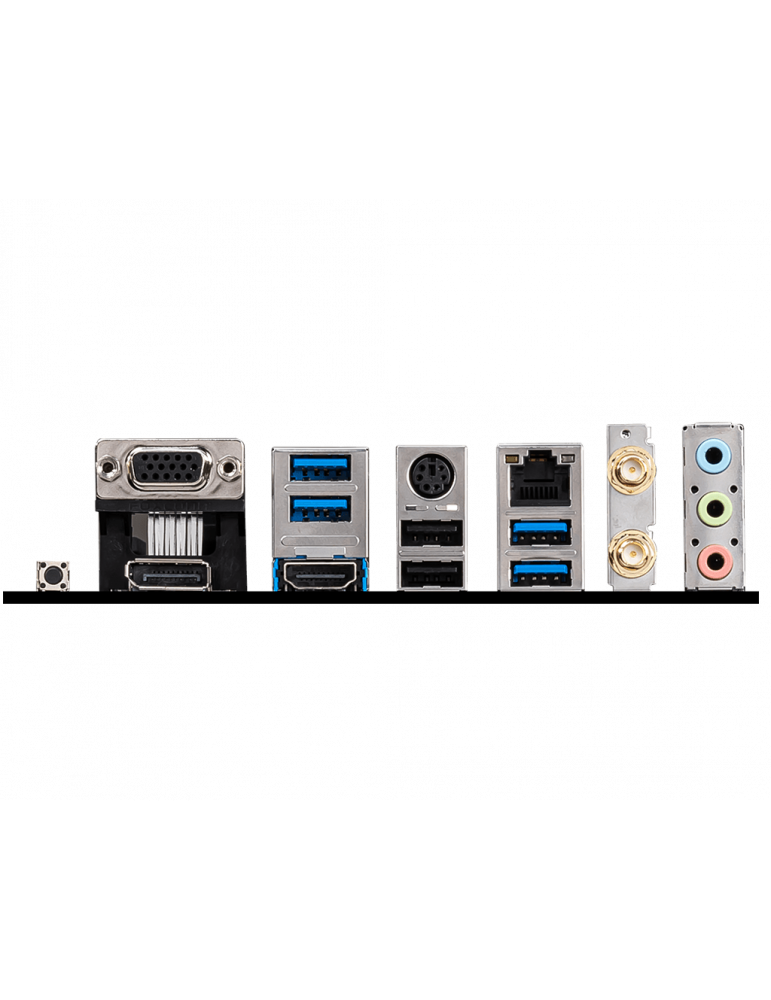

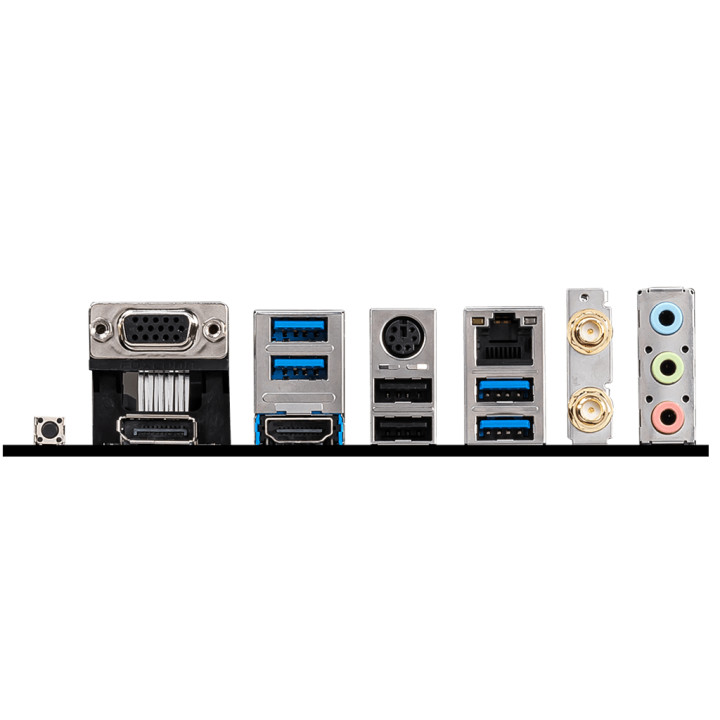

| I/O | VGA; USB 3.2 Gen 1 5Gbps Type-A; Keyboard / Mouse; LAN; Flash BIOS Button; DisplayPort; HDMI; USB 2.0; USB 3.2 Gen 1 5Gbps Type-A; Wi-Fi Antenna connectors; 3x Audio jacks |
| LAN | 1x Realtek® 8111HN Gigabit LAN controller |
| Memory type | 4x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory |
| Other | Intel® Dual Band Wireless-AC 3168; Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.; Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
| Storage | AMD B550 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices |
| Гаранция | 36 месеца |
MSI B550M PRO-VDH WIFI
Техническо описание
- MSI
- AM4
- AMD B550
- AMD
- DDR4
- Micro ATX
- 4
- 24 месеца
-
Display Port
HDMI
PS/2
RJ-45 LAN
USB 2
USB 3
VGA (D-SUB)
