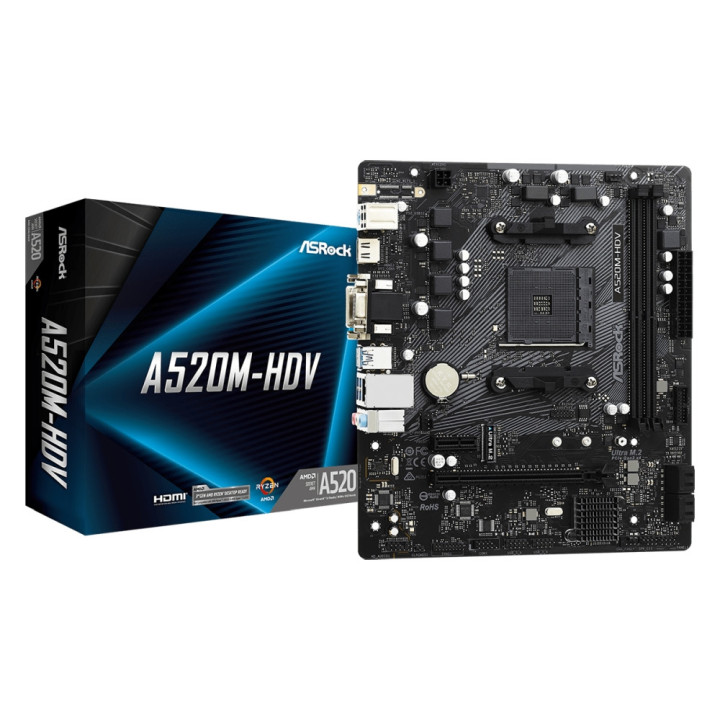

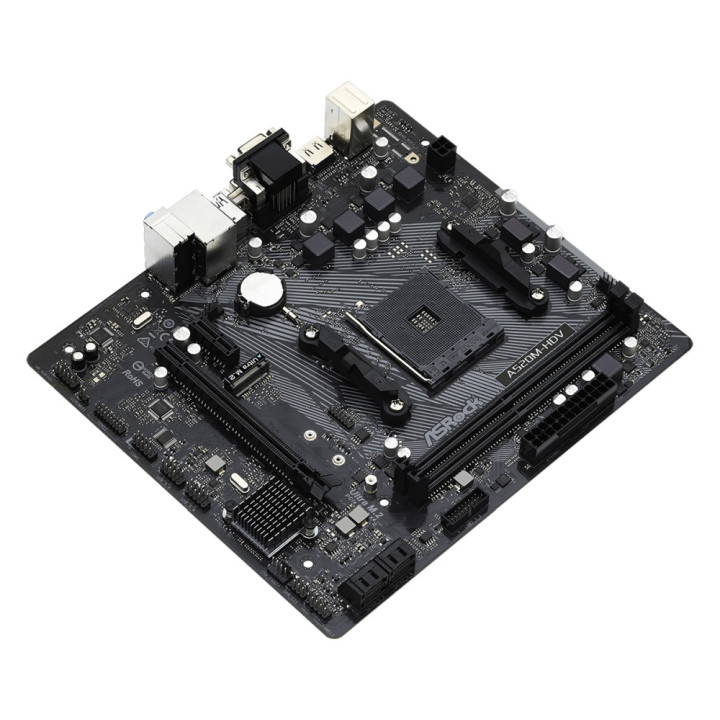

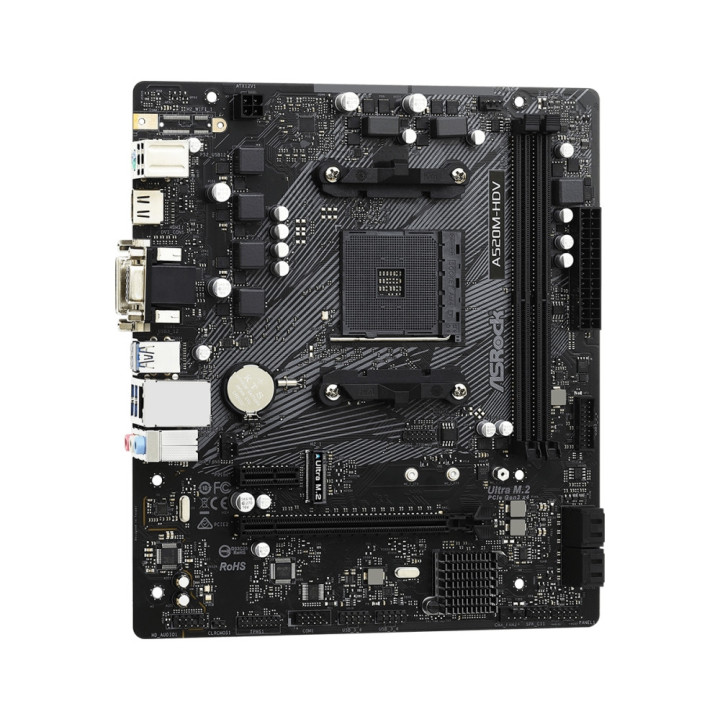

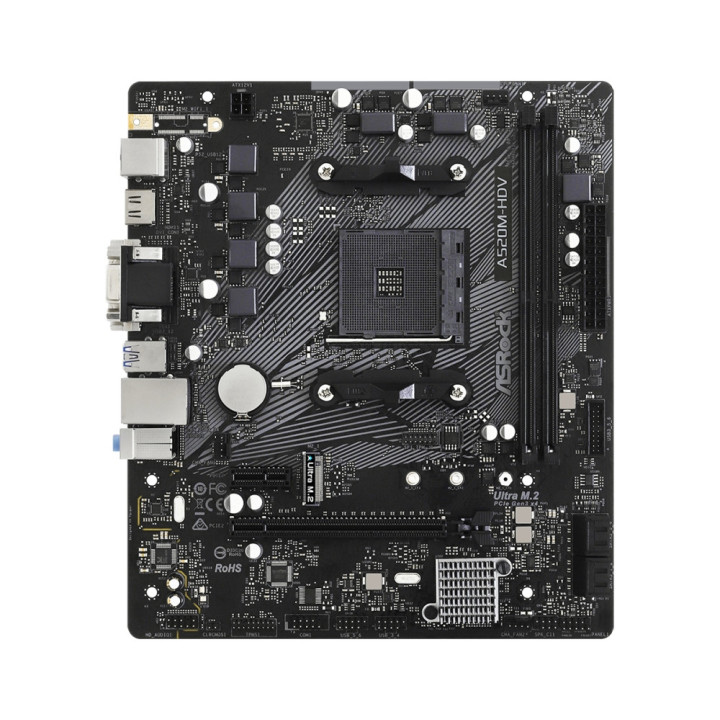

Дънна платка Asrock A520M-HDV

Name: Дънна платка Asrock A520M-HDV
Brand: Asrock
SKU: 90-MXBE50-A0UAYZ
Price: 58 EUR
Availability: InStock

Asrock

58,00 €

Цената е с включен ДДС.

Наличност във външен склад

BIOS	128Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
M.2 слот	1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Аудио	7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection

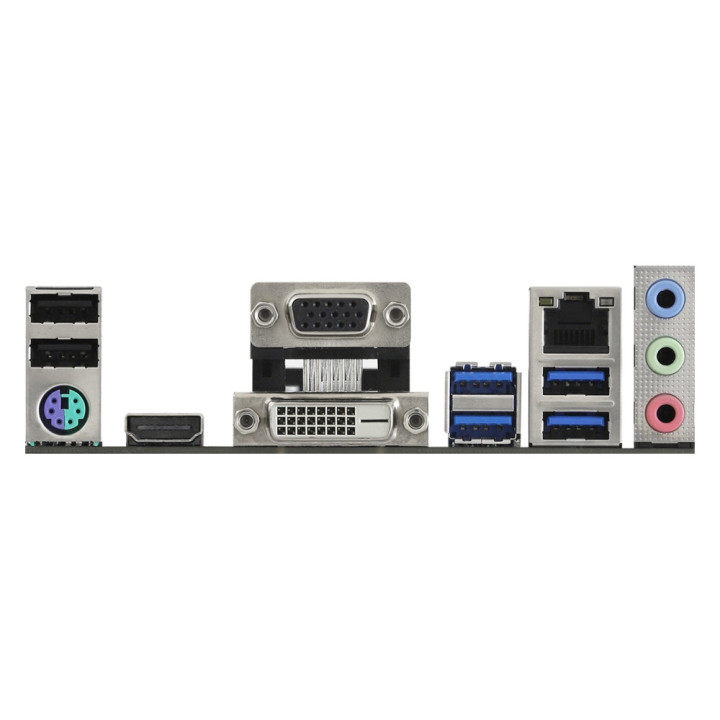

Интерфейс	1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports(Supports ESD Protection), 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone.
Конектори	1 x SPI TPM Header, 1 x COM Port Header, 1 x Chassis Intrusion and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header.
Мрежа	PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE.
Операционна система	Microsoft Windows 10 64-bit
Памет, слотове	2 x DDR4 DIMM Slots, Max. capacity of system memory: 64 GB, Dual Channel DDR4 Memory Technology
Процесор	AMD AM4 Ryzen
Серия	HDV
Слотове	1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode), 1 x PCI Express 3.0 x1 Slot.
Софтуер	ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN.
Специални функции	ASRock Super Alloy, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop.
Форм-фактор	Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm, Solid Capacitor design.
Чипсет	AMD A520

Марка
Референция

90-MXBE50-A0UAYZ
В наличност

15 Артикула
EAN13

4710483932267

Производител

Asrock
Сокет

AM4
Чипсет

AMD A520
Поддържани процесори

AMD
Поддържана памет на дънна платка

DDR4
Форм фактор

Micro ATX
RAM слотове

2
Гаранция

36 месеца
Портове на лаптоп

DVI
HDMI
M.2 PCI-E за SSD
PS/2
RJ-45 LAN
USB 2
USB 3
VGA (D-SUB)
