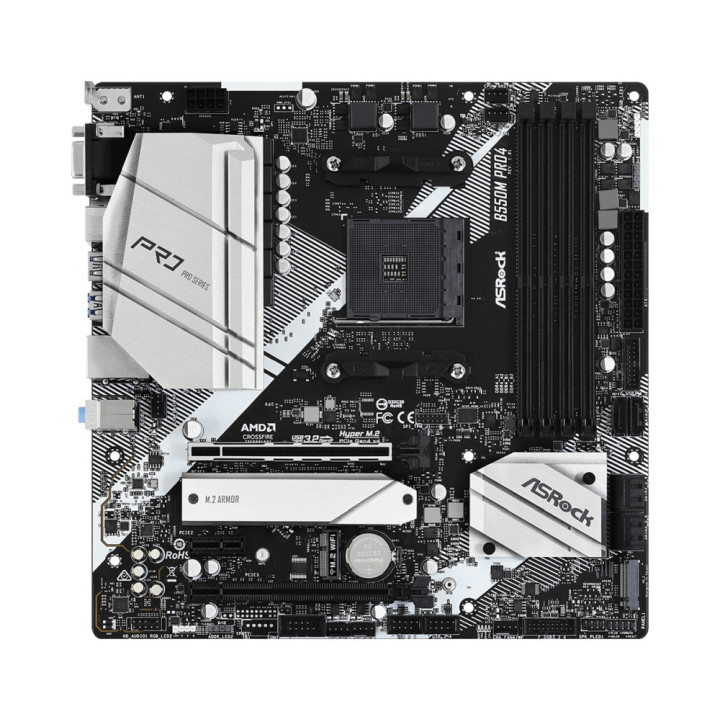

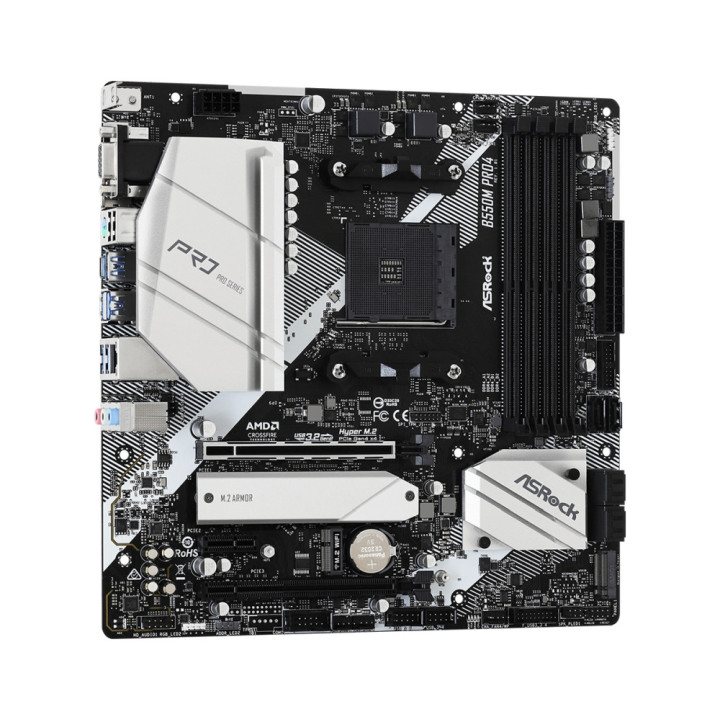

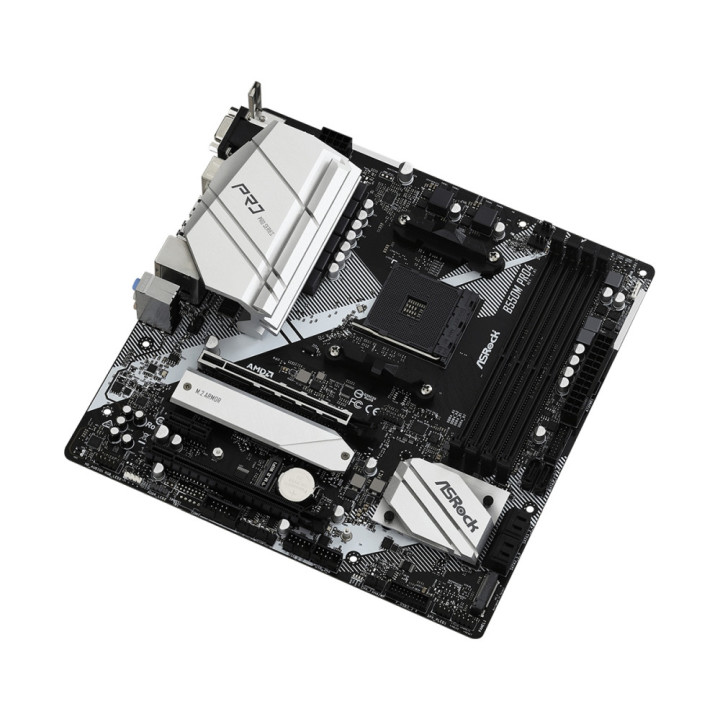

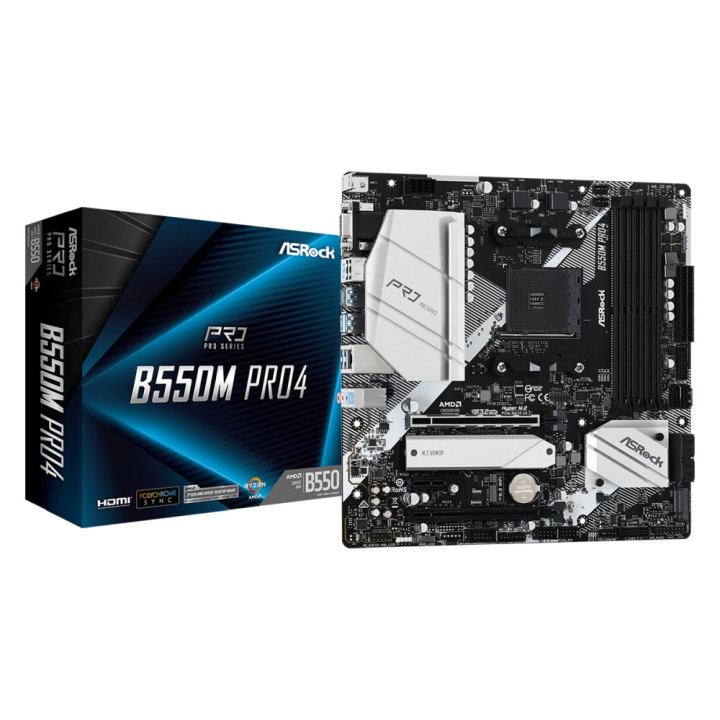

Дънна платка AsRock B550M PRO4

  • Марка:
  • Код:
    B550M_PRO4

Поръчка без регистрация

Само попълнете 4 полета
Ние ще се свържем с вас в рамките на работния ден.
Цена: 211.00лв
  • Гаранция:
    36 месеца

Наличност във външен склад

 070020048



 Безплатна доставка над 200лв



Добави в желани

Детайлно описание

Серия PRO4
Процесор AMD AM4 Ryzen
Чипсет AMD B550
BIOS 256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment.
Памет, слотове 4 x DDR4 DIMM Slots; Max. capacity of system memory: 128GB; Dual Channel DDR4 Memory Technology, Supports Extreme Memory Profile (XMP) memory modules.
Аудио 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); Premium Blu-ray Audio support; Supports Surge Protection; PCB Isolate Shielding; Individual PCB Layers for R/L Audio Channel; Nahimic Audio.
Мрежа PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE.
Безжична мрежа -
Конектори 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector.
Слотове 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode), 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode), 1 x PCI Express 3.0 x1 Slot, Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E).
M.2 слот 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s), 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s), 6 x SATA3 6.0 Gb/s Connector

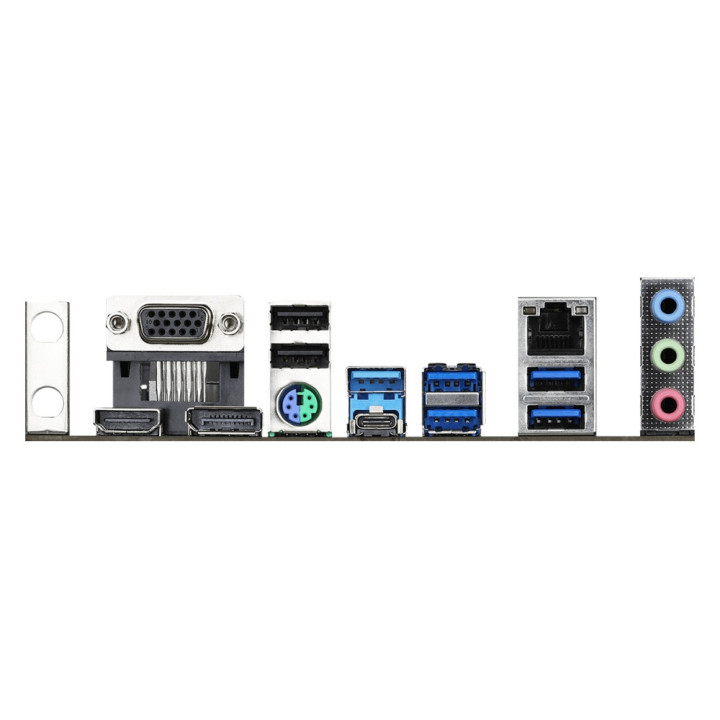

Интерфейс Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED.
Софтуер ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN.
Операционна система Microsoft Windows 10 64-bit
Форм-фактор Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm.
Специални функции ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4), ASRock POST Status Checker (PSC), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update.
