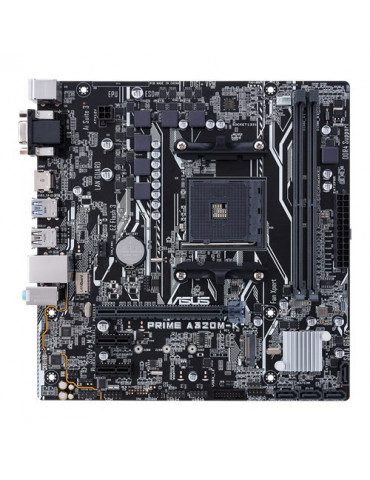

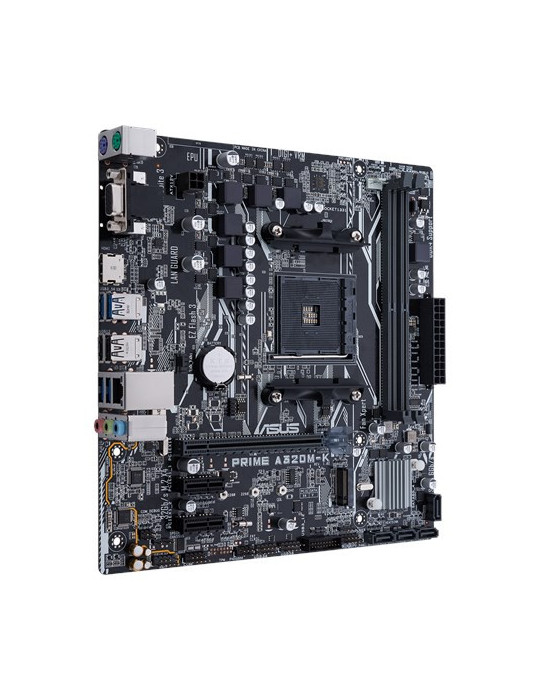

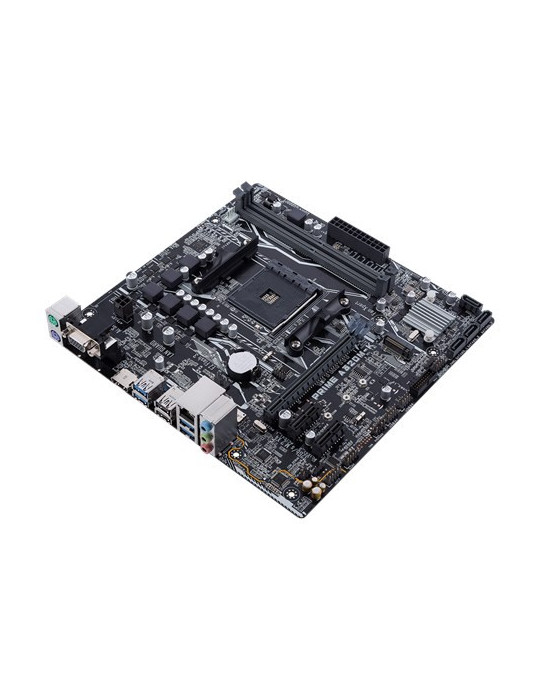

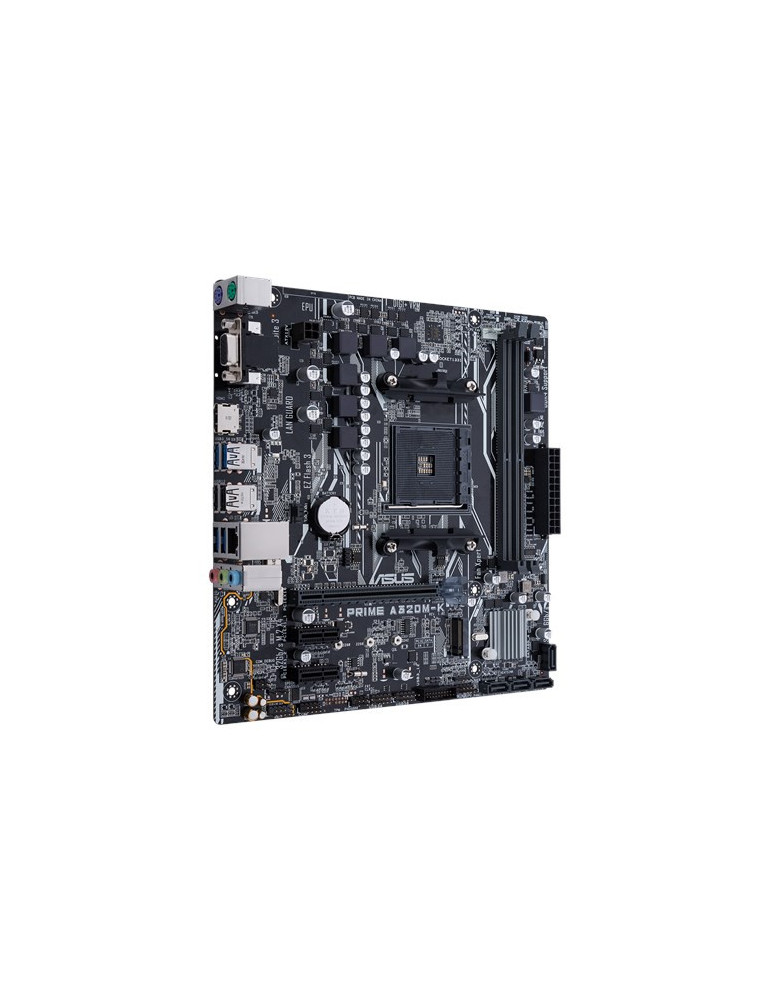

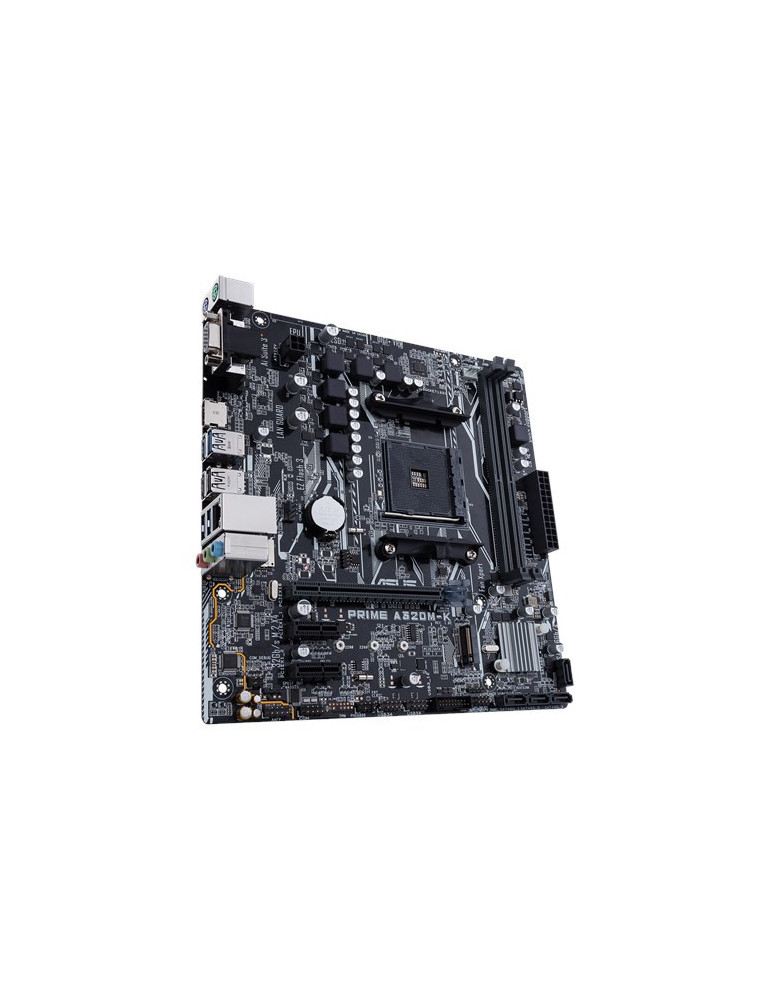

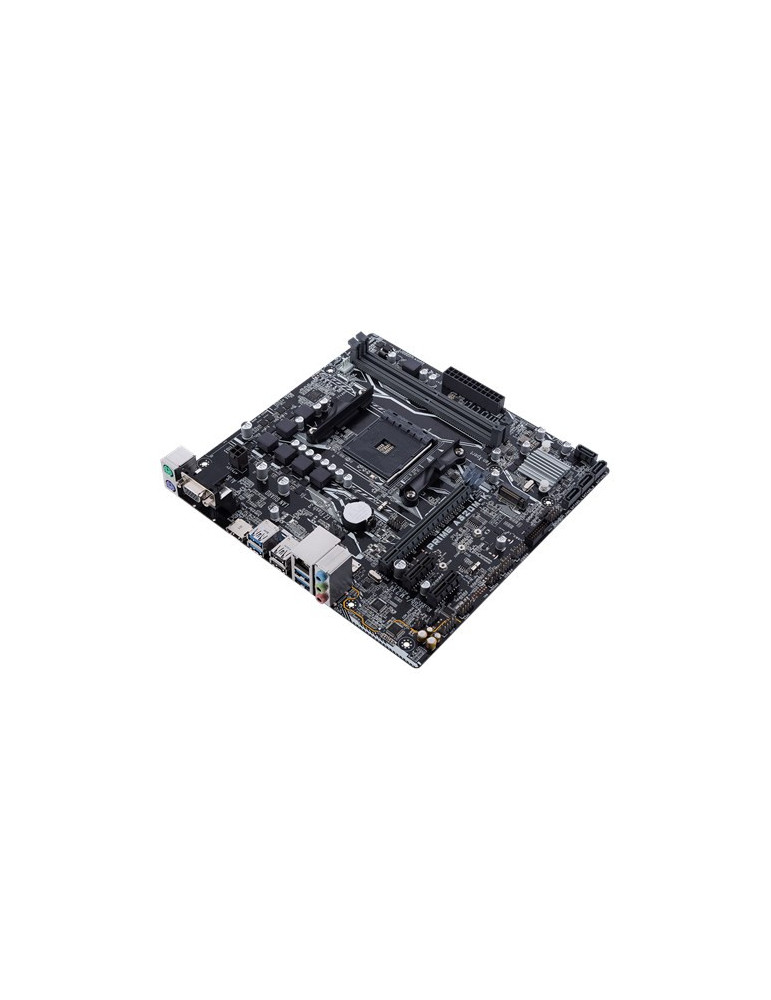

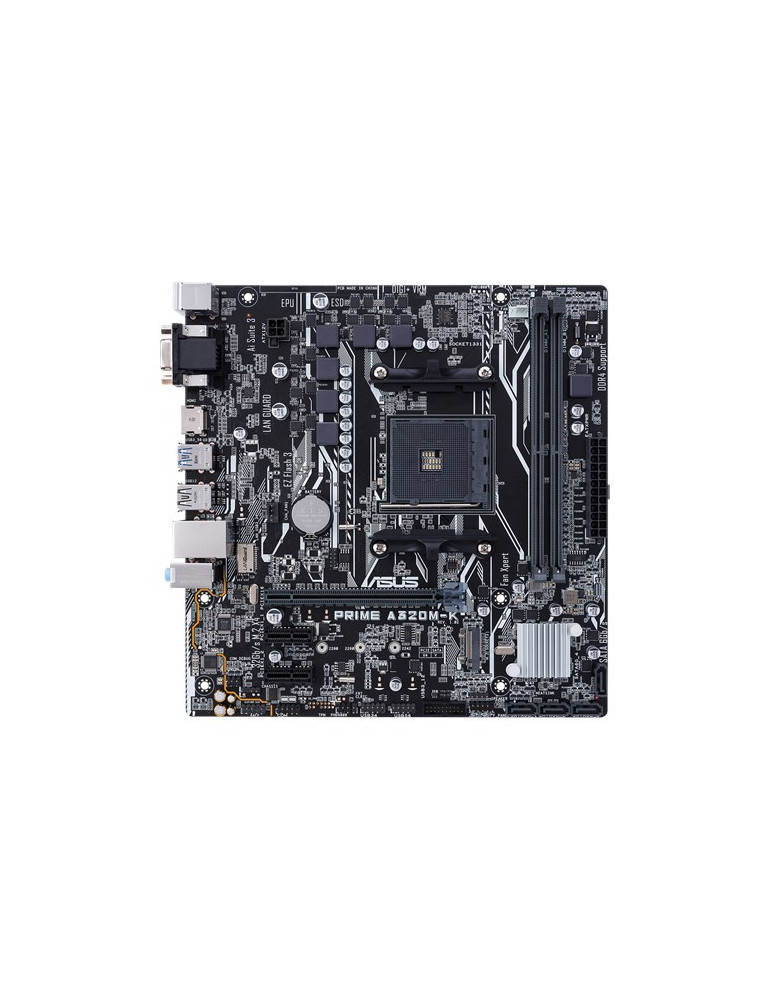

Дънна платка Asus Prime A320M-K, сокет AM4

Сокет: AM4
Памет: 2 x DDR4 Максимално 32GB 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133 MHz
Слотове: 1 x PCIe x16, 2 x PCIe x1, 1 x M.2
USB портове: 4 x USB 3.1, 2 x USB 2.0
Видео изходи: D-Sub, HDMI
Размер: Micro ATX
Гаранция: 36 месеца

  • Марка:
  • Код:
    ASUS PRIME A320M-K /AM4

Поръчка без регистрация

Само попълнете 4 полета
Ние ще се свържем с вас в рамките на работния ден.
Цена: 94.00лв
  • Гаранция:
    36 месеца

Наличност в магазина

Възможни са разлики между цените онлайн и във физическите обекти на фирмата. Посочените цени са с ДДС.

 070020048



 Безплатна доставка над 200лв



Добави в желани

Детайлно описание

Socket AM4
Graphics Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU;
Multi-VGA output support: HDMI/RGB ports:
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz;
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz;
Maximum shared memory of 2048 MB.
CPU's supported AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors ;
Supports CPU up to 8 cores; * Refer to www.asus.com for CPU support list
Chipset AMD A320
Expansion Slots AMD Ryzen™ Processors:
1 x PCIe 3.0/2.0 x16 (x16 mode);
AMD 7th Generation A-series/Athlon™ Processors:
1 x PCIe 3.0/2.0 x16 (x8 mode);
AMD A320 chipset:
2 x PCIe 2.0 x1.
Storage AMD A320 chipset:
4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10;
AMD Ryzen™ Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode);
AMD 7th Generation A-series/Athlon™ Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
Memory type AMD Ryzen™ Processors:
2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory;
AMD 7th Generation A-series/Athlon™ Processors:
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory;
Dual Channel Memory Architecture;
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

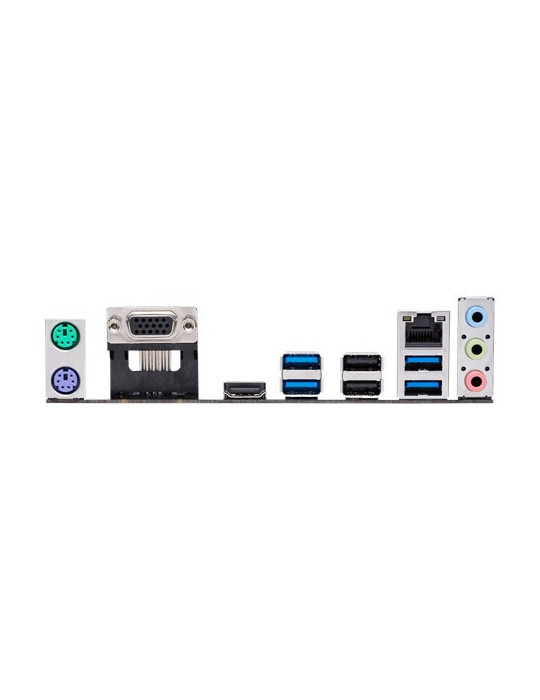

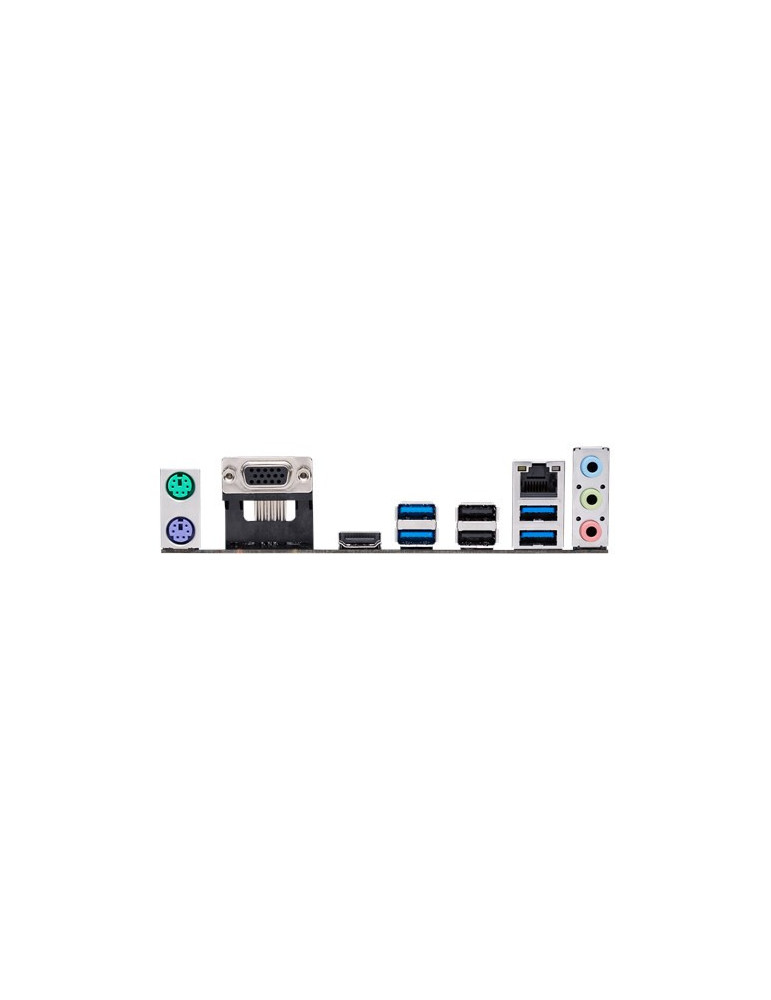

I/O 1 x PS/2 keyboard (purple);
1 x PS/2 mouse (green);
1 x D-Sub;
1 x HDMI;
1 x LAN (RJ45) port(s);
4 x USB 3.1 Gen 1 (blue);
2 x USB 2.0;
3 x Audio jack(s).
Connectors 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin);
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s);
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode);
1 x COM port(s) connector(s);
4 x SATA 6Gb/s connector(s);
1 x CPU Fan connector(s) (1 x 4 -pin);
1 x Chassis Fan connector(s) (1 x 4 -pin);
1 x S/PDIF out header(s);
1 x 24-pin EATX Power connector(s);
1 x 4-pin ATX 12V Power connector(s);
1 x Front panel audio connector(s) (AAFP);
1 x System panel(s);
1 x Clear CMOS jumper(s);
1 x Speaker connector.
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
LAN Realtek® RTL8111H,
1 x Gigabit LAN Controller(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Form Factor mATX Form Factor ; 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ).
OS Windows® 10 , 64bit
Warranty 36 Months

Изображенията на "Дънна платка Asus Prime A320M-K, сокет AM4" с продуктов код "ASUS PRIME A320M-K /AM4" са примерни и могат да имат разлики с действителния продукт.
