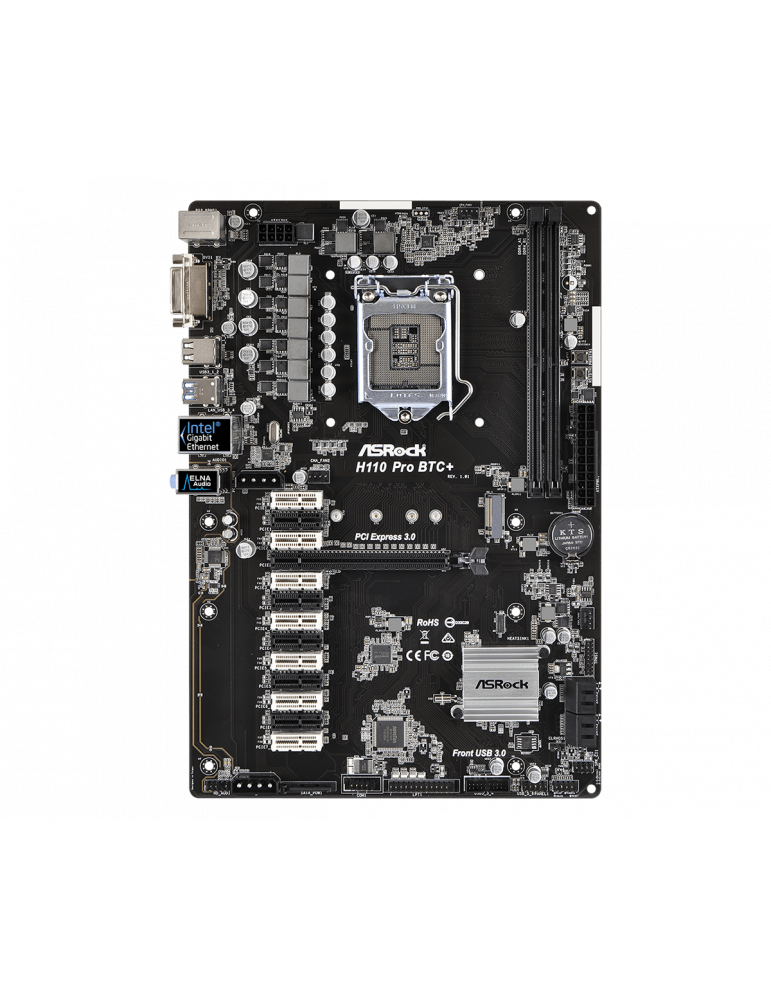

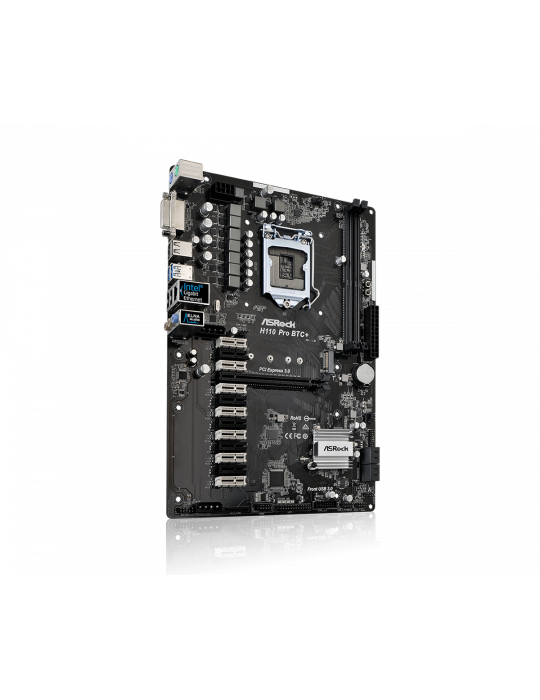

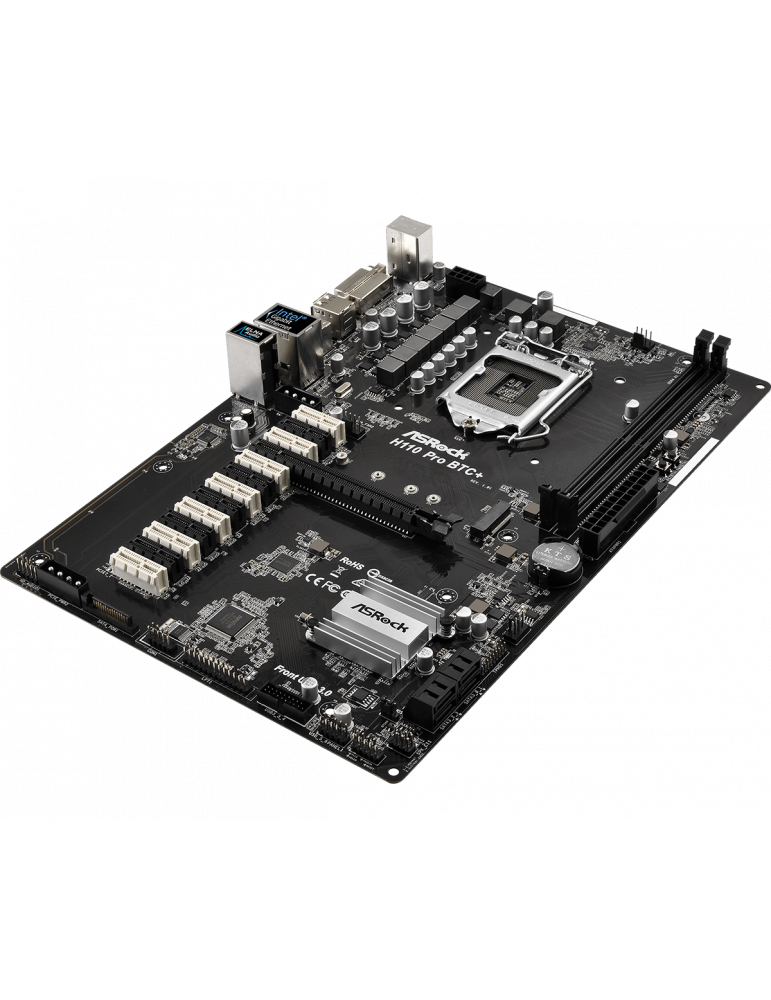

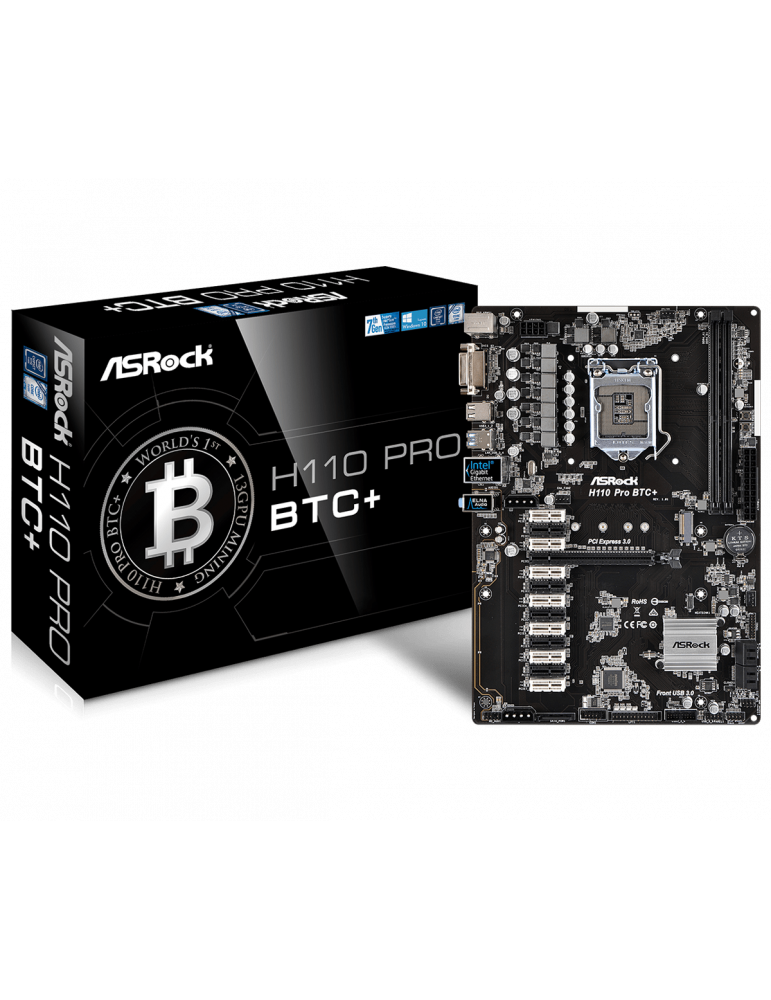

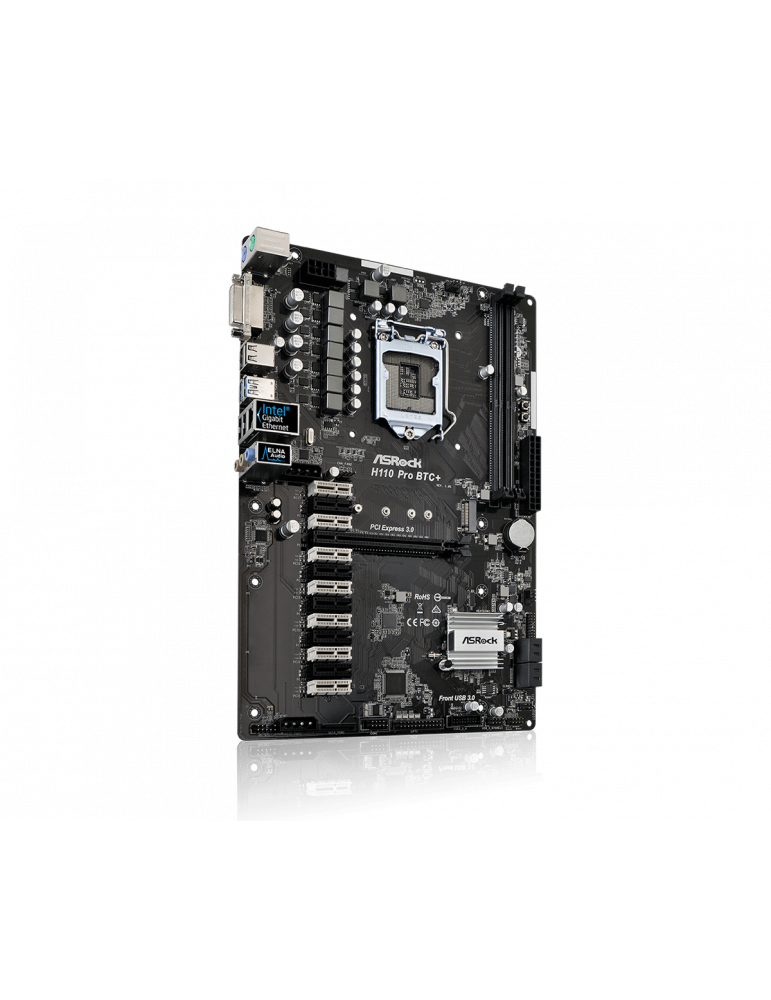

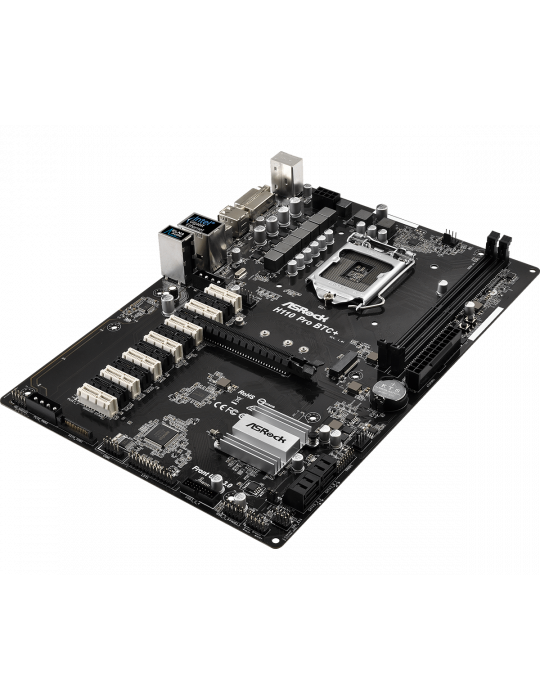

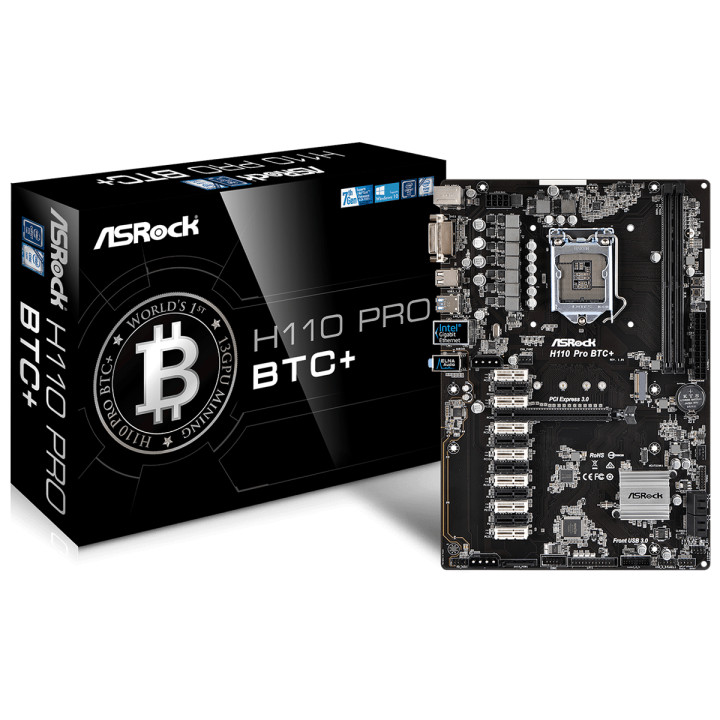

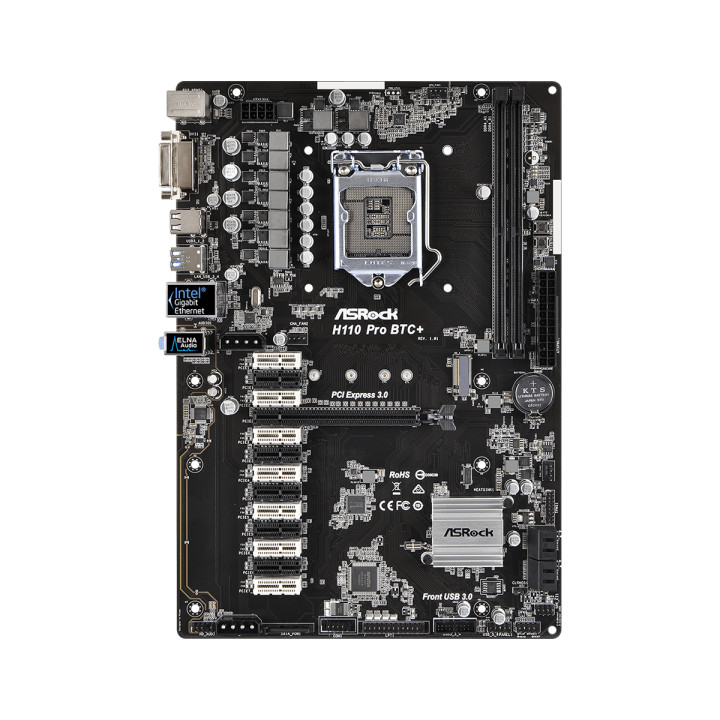

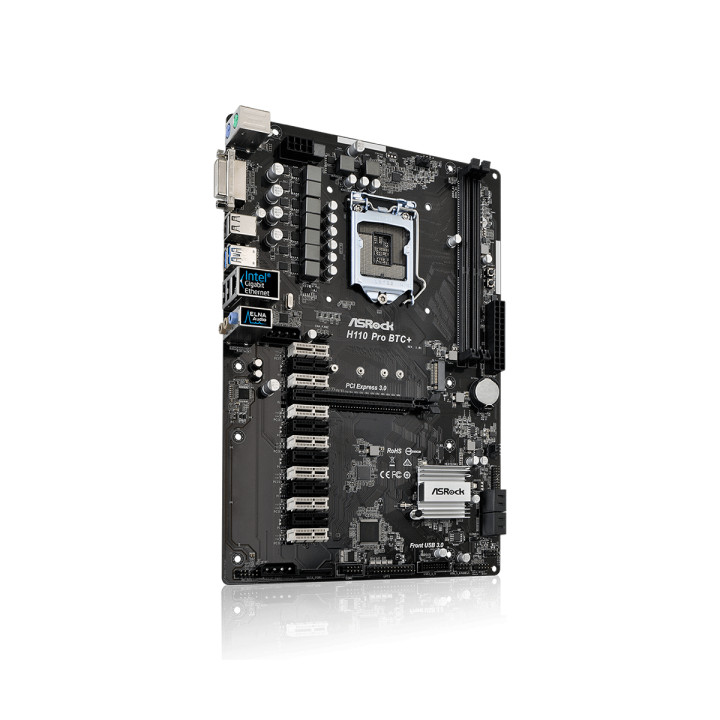

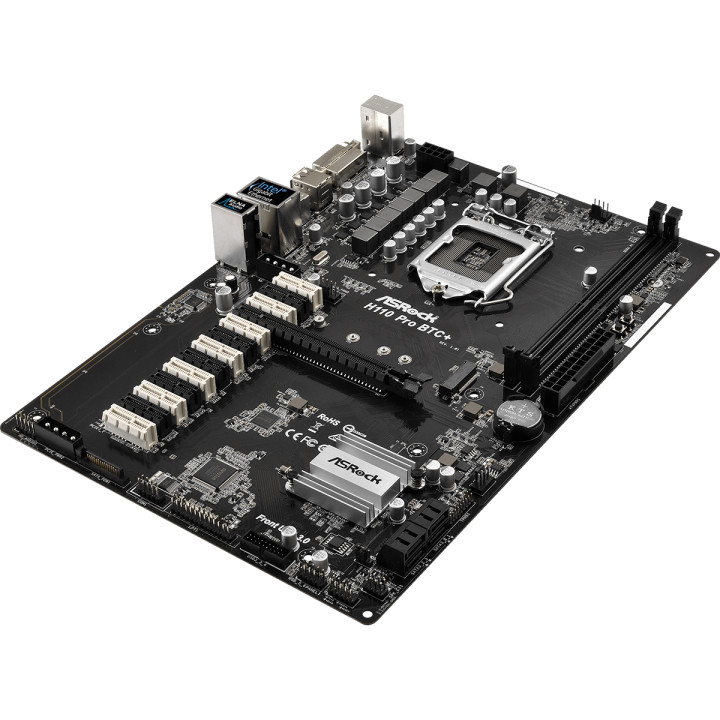

Дънна платка Asrock H110 Pro BTC с 13 PCI-E слота
Дънна платка Asrock H110 Pro BTC с 13 PCI-E слота
Дънна платка Asrock H110 Pro BTC с 13 PCI-E слота
Дънна платка Asrock H110 Pro BTC с 13 PCI-E слота
Дънна платка Asrock H110 Pro BTC с 13 PCI-E слота

Дънна платка Asrock H110 Pro BTC с 13 PCI-E слота

Asrock
192,25 €
Цената е с включен ДДС.
Няма наличност
Банка ДСК Купи на лизинг 12 вноски по 17.06 € (33.37 лв.) Калкулатор ›

Изпрати ми известие, когато има наличност

Interested in this product? Drop us an email and we will let you know when it's available for order.

Unique Feature ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
Supports CPU up to 91W
Digi Power design
8 Power Phase design
Supports Intel® Turbo Boost 2.0 Technology
Chipset Intel® H110
Memory Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 2400/2133 non-ECC, un-buffered memory*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 32GB*
Supports Intel® Extreme Memory Profile (XMP) 2.0
15? Gold Contact in DIMM Slots
BIOS 64Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 5.0 Compliant wake up events
SMBIOS 2.7 Support
CPU, DRAM, PCH 1.05V Voltage multi-adjustment
Graphics Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics
Gen9 LP, DX11.3, DX12
HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU)
HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)
Max. shared memory 1024MB**
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports Accelerated Media Codecs: HEVC, VP8, VP9
Supports HDCP with DVI-D Port
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port
Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
Supports Surge Protection
ELNA Audio Caps
LAN Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Supports Wake-On-LAN (Supported on Black PCIe Slots only)
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
12 x PCI Express 2.0 x1 Slots
Storage 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
Connector 1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
2 x Chassis Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
2 x PCIe Power Connectors-1 x SATA Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection)

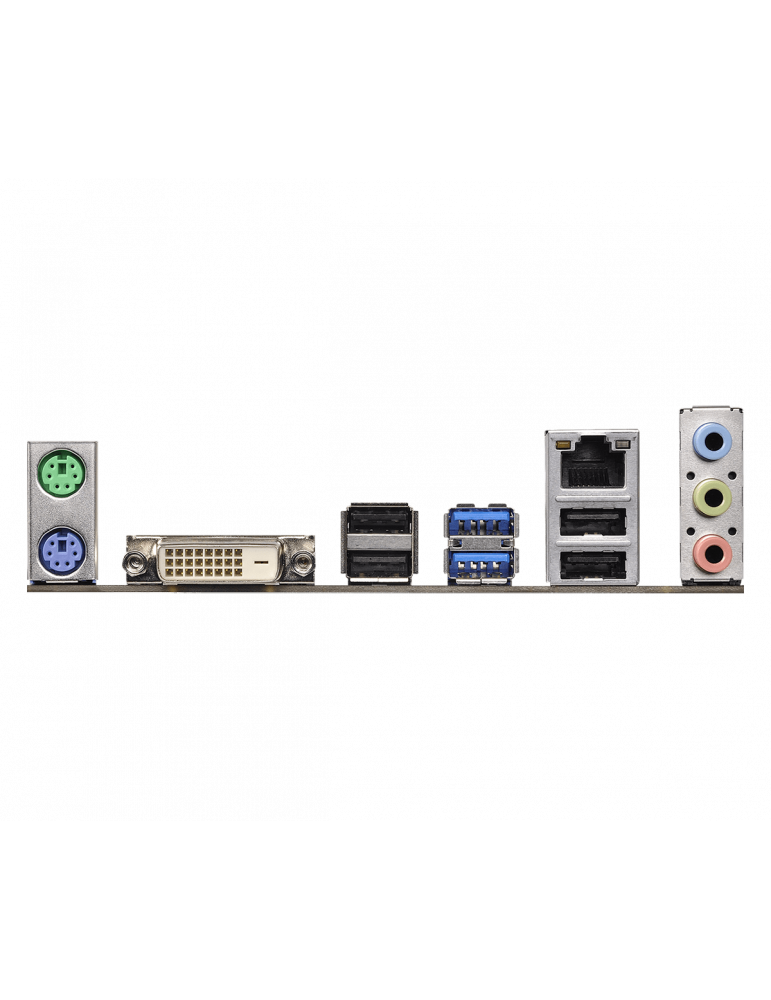

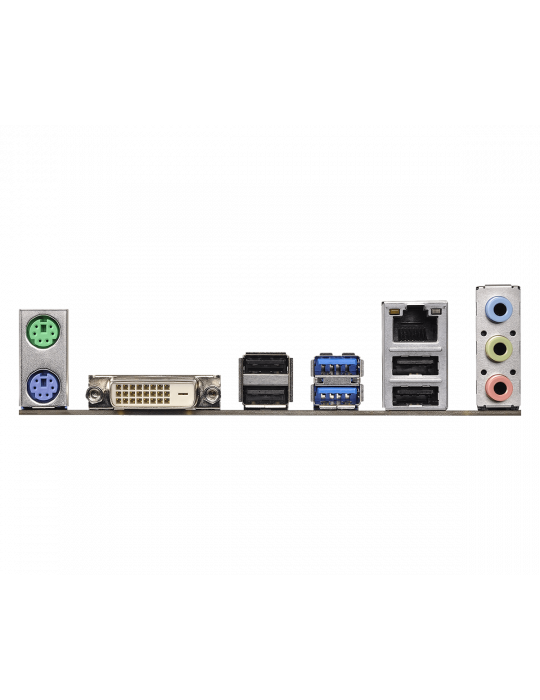

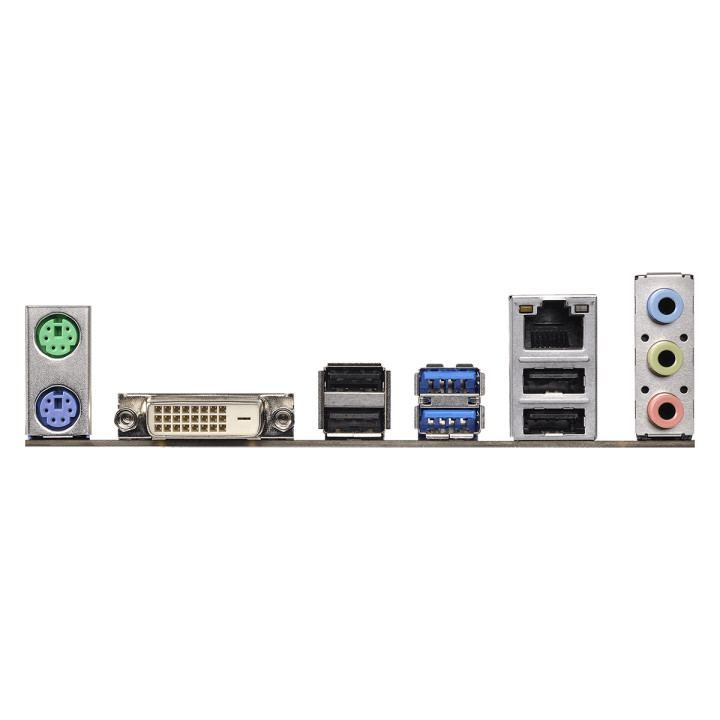

Rear Panel I/O 1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x DVI-D Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
- ASRock APP Charger
- ASRock XFast LAN*
UEFI
- ASRock Instant Flash
Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Hardware Monitor CPU/Chassis temperature sensing
CPU/Chassis Fan Tachometer
CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
CPU/Chassis Fan multi-speed control
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
Solid Capacitor design
OS Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU)
Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)
Гаранция: 24 месеца
