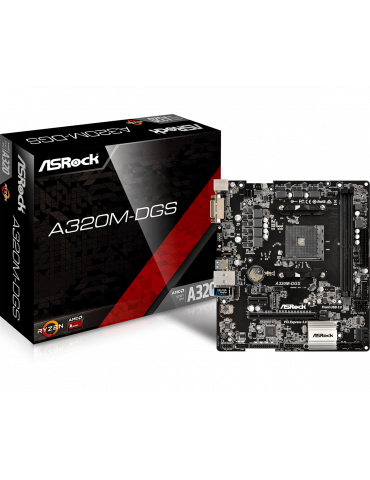

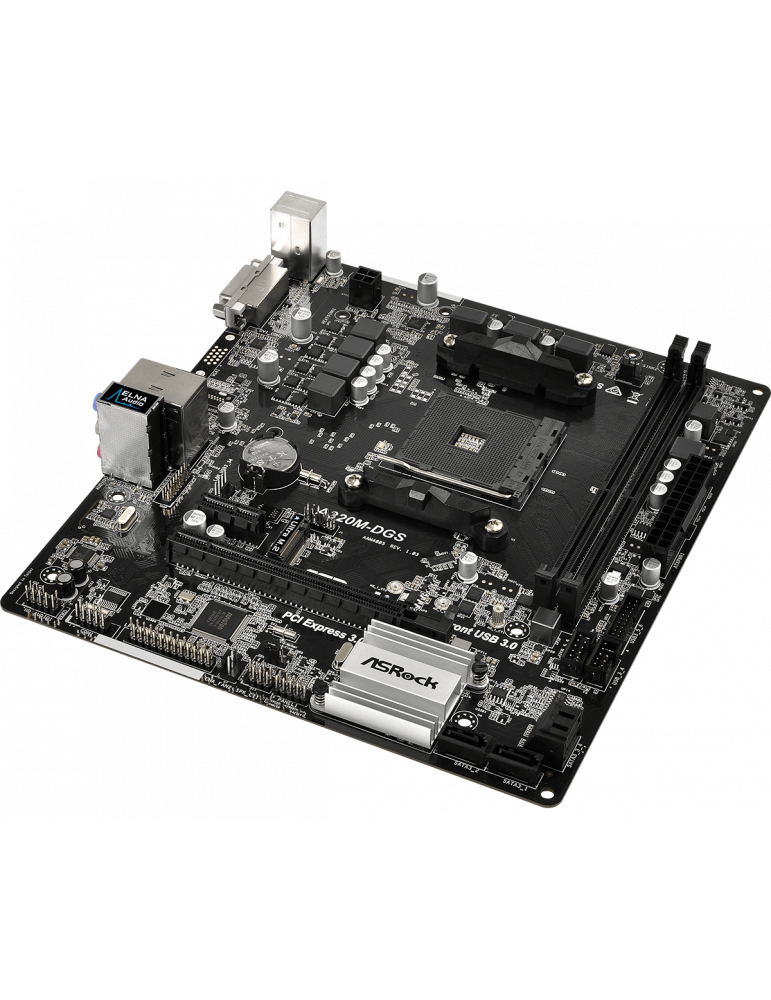

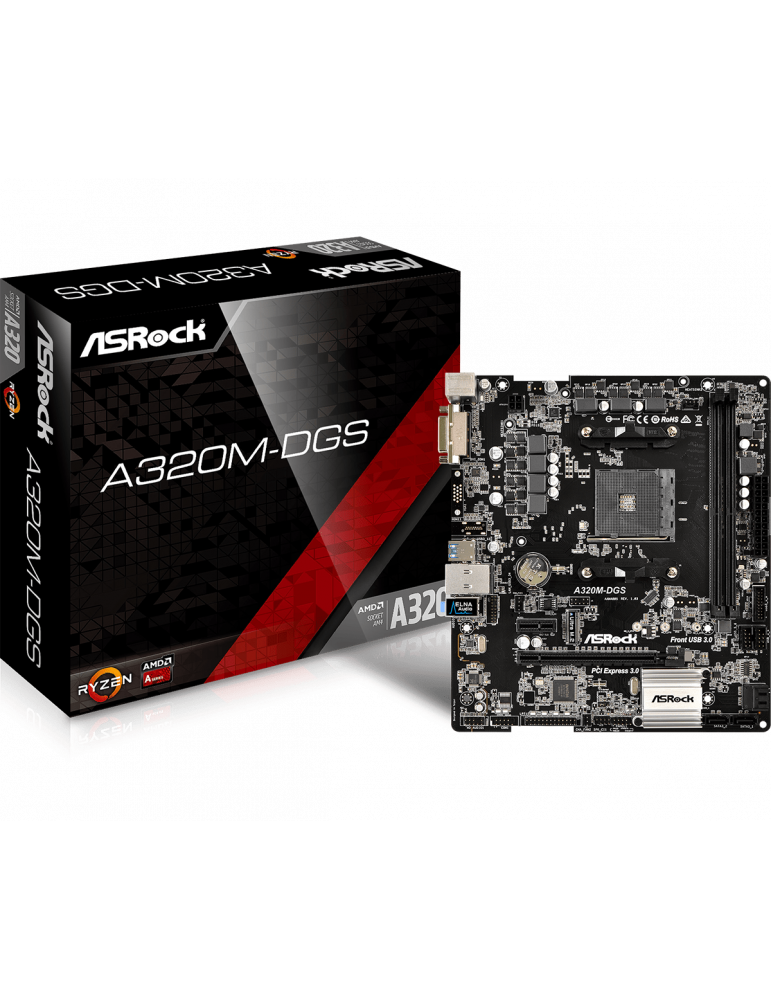

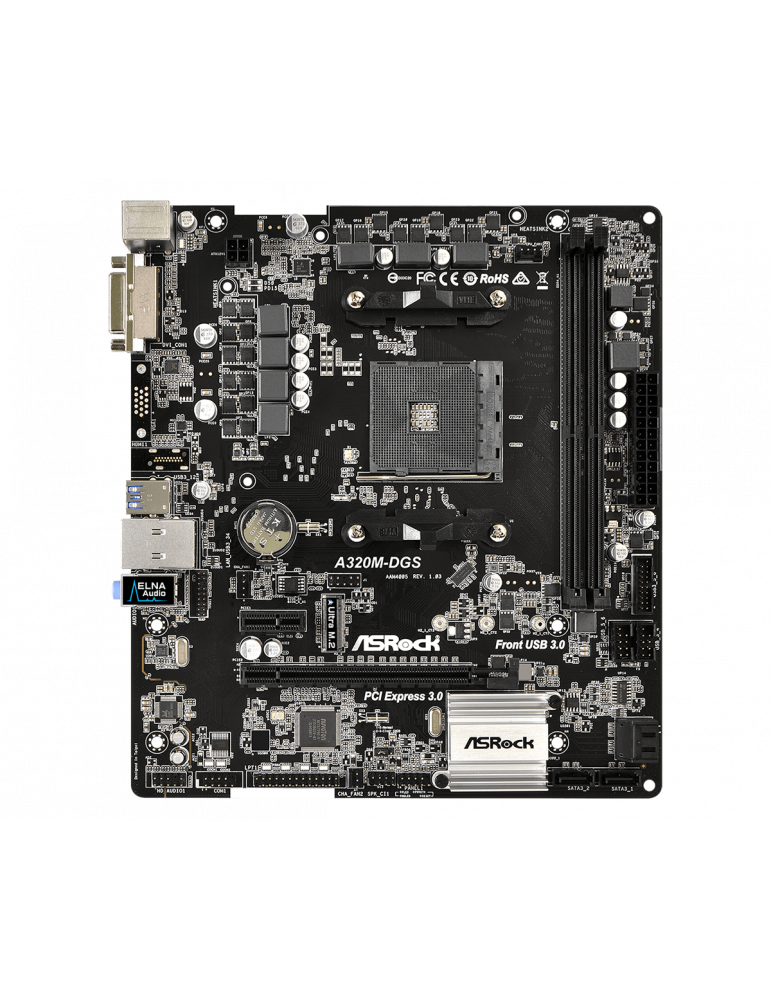

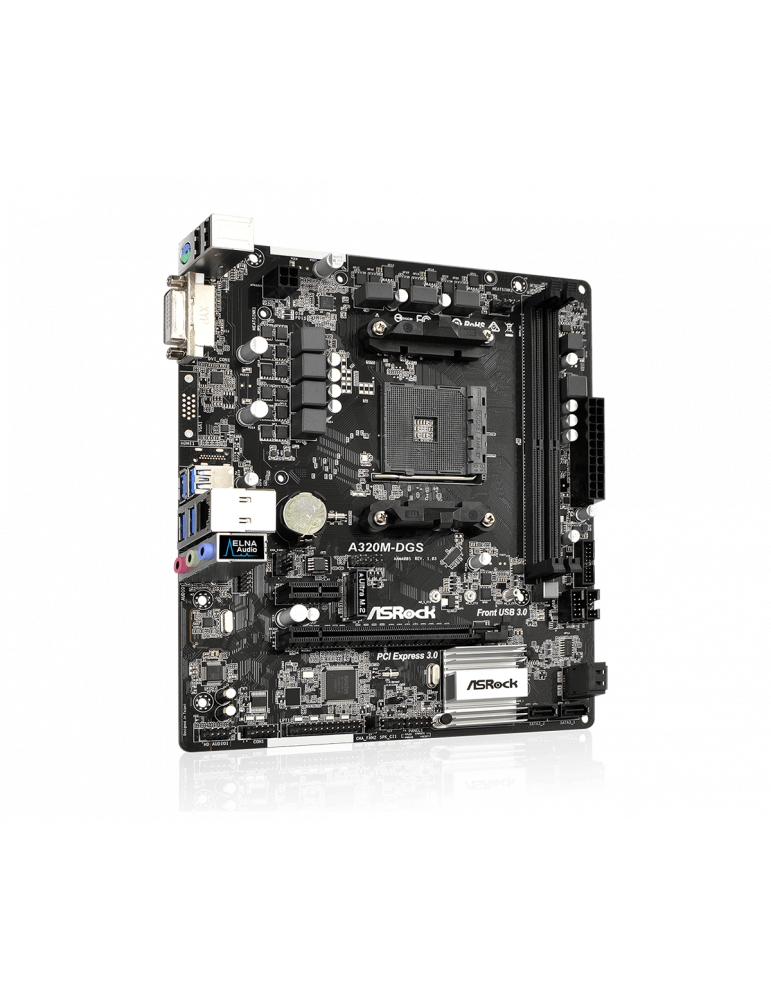

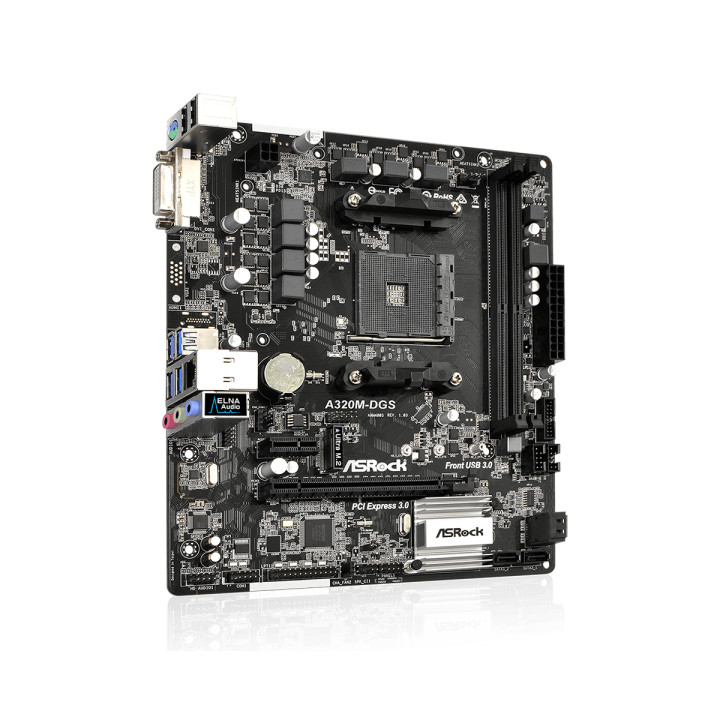

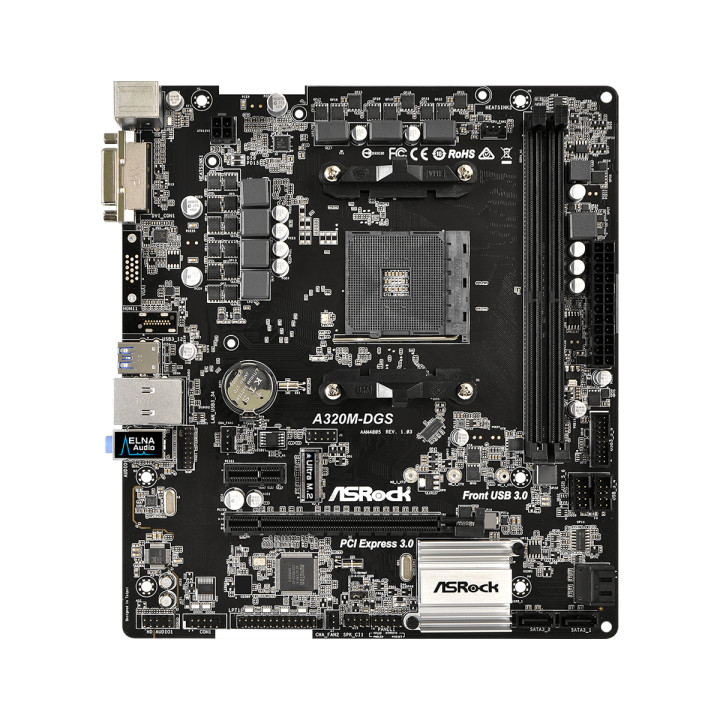

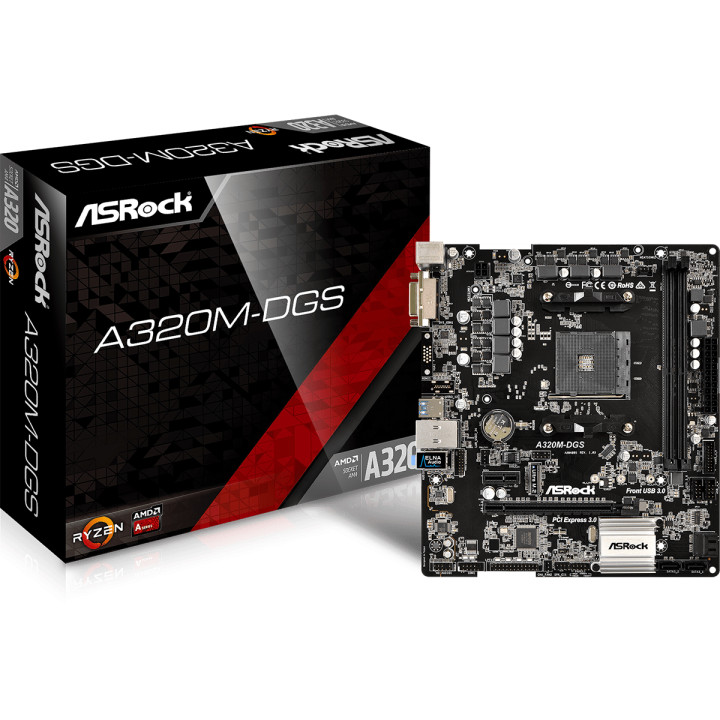

Дънна платка Asrock A320M-DGS, сокет AM4

Дънна платка Asrock A320M-DGS, сокет AM4

Name: Дънна платка Asrock A320M-DGS, сокет AM4
Brand: Asrock
SKU: ASROCK A320M-DGS /AM4
Price: 49.6 EUR
Availability: OutOfStock

Asrock

49,60 €

Цената е с включен ДДС.

Сокет: AM4
Памет: 2 x DDR4 Максимално 32GB 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133 MHz
Слотове: 1 x PCIe x16, 1 x PCIe x1, 1 x M.2
USB портове: 4 x USB 3.1, 2 x USB2.0
Видео изходи: DVI-D
Размер: Micro ATX
Гаранция: 36 месеца

Няма наличност

Изпрати ми известие, когато има наличност

Interested in this product? Drop us an email and we will let you know when it's available for order.

Socket	AM4
Graphics	Integrated AMD Radeon™ R-Series Graphics in A-series APU*; DirectX 12, Pixel Shader 5.0; Max. shared memory 2GB; Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; Supports HDCP with DVI-D Port; Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port
CPU's supported	Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge); Digi Power design; 7 Power Phase design; Supports CPU up to 65W
Chipset	AMD Promontory A320
Expansion Slots	AMD Ryzen series CPUs; 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode); AMD 7th A-Series APUs; 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); 1 x PCI Express 2.0 x1 Slot
Storage	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)*
Memory type	Dual Channel DDR4 Memory Technology; 2 x DDR4 DIMM Slots; AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory; AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory; Max. capacity of system memory: 32GB; 15? Gold Contact in DIMM Slots**

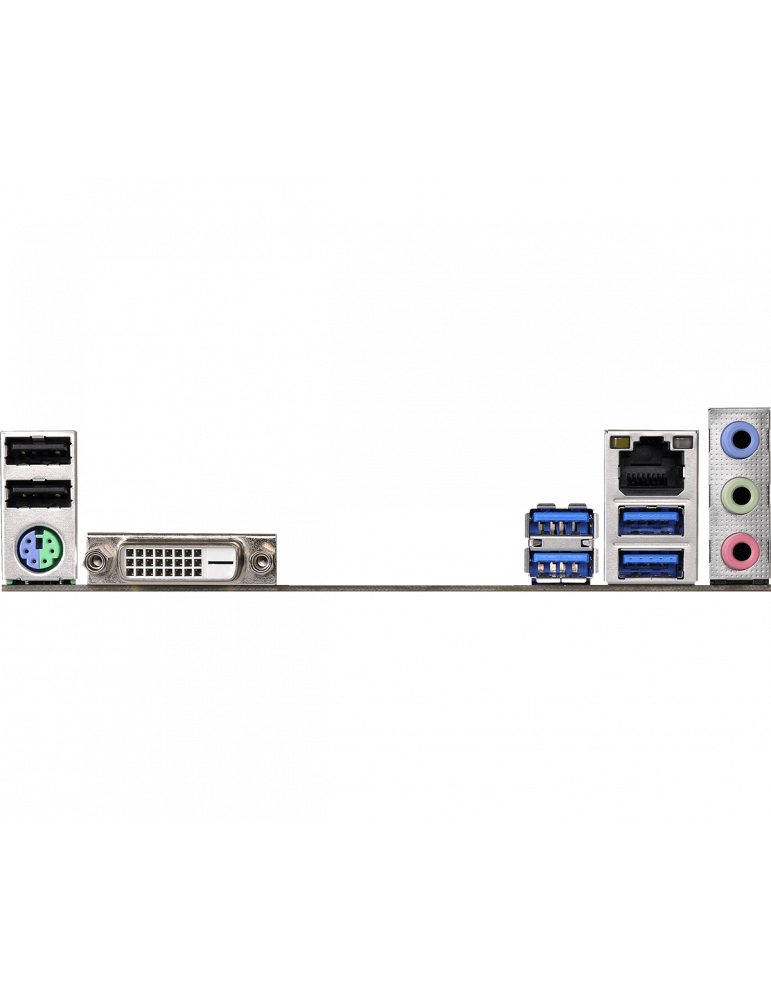

I/O	1 x PS/2 Mouse/Keyboard Port; 1 x DVI-D Port; 2 x USB 2.0 Ports (Supports ESD Protection); 4 x USB 3.0 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors	1 x Print Port Header; 1 x COM Port Header; 1 x TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin); 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)*; 1 x 24 pin ATX Power Connector; 1 x 4 pin 12V Power Connector; 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection)
Audio	7.1 CH HD Audio (Realtek ALC887 Audio Codec)*; Supports Surge Protection; ELNA Audio Caps
LAN	PCIE x1 Gigabit LAN 10/100/1000 Mb/s; Realtek RTL8111GR; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports LAN Cable Detection; Supports Energy Efficient Ethernet 802.3az; Supports PXE
BIOS	128Mb AMI UEFI Legal BIOS with GUI support; Supports "Plug and Play"; ACPI 5.1 compliance wake up events; Supports jumperfree; SMBIOS 2.3 support; DRAM Voltage multi-adjustment
Form Factor	Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm; Solid Capacitor design
OS	Microsoft® Windows® 10 64-bit*
Other	-
Warranty	36 Months
