Specifications


CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket
AMD Socket AM5

Chipset
AMD B850 Chipset

Slot
1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Display Interface
Support 8K@60Hz as specified in HDMI 2.1 FRL – Requires Processor Graphics

Memory
Support 2 DIMMs, Dual Channel DDR5
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard only have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Storage
1x M.2 Gen5 x4 128Gbps slot
1x M.2 Gen4 x4 64Gbps slot
2x SATA 6Gbps ports

RAID
• Supports RAID 0, and RAID 1 for SATA storage devices
• Supports RAID 0, and RAID 1 for M.2 NVMe storage devices

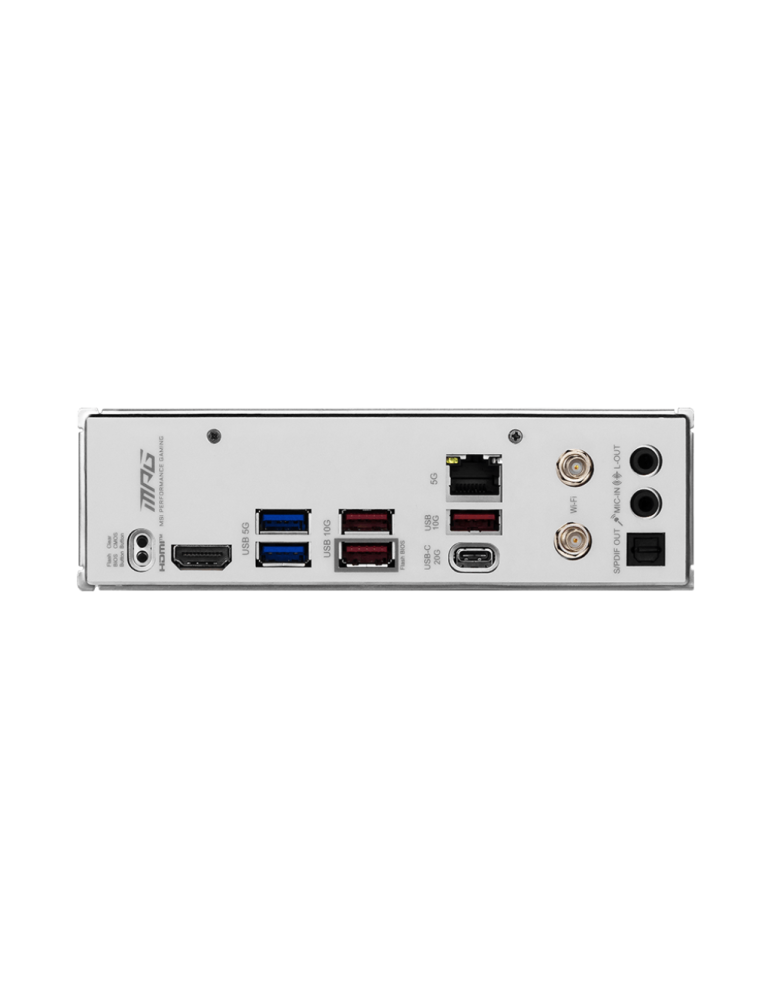

USB ports
1x USB 20Gbps (1 Type-C)
4x USB 10Gbps (1 Type-C + 3 Type-A)
4x USB 5Gbps (4 Type-A)
2x USB 2.0 Type-A

LAN Realtek
5Gbps LAN

Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4

Audio
Realtek ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output

PCB Info
Mini-ITX
170mmx170mm
