Superb Productivity

- PCIe Gen5 (M.2)

- Dual Channel DDR5

Rock-Solid Durability

- 7+1+1+1+1 Power Phase

Ultrafast Connectivity

- 2.5G LAN

EZ Update

- BIOS Flashback Button

- ASRock Auto Driver Installer

EZ Troubleshooter

- ASRock Post Status Checker

CPU

- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

- Supports Intel® Thermal Velocity Boost (TVB)

- Supports Intel® Adaptive Boost Technology (ABT)

- Integrated NPU for dedicated AI acceleration

Chipset

- Intel® B860

Memory

- Dual Channel DDR5 Memory Technology

- 2 x DDR5 DIMM Slots

- Supports DDR5 non-ECC, un-buffered memory up to 9066+(OC)*

- Supports Clocked Unbuffered DIMM (CUDIMM)

- Max. capacity of system memory: 128GB

- Supports Intel® Extreme Memory Profile (XMP) 3.0x

*1DPC 1R Up to 9066+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel® Xe LPG Graphics Architecture

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

Slots

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 4.0 x1 Slot (PCIE2)*

- 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

*Supports NVMe SSD as boot disks

Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Volume Management Device (VMD)

Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

CPU:

- 1 x USB 3.2 Gen2x2 Type-C (Rear)

Chipset:

- 1 x USB 3.2 Gen1 Type-C (Front)

- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

- 6 x USB 2.0 (2 Rear, 4 Front)

*All USB ports support ESD Protection

Connector

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 2 x Addressable LED Headers**

- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***

- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen1 Header

*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

CPU_FAN2, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).

CPU_FAN2, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

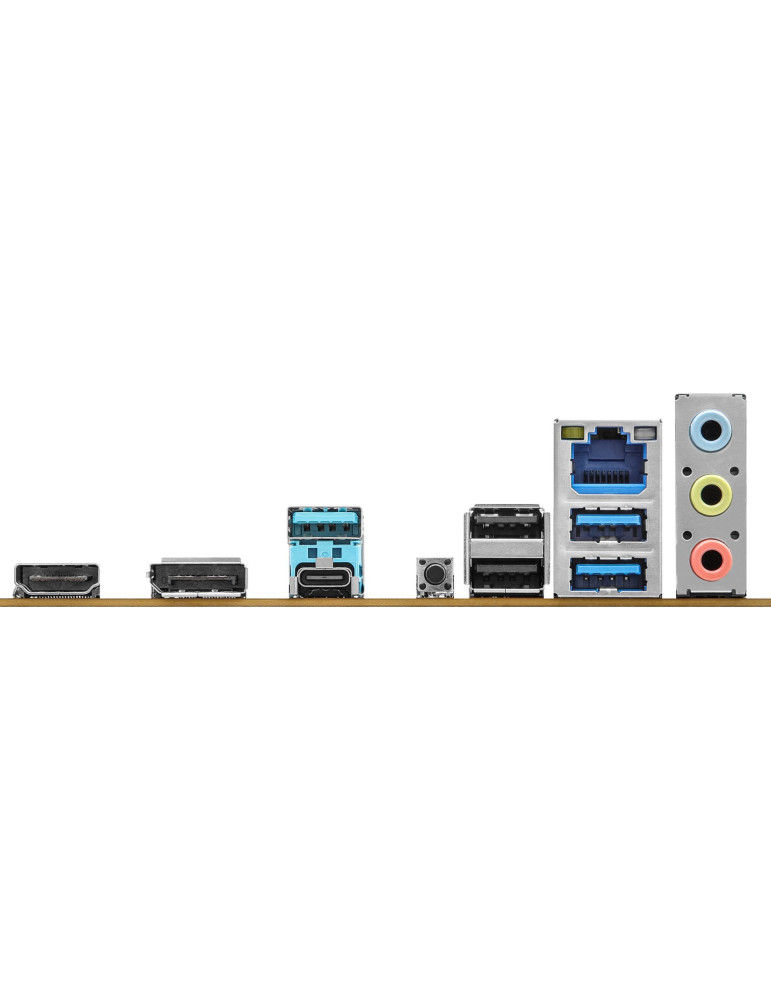

Rear Panel I/O

- 2 x Antenna Mounting Points

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)

- 3 x USB 3.2 Gen1 Ports

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- 1 x BIOS Flashback Button

- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Dragon 2.5G LAN Software

- ASRock Polychrome SYNC*

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x I/O Shield

- 2 x SATA Data Cables

- 2 x Screws for M.2 Sockets

- 1 x Standoff for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm

OS

- Microsoft Windows® 11 64-bit

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
