Дънна платка Gigabyte H510M S2H V3, LGA1200, DDR4

Дънна платка Gigabyte H510M S2H V3, LGA1200, DDR4

  • Няма наличност
Дънна платка Gigabyte H510M S2H V3, LGA1200, DDR4
GB H470 4xDDR4 4xSATA3 HDMI DVI VGA 1xM2 GLAN 2xPCIEx16 2xPCIEx1
Gigabyte
H510M S2H V3
  36 месеца

146,00 лв.

няма наличност

  Условия за доставка

Вземи желания продукт сега, избери подходяща за теб схема на изплащане:

Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!

Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
Описание
CPU's supportedLGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors; 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors; L3 cache varies with CPU
Тип памет11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
ЧипсетIntel® H470 Express Chipset
Видео картаIntegrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Support for HDMI 1.4 version and HDCP 2.3.; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; * The D-Sub port is only available with the 10th Generation processors.; Support for up to 3 displays at the same time; * Only available with the 10th Generation processors.
Expansion SlotsCPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
StorageChipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices; * Supported with an additional PCIe to M.2 NVMe SSD adapter card; RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

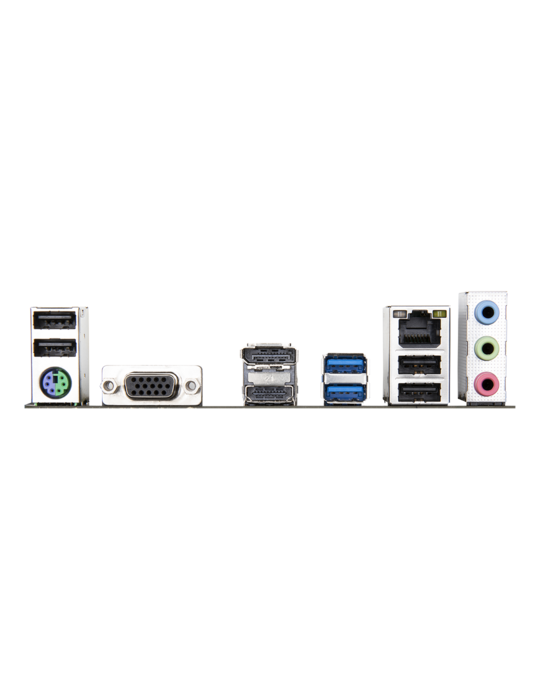

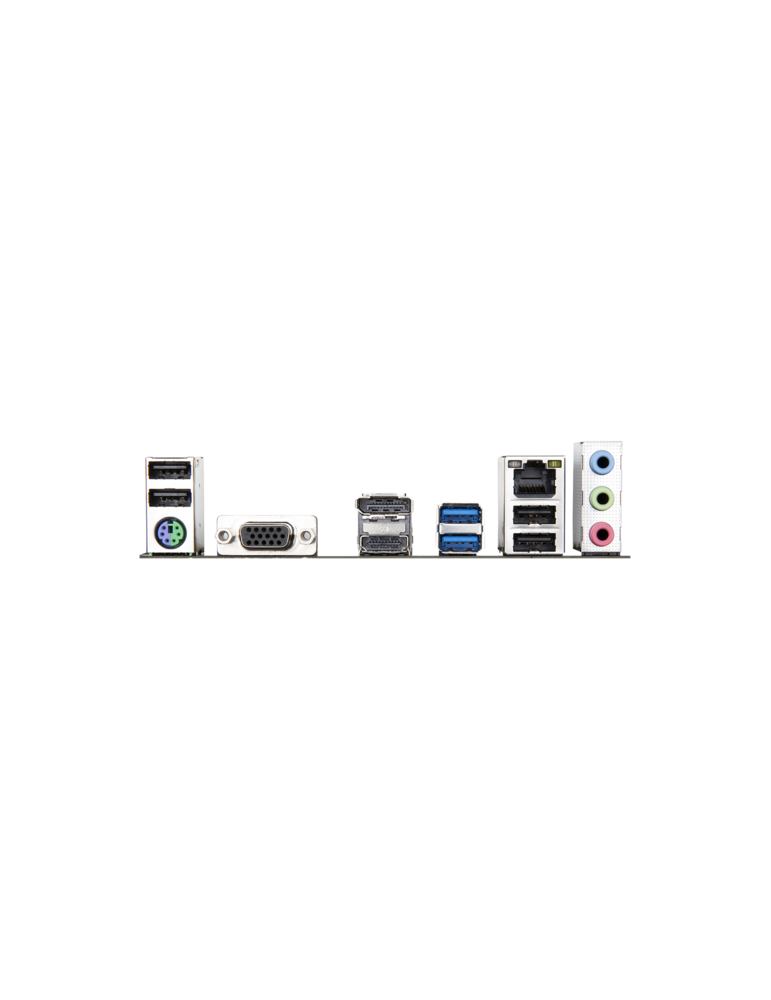

Вх/Изх1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x DisplayPort; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Конектори1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x serial port header; 1 x Clear CMOS jumper
AudioRealtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LANRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм факторMicro ATX Form Factor; 22.6cm x 18.5cm
OSSupport for Windows 11 64-bit; Support for Windows 10 64-bit
Гаранция36 Months
Подробности за продукта
H510M S2H V3

Техническо описание

  • Gigabyte
  • LGA 1200 Comet Lake
    LGA 1200 Rocket Lake
  • Intel H510
  • Intel
  • DDR4
  • Micro ATX
  • 2
  • 36 месеца
  • 3.5 mm Mono Mic
    3.5 mm Mono Out
    Display Port
    HDMI
    M.2 PCI-E за SSD
    PS/2
    RJ-45 LAN
    USB 2
    USB 4
    VGA (D-SUB)
