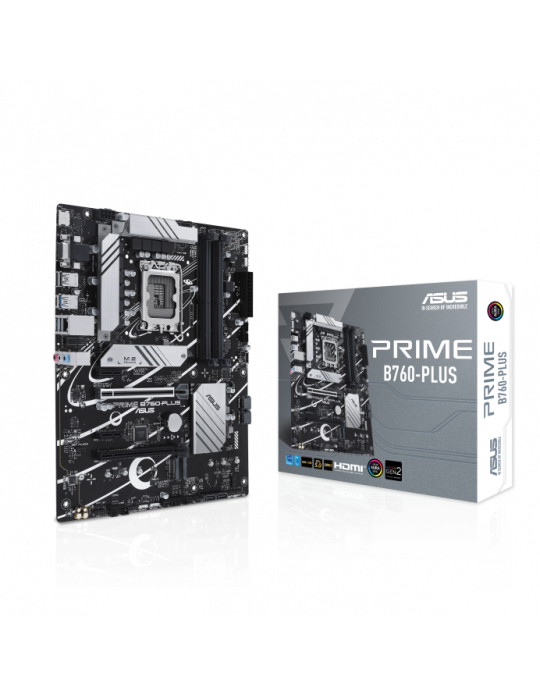

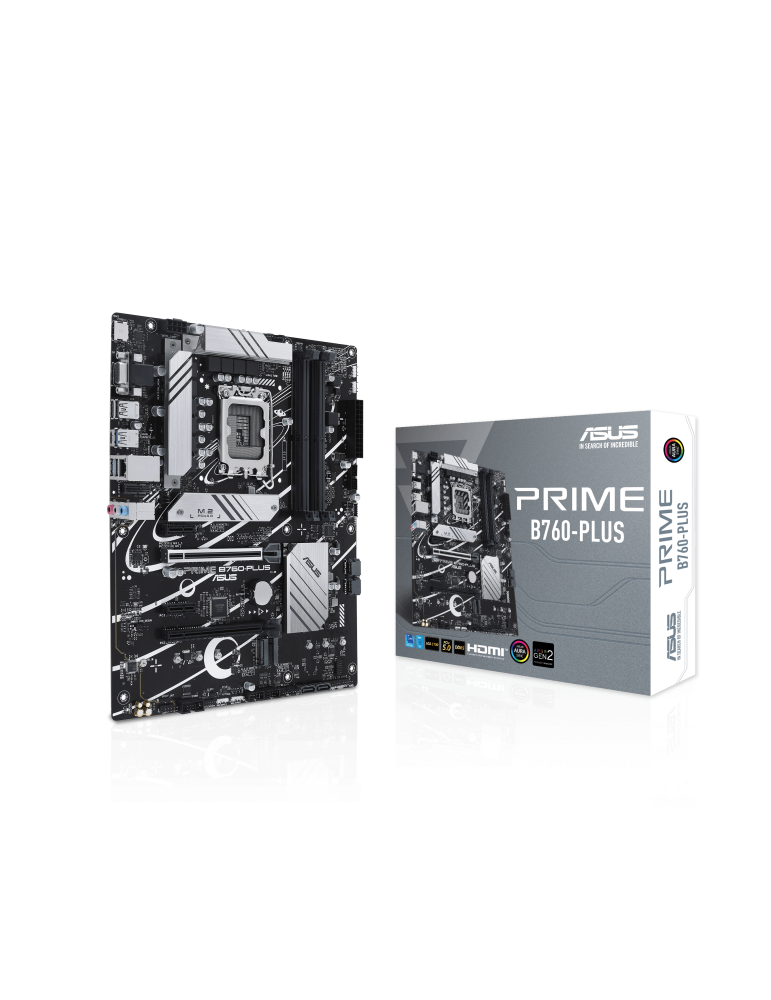

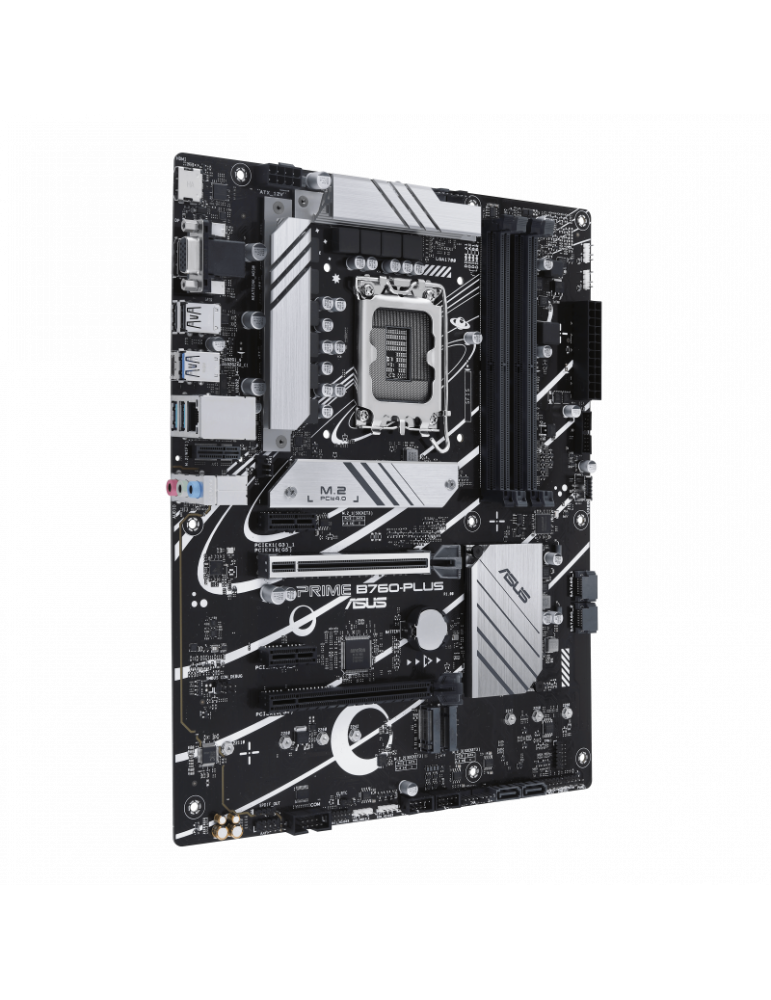

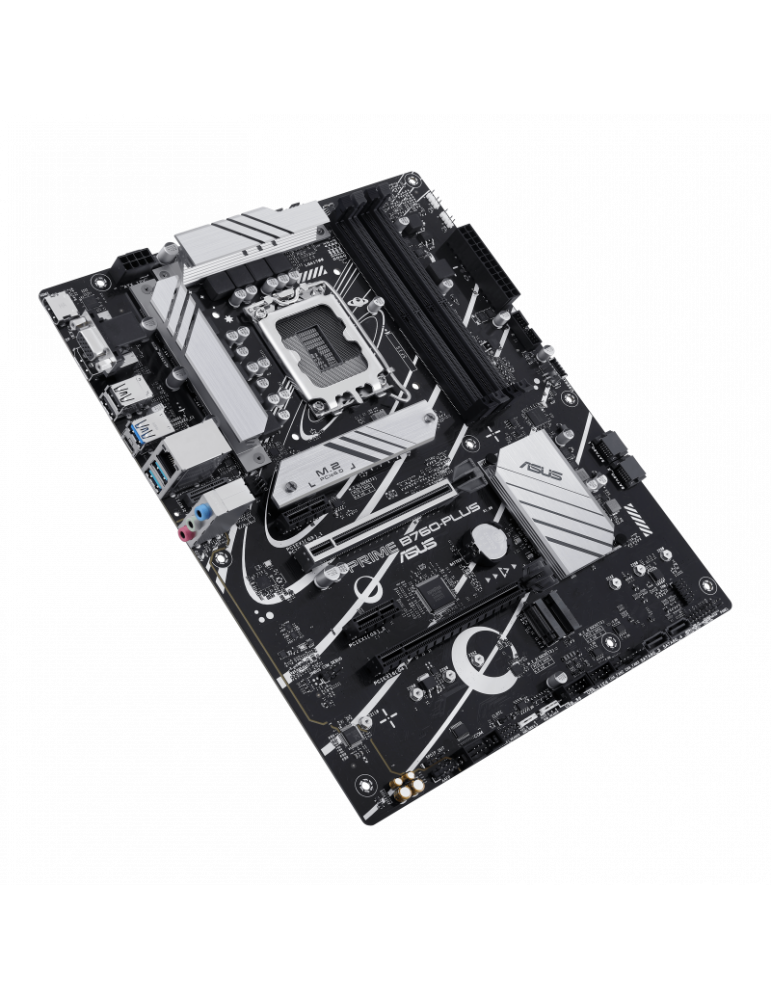

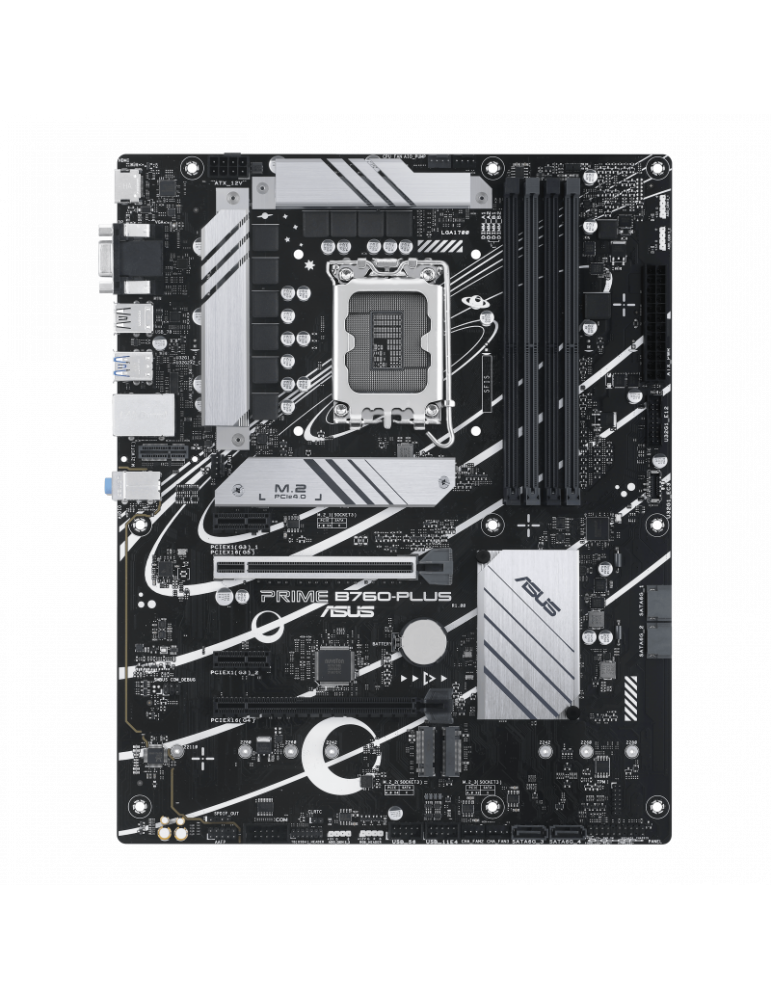

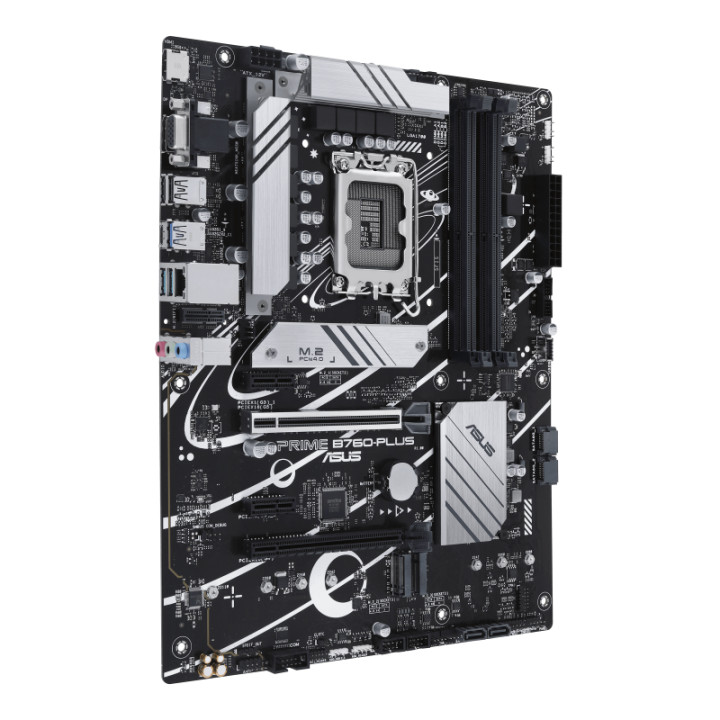

Дънна платка Asus PRIME B760-PLUS, LGA1700 - 90MB1EF0-M1EAY0

Дънна платка Asus PRIME B760-PLUS, LGA1700 - 90MB1EF0-M1EAY0

Name: Дънна платка Asus PRIME B760-PLUS, LGA1700 - 90MB1EF0-M1EAY0
Brand: Asus
SKU: PRIME B760-PLUS
Price: 124 EUR
Availability: InStock

Asus

124,00 €

Цената е с включен ДДС.

Наличност във външен склад

Банка ДСК Купи на лизинг 12 вноски по 11.01 € (21.53 лв.) Калкулатор ›

Видео карта	1 x DisplayPort; 1 x VGA port; 1 x HDMI™ port*
CPU's supported	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
Чипсет	Intel® B760 Chipset
Expansion Slots	Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports
Тип памет	4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II

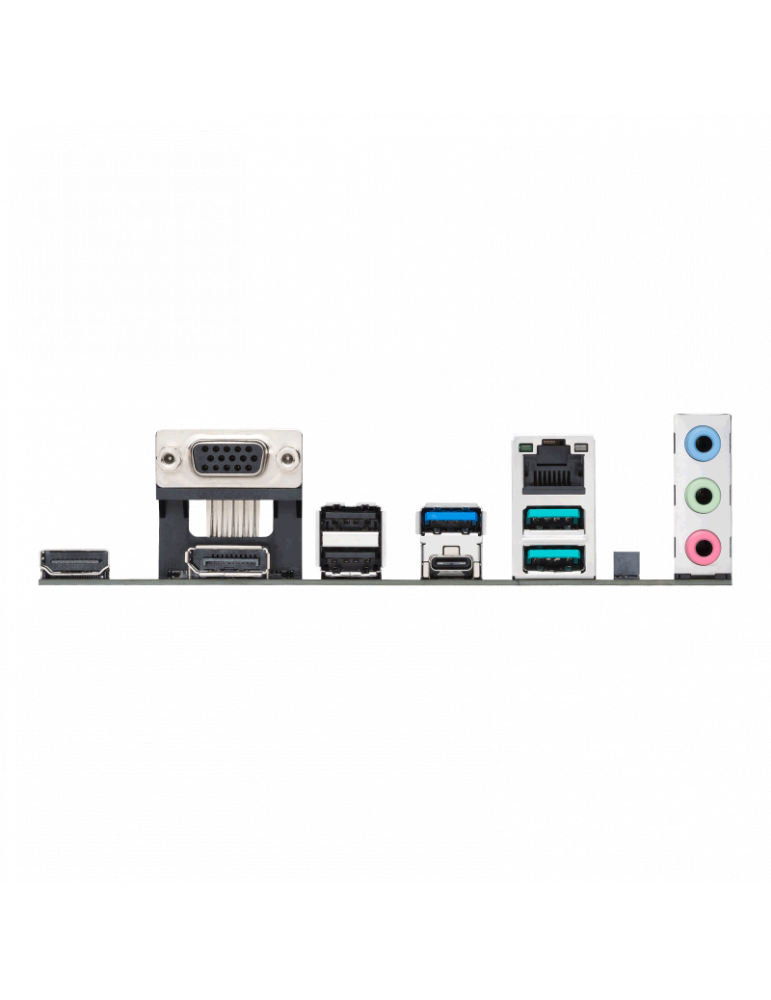

Вх/Изх	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x VGA port; 1 x HDMI™ port; 1 x Vertical M.2 slot (Key E); 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks
Конектори	1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
LAN	1 x Realtek 2.5Gb Ethernet
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Форм фактор	ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
OS	Windows® 11, Windows® 10 64-bit
Друго	Vertical M.2 slot only (Key E, CNVi & PCIe); Wi-Fi module is sold separately.
Гаранция	36 Months
