Начало Компютърни компоненти Дънни платки Дънна платка Asrock X470 Master SLI

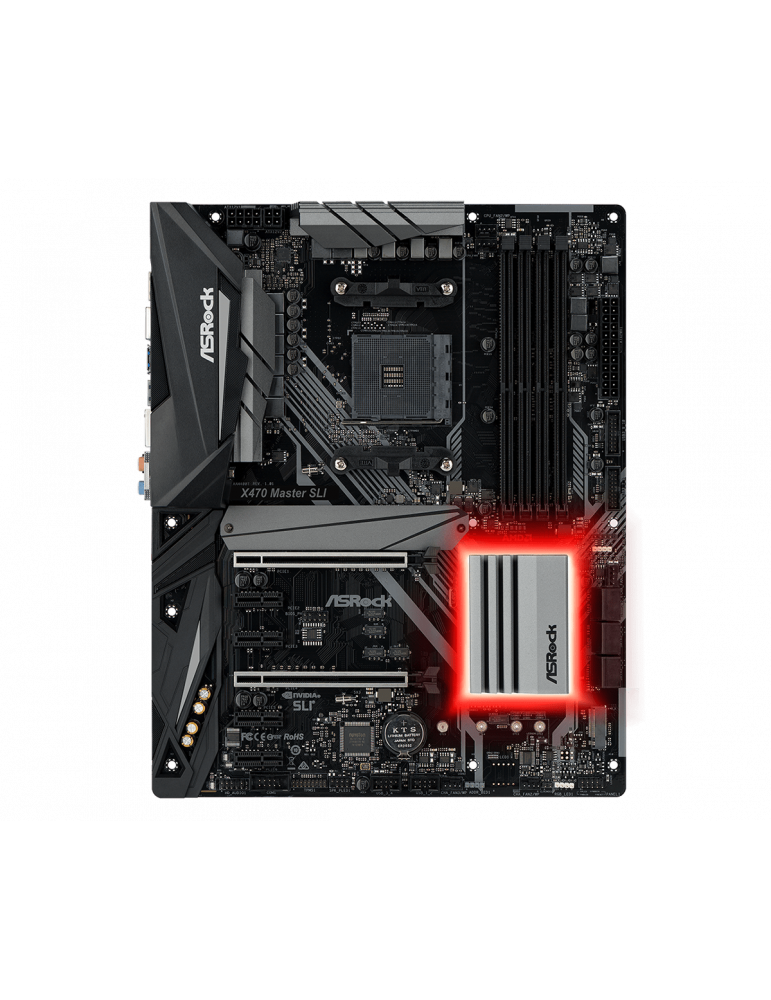

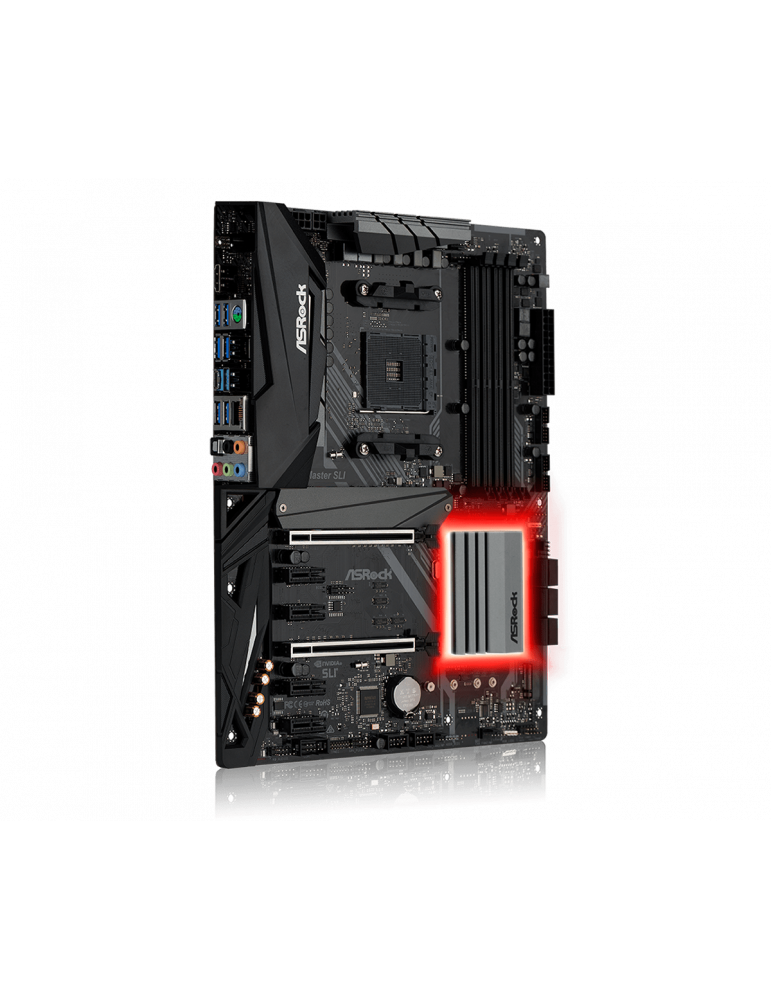

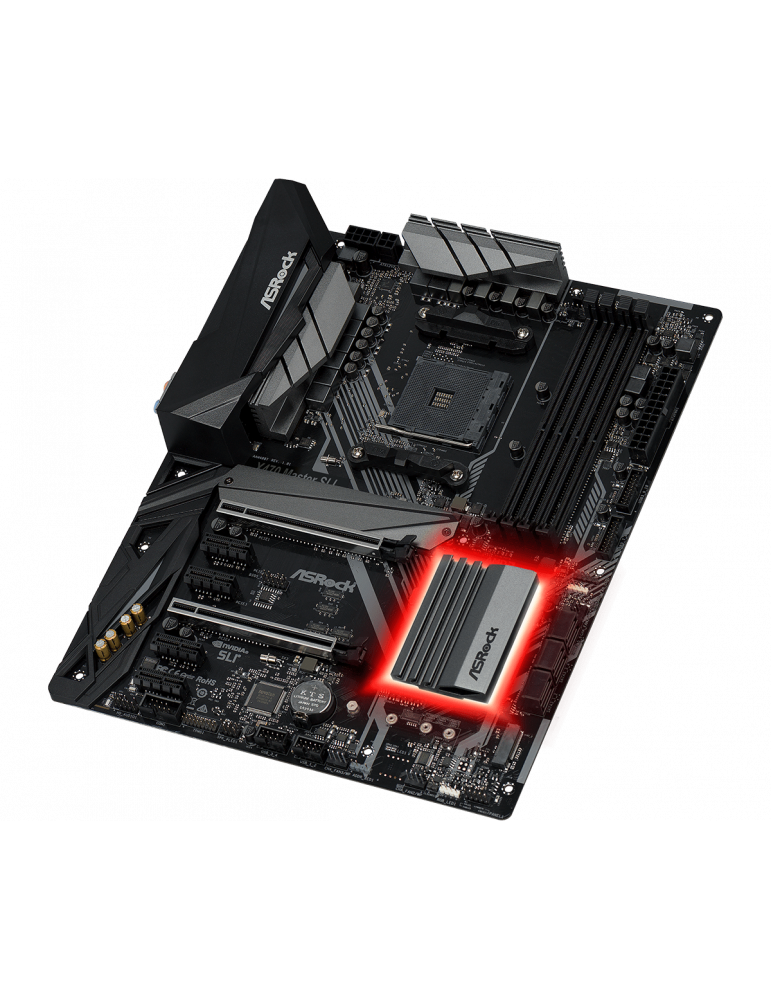

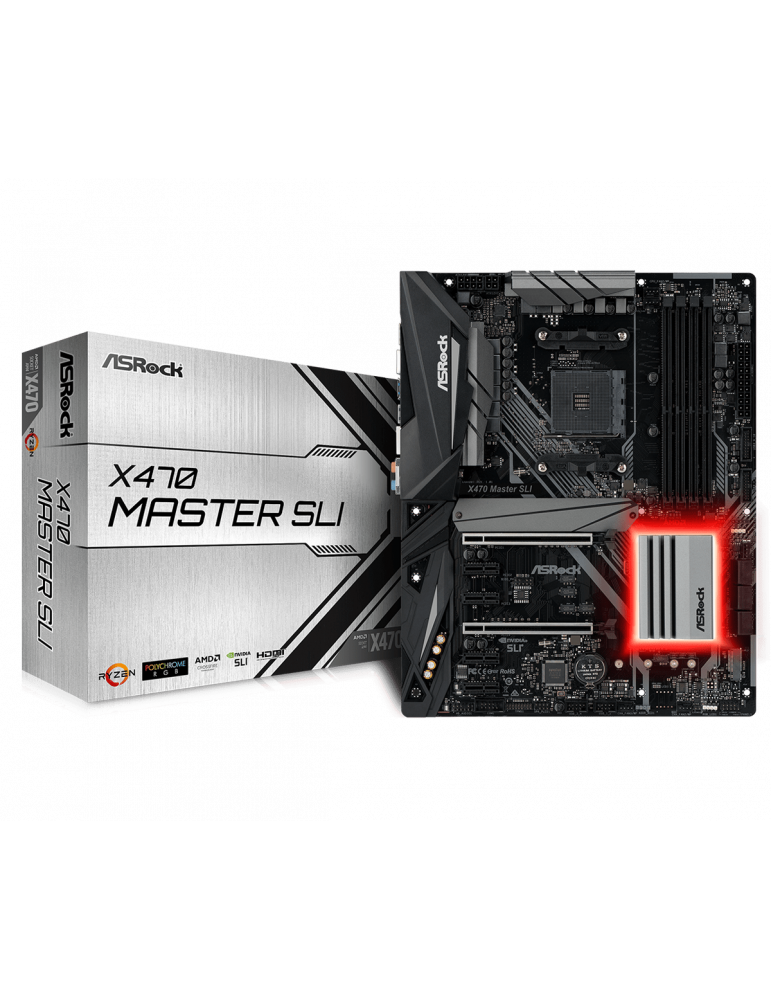

Дънна платка Asrock X470 Master SLI

Сокет: AM4
Памет: 4 x DDR4 Максимално 64GB 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 MHz
Слотове: 2 x PCIe x16, 4 x PCIe x1, 2 x M.2
USB портове: 7 x USB 3.0, 1 x USB Type-C
Видео изходи: HDMI
Размер: ATX
Гаранция: 36 месеца

  • Марка:
  • Код:
    X470_MASTER_SLI
Цена: 266.00лв
  • Гаранция:
    24 месеца

Няма наличност

Добави в желани

Детайлно описание

Уникални функции ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 45A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Процесор - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
- Digi Power design
- 12 Power Phase design
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Чипсет - AMD Promontory X470
Памет - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15μ Gold Contact in DIMM Slots
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Графика

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports 4K Ultra HD (UHD) playback with HDMI Port

*Действителната поддръжка може да варира в зависимост от процесора

Аудио - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
LAN - Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Слотове

AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))*
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*

- 4 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™**
- Supports NVIDIA® Quad SLI™ and SLI™**
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Поддържа NVMe SSD като дискове за начално зареждане

**Тази функция се поддържа само с процесори от серията Ryzen (Summit Ridge and Pinnacle Ridge).

Съхранение

- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)*

*Поддържа NVMe SSD като дискове за начално зареждане
Supports ASRock U.2 Kit

Конектор

- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 1 x AMD Fan LED Header*
- 1 x RGB LED Header**
- 1 x Addressable LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)

* Конектора на AMD Вентилатора за LED поддържа LED ленти с максимално натоварване 3А (36W) и дължина до 2,5M.

**Поддържа общо до 12V / 3A, 36W LED Strip

***Supports in total up to 5V/3A, 15W LED Strip

****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

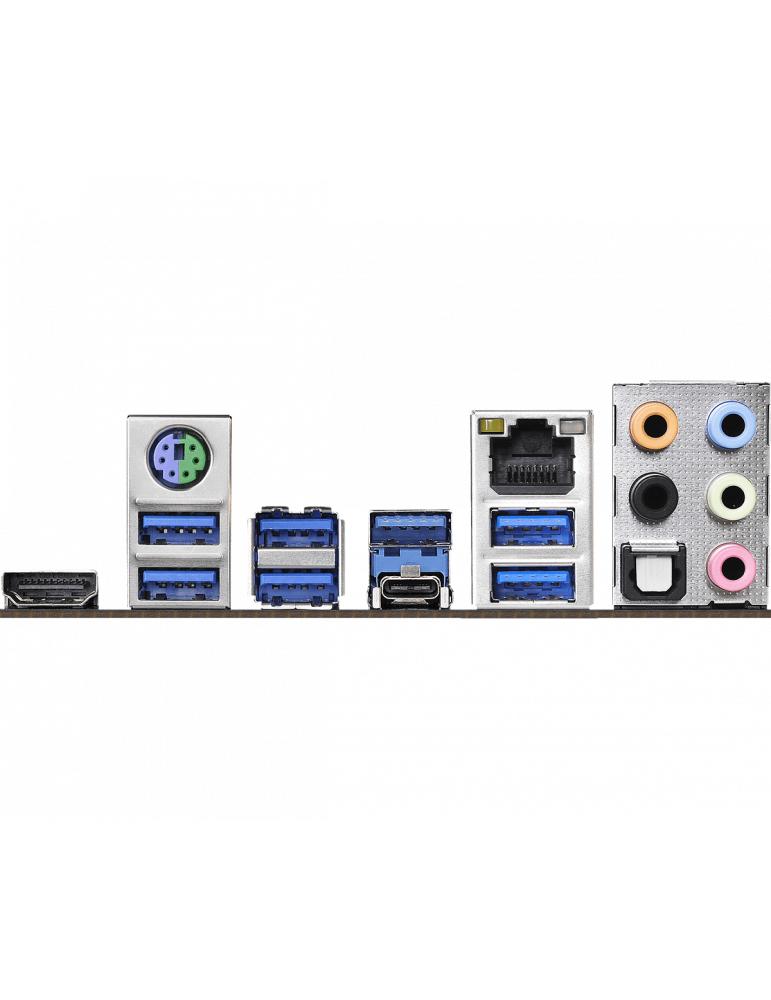

Заден панел с входове и изходи - 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Софтуер и UEFI

Software
- ASRock A-Tuning
- ASRock Polychrome RGB
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

*Тези помощни програми можете да изтеглите от Live Update & APP Shop.

CD с поддръжка - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Аксесоари - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x ASRock SLI_HB_Bridge_2S Card
- 2 x Screws for M.2 Sockets
Хардуерен монитор - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
Форм фактор - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
OC - Microsoft® Windows® 10 64-bit
Сертификати - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Гаранция 36 месеца
