Сокет: LGA1151 съвместим с 8-мо поколение процесори Intel Coffee Lake
Памет: 2 x DDR4 Максимално 32GB 2666/ 2400/ 2133 MHz
Слотове: 1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1, 1 x M.2
USB портове: 2 x USB 3.1, 4 x USB 2.0
Видео изходи: DVI-D, HDMI, D-Sub
Размер: Micro ATX
Гаранция: 36 месеца
Цената е с включен ДДС
Условия за доставка
| PROCESSOR | Supports 8th Gen Intel® Core™ processors, Pentium® Gold and Celeron® processors for Socket LGA1151 |
| CHIPSET | Intel® H310 Chipset |
| MEMORY | 2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| SLOTS | 1 x PCIe 3.0 x16 slot 2 x PCIe 3.0 x1 slotss |
| ONBOARD GRAPHICS | 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz1 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1 Supports up to 2 displays simultaneously |
| STORAGE | 4 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
| USB | 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
| AUDIO | Realtek® ALC887 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Intel I219-V Gigabit LAN controller |
| INTERNAL CONNECTORS | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |

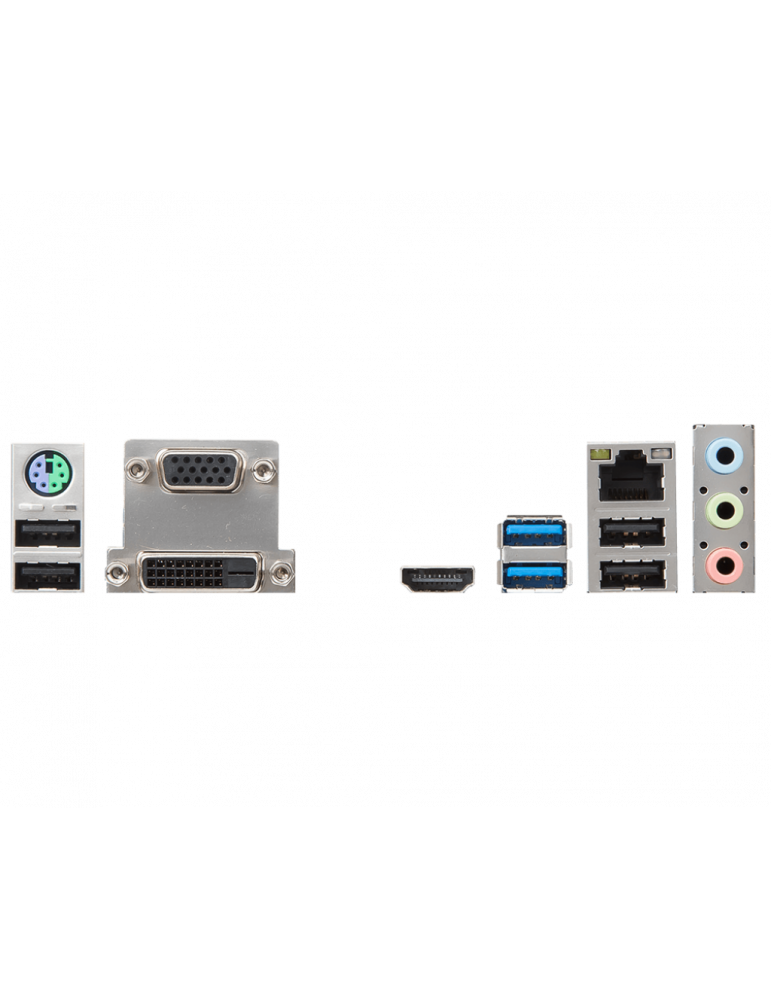

| BACK PANEL PORTS | PS/2 Combo Port VGA Port HDMI Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port USB 2.0 Port |
| DIMENSIONS | 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) m-ATX Form Factor |
| MOUNTING | 6 mounting holes |
| Гаранция | 36 месеца |
