Начало Компютърни компоненти Дънни платки Дънна платка Asrock H110M-HDV R3.0, сокет LGA1151

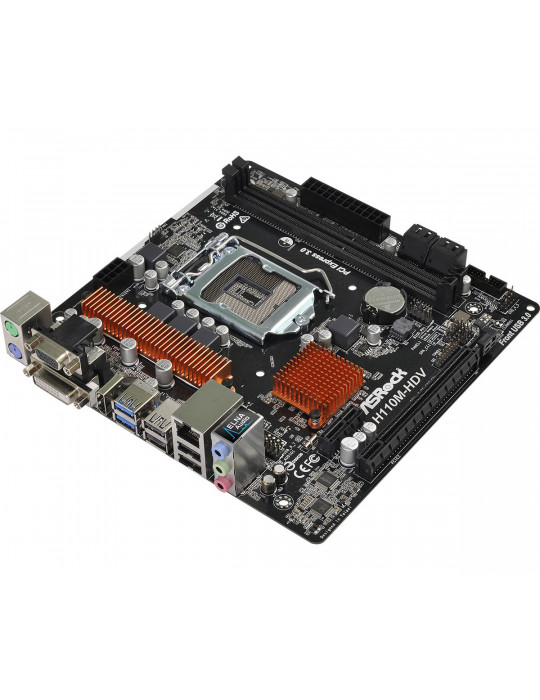

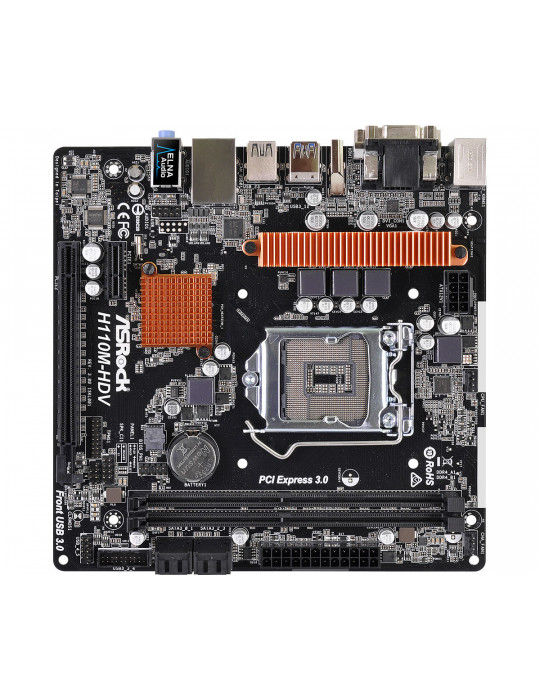

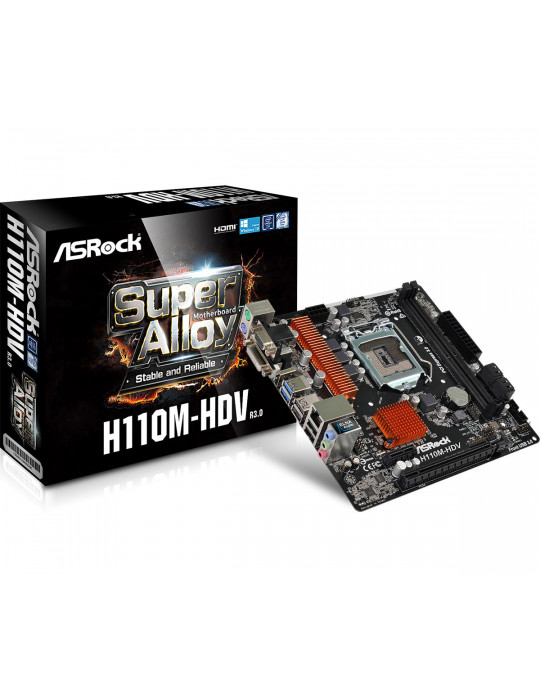

Дънна платка Asrock H110M-HDV R3.0, сокет LGA1151

  • Марка:
  • Код:
    ASROCK H110M-HDV R3.0/LGA1151

Поръчка без регистрация

Само попълнете 4 полета
Ние ще се свържем с вас в рамките на работния ден.
Цена: 102.00лв
  • Гаранция:
    24 месеца

Наличност в магазина

Възможни са разлики между цените онлайн и във физическите обекти на фирмата. Посочените цени са с ДДС.

 070020048



 Безплатна доставка над 200лв



Добави в желани

Детайлно описание

Manufacturer ASROCK
Mnfr Part # -
Model H110M-HDV
Socket LGA1151
Graphics - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530; - Pixel Shader 5.0, DirectX 12; - Max. shared memory 1024MB**; - Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously; - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports Accelerated Media Codecs: HEVC, VP8, VP9; - Supports HDCP with DVI-D and HDMI Ports; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
CPU's supported - Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151); - 4 Power Phase design; - Supports CPU up to 95W; - Supports Intel® Turbo Boost 2.0 Technology
Chipset Intel® H110
Expansion Slots - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; - 1 x PCI Express 2.0 x1 Slot
Storage - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Memory type - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 2133 non-ECC, un-buffered memory; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 32GB*; - Supports Intel® Extreme Memory Profile (XMP) 2.0

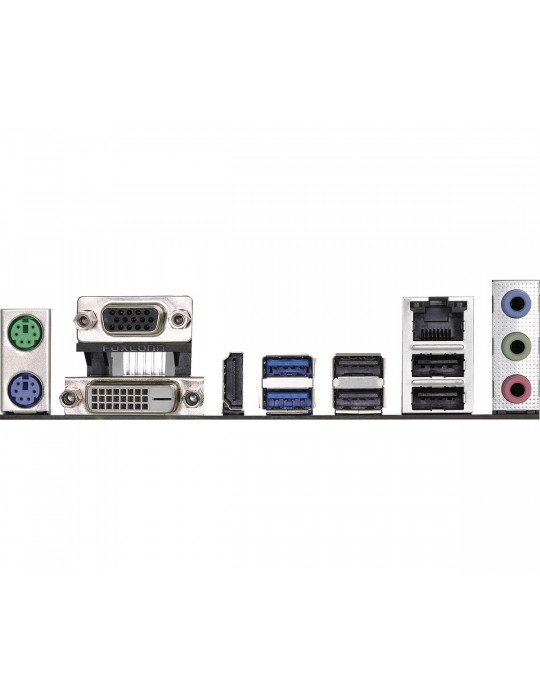

I/O - 1 x PS/2 Mouse Port; - 1 x PS/2 Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*; - 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors - 1 x TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 1 x Chassis Fan Connector (4-pin)*; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*; - Supports Surge Protection (ASRock Full Spike Protection); - ELNA Audio Caps
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111C; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection (ASRock Full Spike Protection); - Supports LAN Cable Detection; - Supports PXE
BIOS - 64Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 5.0 Compliant wake up events; - SMBIOS 2.7 Support; - DRAM, PCH 1.0V Voltage Multi-adjustment
Form Factor - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm; - Solid Capacitor design
OS - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
Other -
Warranty 36 months
