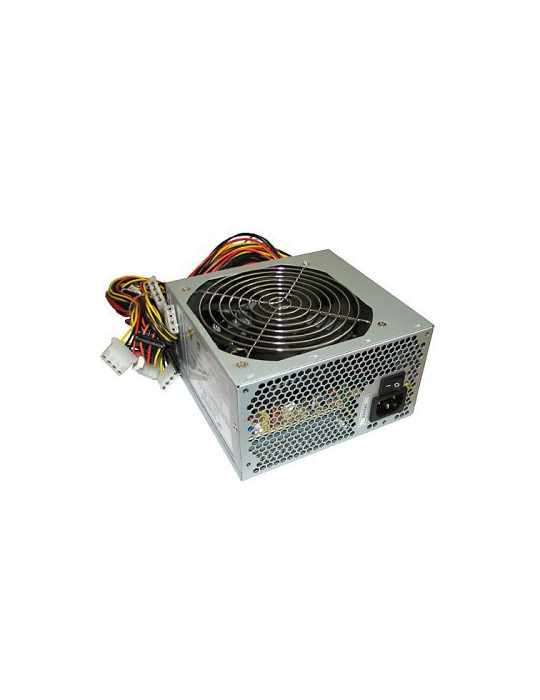

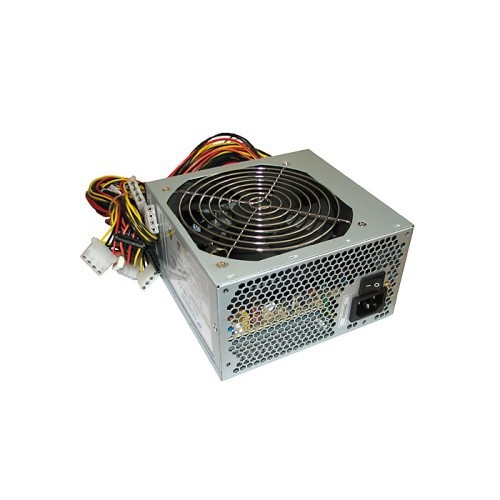

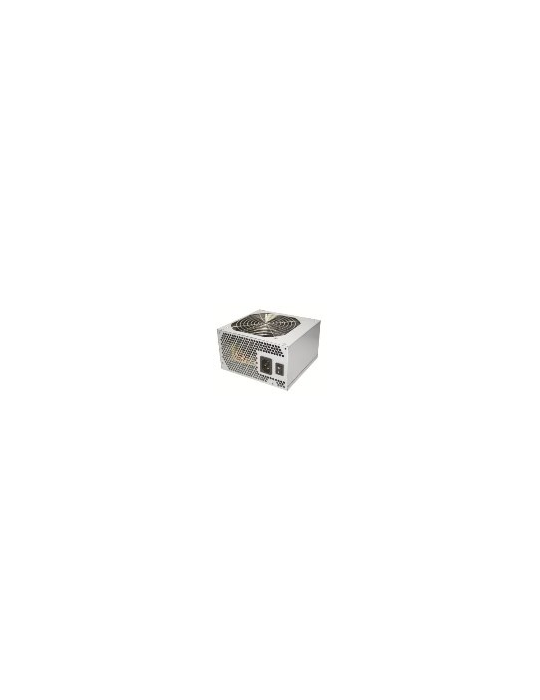

Захранване 500W Fortron FSP500-60GHN
-
Код:PSU FORTRON FSP500-60GHN /500W
Поръчка без регистрация
Само попълнете 4 полета
Цена: 128.00лв
Детайлно описание
| DC Output | Output Rise Time:+ 3.3Vdc : 20ms Maximum; + 5Vdc : 20ms Maximum; + 12Vdc : 20ms Maximum; + 5Vsb : 20ms Maximum; - 12Vdc : 20ms Maximum. |
| Fan Information | Fan size: 120 mm |
| Features | MTBF:The power supply reliability,when calculated by MIL-HDBK-217;latest revision, are exceed 100,000 hours with all output at maximum load and an ambient temperature of 25℃. |
| Model | FSP500-60GHN |
| Manufacturer | FORTRON |
| Form Factor | ATX 12V |
| AC Input | Input Frequency:47 ~ 63 Hz; Input Current:115V@ < 7 Amps - rms,230V@ < 3.5 Amps - rms; Input Voltage:100~240Vac. |
| Cable Information | Power cable: No |
| Safety and Environmental | CE,FCC,TUV,UL/cUL; Temperature Range:Operating : 10 to +40℃, Storage :-20 to +80℃; Humidity Operating : 85% to % RH, Non-condensing; Storage : 95% to % RH, Non-condensing. |
| PFC Type | Active |
| Connectors | ATX12V 24 Pin x 0; ATX12V 20+4 Pin x 1; CPU 8 Pin x 0; CPU 4+4 Pin x 1; CPU 4 Pin x 0; PCI-E 2.0 6+2(8) Pin x 0; PCI-E 2.0 6 Pin x 1; S-ATA x 6; Molex 4 Pin x 1; Floppy 4 Pin x 1; Fan 2 Pin x 0. |
| Mnfr Part # | SPA5003303 |
| Dimensions | 140 × 150 × 86 mm |
| Warranty | 24 Months |
