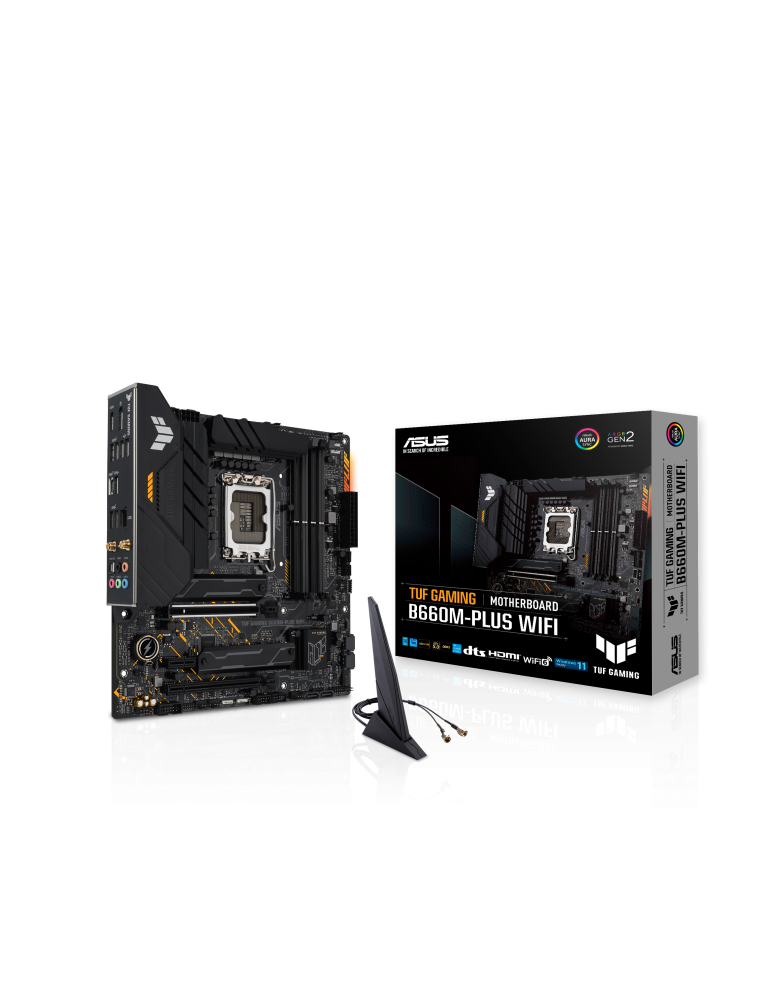

Дънна платка Asus TUF GAMING B660M-PLUS WIFI, LGA1700 - 90MB1AZ0-M1EAY0
TUF GAMING B660M-PLUS WIFI
36 месеца
417,00 лв.
Условия за доставка
Вземи желания продукт сега, избери подходяща за теб схема на изплащане:
Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!
Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
Поръчка без регистрация
Само попълнете 4 полета| Видео карта | 1 x DisplayPort**; 1 x HDMI® port*** |
| CPU's supported | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Чипсет | Intel® B660 Chipset |
| Expansion Slots | Intel® 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® B660 Chipset*; 1 x PCIe 3.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Intel® 12th Gen processors support PCIe 4.0 x4 mode.; Intel® B660 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Тип памет | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II |

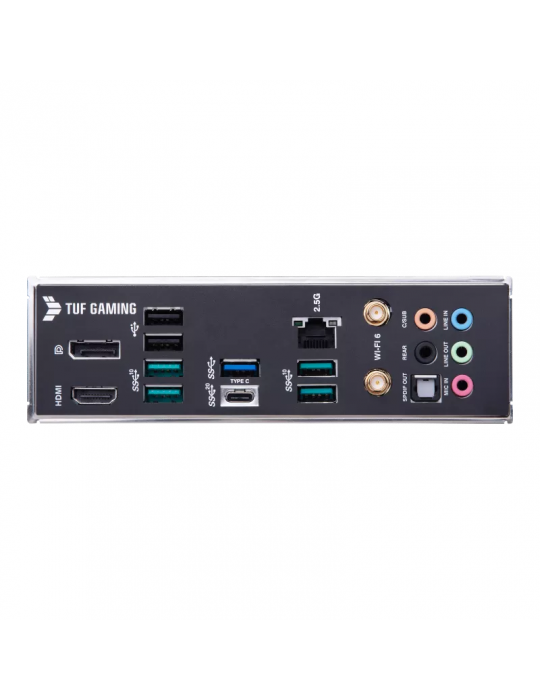

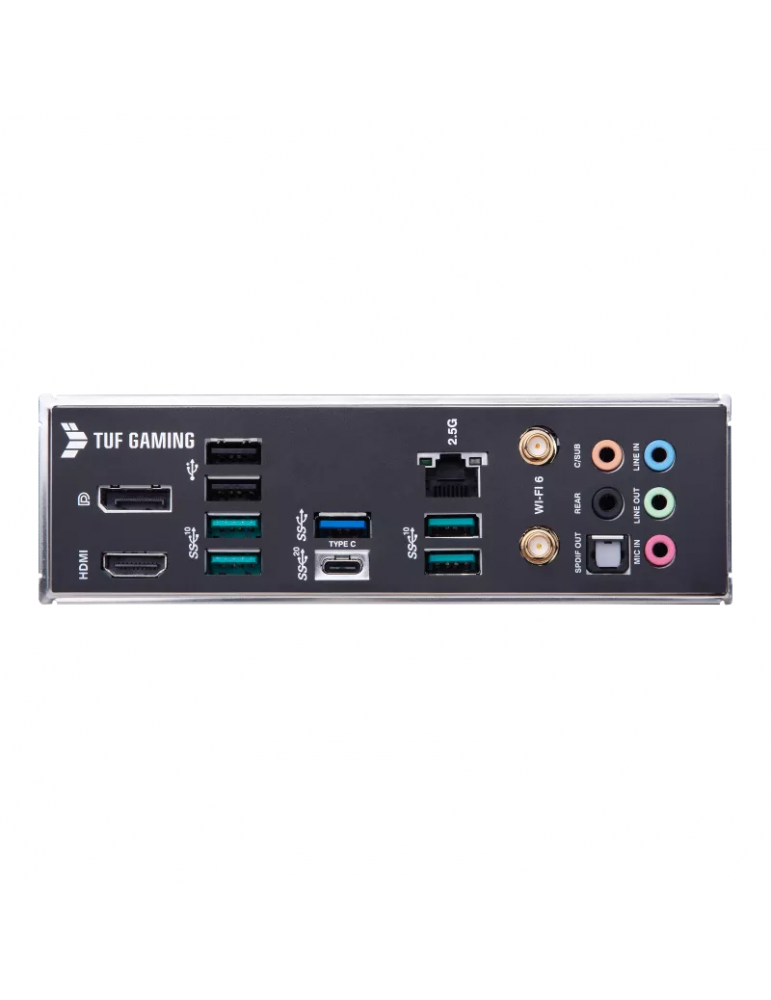

| Вх/Изх | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 4 x USB 3.2 Gen 2 ports (4 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port |
| Конектори | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x AURA RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Power pre-regulator reduces power input noise to ensure consistent performance; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers |
| LAN | 1 x Realtek 2.5Gb Ethernet; TUF LANGuard |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Форм фактор | mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| OS | Windows® 11 64-bit, Windows® 10 64-bit |
| Друго | Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2* |
| Гаранция | 36 Months |
TUF GAMING B660M-PLUS WIFI
Техническо описание
- Asus
- LGA1700
- Intel B660
- Intel
- DDR5
-
Micro ATX
mATX - 4
- 36 месеца
-
Display Port
HDMI
RJ-45 LAN
SPDIF
USB 2
USB 3
USB Type C
