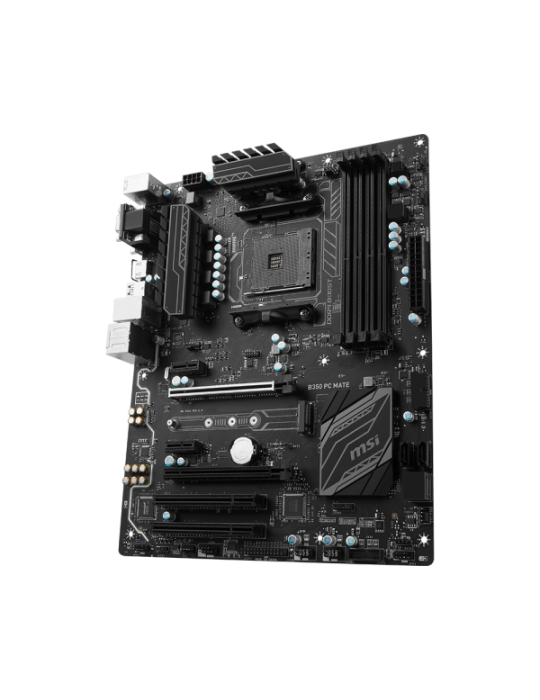

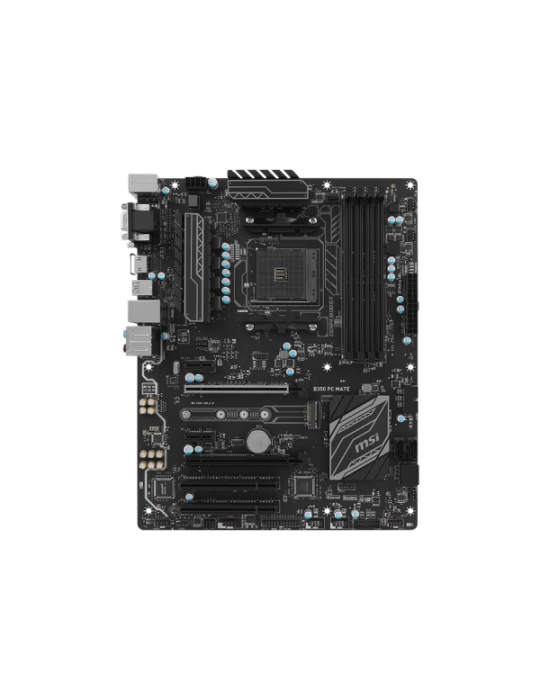

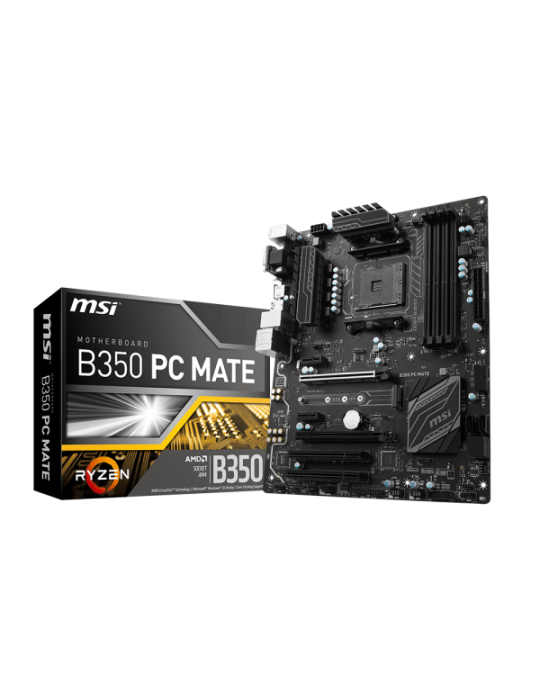

Дънна платка MSI B350 PC Mate, сокет AM4

Дънна платка MSI B350 PC Mate, сокет AM4

  • Няма наличност
Дънна платка MSI B350 PC Mate, сокет AM4
MSI
MSI B350 PC MATE /AM4
  не е избрано

158,00 лв.

няма наличност

  Цената е с включен ДДС
  Условия за доставка

Вземи желания продукт сега, избери подходяща за теб схема на изплащане:

Не е нужно да избираш, може да имаш всичко!
Купи на равни вноски стоки от 100 до 30000 лв., избери най-подходящата за теб вноска.
С TBI Pay, пазаруването е лесно, гъвкаво и напълно онлайн.
Контролът е в твоите ръце, не чакай.
Пазарувай!

Виж схемите, които предлагаме
Добави в количката
Заяви и купи сега
Откажи
Описание
Socket AM4
Graphics 1 x VGA port, supports a maximum resolution of 2048x1280@60HZ (RB)*;
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*;
1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz*;
* Only support when using a 7th Gen A-series/ Athlon™ processor.;
* Maximum shared memory of 2048 MB.
CPU's supported Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4;
* This function will be supported depend on the CPU.
Chipset AMD® B350 Chipset
Expansion Slots 1 x PCIe 3.0 x16 slot (PCI_E2):
Supports x 16 speed with RYZEN Series Processors;
Supports x 8 speed with 7th Gen A-series/ Athlon™ processors;
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*;
2 x PCIe 2.0 x1 slots;
2 x PCI slots;
* PCI_E4 slot will support PCIe 2.0 x2 only, when installing device in any PCIe x1 slot.
Storage AMD® B350 Chipset;
4 x SATA 6Gb/s ports*:
Support RAID 0, RAID 1 and RAID 10;
1 x M.2 port (Key M):
Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s;
Supports 2242/ 2260 /2280/ 22110 storage devices.
Memory type 4 x DDR4 memory slots, support up to 64GB:
Support DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz*;
Dual channel memory architecture;
* 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz.;
Please refer www.msi.com for more information on compatible memory.

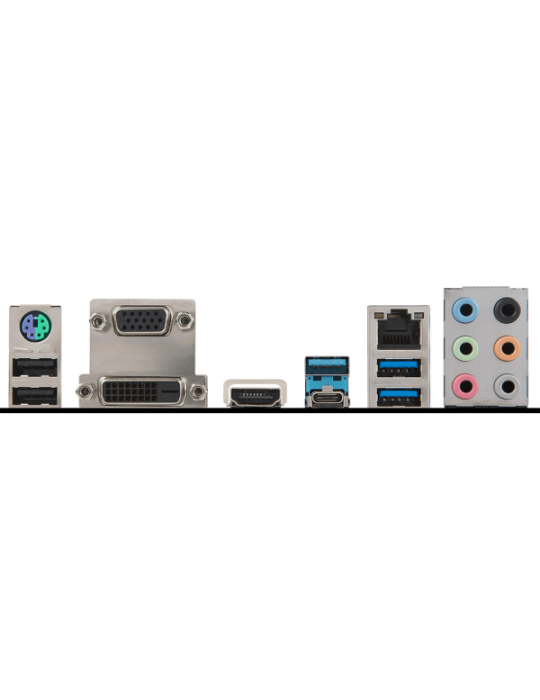

I/O 1 x PS/2 keyboard/ mouse combo port;
2 x USB 2.0 Type-A ports;
1 x VGA port
1 x DVI-D port;
1 x HDMI™ port;
3 x USB 3.1 Gen1 Type-A ports;
1 x USB 3.1 Gen1 Type-C port;
1 x LAN (RJ45) port;
6 x OFC audio jacks.
Connectors 1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
4 x SATA 6Gb/s connectors;
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports);
2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports);
1 x 4-pin CPU fan connector;
1 x 4-pin water-pump-fan connector;
4 x 4-pin system fan connectors;
1 x 4-pin RGB LED strip connector;
1 x Serial port connector;
1 x Parallel port connector;
1 x TPM module connector;
1 x Front panel audio connector;
2 x System panel connectors;
1 x Chassis Intrusion connector;
1 x Clear CMOS jumper.
Audio Realtek® ALC892 Codec:
7.1-Channel High Definition Audio
LAN 1 x Realtek® 8111H Gigabit LAN controller
BIOS Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
Form Factor 30.4 cm x 24.3 cm;
ATX Form Factor
OS Ready for Windows 10
Other 9 mounting holes
Warranty 36 Months
Подробности за продукта
MSI B350 PC MATE /AM4

Техническо описание
